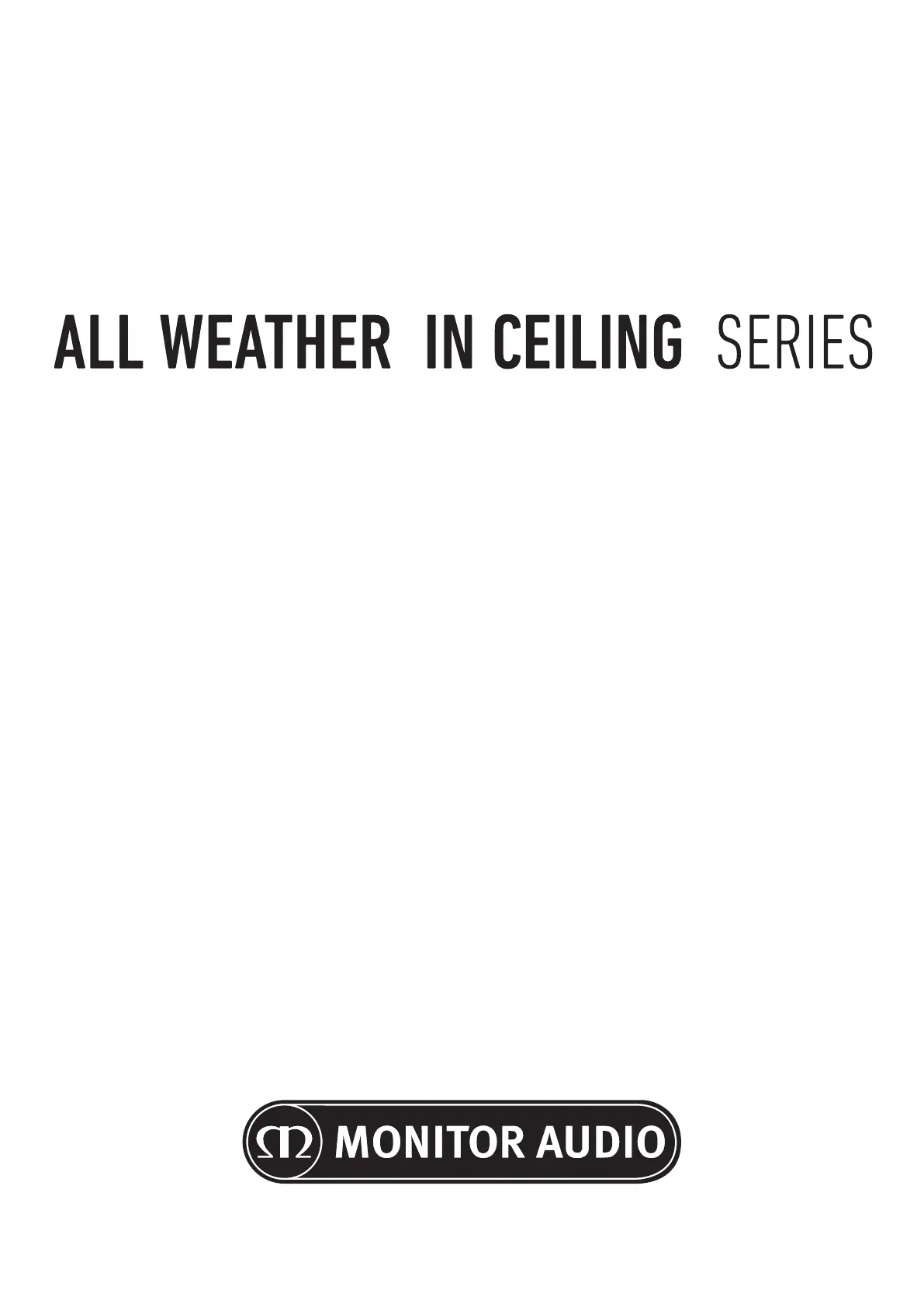

INSTALLATION GUIDE
MANUALE DEL PRODOTTO E DI INSTALLAZIONE
GUIDE PRODUIT & INSTALLATION
PRODUKT- UND INSTALLATIONSHANDBUCH
GUÍA DE INSTALACIÓN Y DEL PRODUCTO
GUIA DO PRODUTO E INSTALAÇÃO
PRODUCT- EN INSTALLATIEHANDLEIDING
产 品 和 安 装 指 南
РУКОВОДСТВО ПО УСТАНОВКЕ И ЭКСПЛУАТАЦИИ
インスタレーションガイド
Introduction
Born from the incredible success of the Custom Install and Climate ranges, the new All Weather In Ceiling Series has the same stealthy installation of our
Custom Install ranges whilst oering a weatherproof construction for installation in more extreme environments such as the bathroom, garden, sauna
or even boats.
In the All Weather In Ceiling Series you will nd options for mono or stereo sound from an individual speaker, all featuring our core speaker technologies
and as always, our renowned design and construction quality.
Painting the Grilles
NOTE: If choosing to paint the grille, we recommend you follow these simple steps:
1. Remove the membrane scrim from the inside of the grille.
2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint is easier to apply or use a
stippling action when brushing to avoid blocking the holes of the grille.
3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.
4. Fit the grille to the speaker (s).
Prior to Fitting the All Weather In Ceiling Series Speakers
CAUTION: These Custom Install loudspeakers can only be xed into plasterboard (dry-lined) or suspended ceilings/ walls between 10mm (”)
- 27mm (11/16”). Solid wall installation will require channelling out and frame work constructed to provide a structure for the Tri-Grip® dog legs
to clamp to. For safety reasons, if you are unsure of your ability to provide a secure and safe xing, do not attempt to x these speakers, please
obtain the services of a competent and qualied trades person.
CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting the speaker apertures. Work
from secure steps and avoid trailing wires.
Over Tightening Warning
Attention installers:
Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the
clamping mechanism on any in ceiling/ in wall speaker can result in damage
to the speaker mounting hardware, ceiling/ wall or speaker frame, and/ or
deection in the speaker frame during installation.
If you notice any of the above during installation, you have over tightened the
Tri-Grip dog leg. Back o the mounting screw until deection is reduced to
allow the product to sit rmly against the ceiling / wall.
Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening
the Tri-Grip dog leg screws.
When using a cordless screwdriver/ drill to install this product ensure the
clutch is set to it’s lowest setting to avoid from over-tightening and damaging
the mounting hardware.
Speaker Controls
High Frequency Level Adjust
With the HF setting on the ‘0’ position, the speaker will give you a neutral sound with no additional adjustments made. Switching to the ‘+3db’ position
will give the high frequencies a boost, giving you more clarity and presence in the treble while switching to the ‘-3db’ will do the opposite. This position
can be useful if you want more prominence in the bass frequencies.
NOTE: As with all audio, the settings you choose to use are subject to your own personal tastes and the aect your room has on the acoustics.
Experimentation is strongly advised to nd the best setting for you.
Warranty
Both the craftsmanship and the performance of this product is covered by the manufacturer’s warranty against manufacturing defects provided that the
product was supplied by an authorised Monitor Audio retailer under the consumer sale agreement. For the period of cover please refer to the product
page on our website: monitoraudio.com for the product you have purchased.
When purchasing Monitor Audio products, please keep your receipt of purchase safe, as this validates your warranty.
ENGLISH
monitoraudio.com 1
All Weather In Ceiling Series2
ENGLISH
1Draw around template and mark centre lines if necessary.
Tri-Grip x 3
= 5Kgf/cm; 4.34 lbf/inch; 0.5 NM
88.5 mm (3
1/2 ”)
211mm (8
1/4”)
AWC265 & AWC265-T2
Template
Cut around marked line.
2
3Connect speaker cables by pushing down on the
terminals and clamping the bare wire in the through
hole. Once connected close the protective cover.
5Tighten the 3 Tri-Grip screws and replace the protective
screw covers.
See over tightening warning.
6
Fitting the All Weather In Ceiling Series Loudspeakers
4Guide speaker into cut out.
Fit grilles. They are held in place magnetically and
should ‘snap’ into place.
Produktspezifikationen
Marke: | Monitor Audio |
Kategorie: | Speaker |
Modell: | AWC280-T2 |
