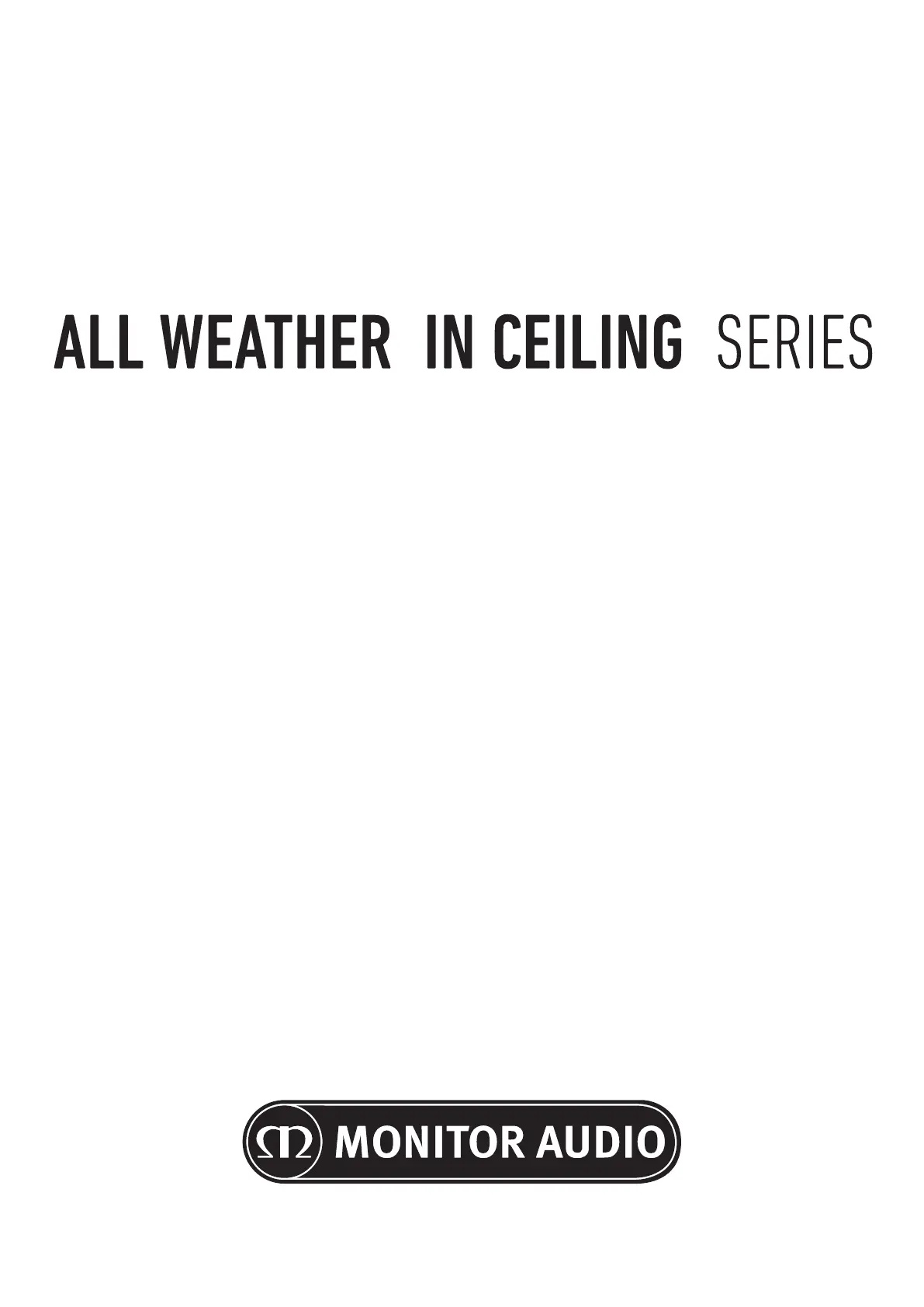

INSTALLATION GUIDE

MANUALE DEL PRODOTTO E DI INSTALLAZIONE

GUIDE PRODUIT & INSTALLATION

PRODUKT- UND INSTALLATIONSHANDBUCH

GUÍA DE INSTALACIÓN Y DEL PRODUCTO

GUIA DO PRODUTO E INSTALAÇÃO

PRODUCT- EN INSTALLATIEHANDLEIDING

产品和安装指南

РУКОВОДСТВО ПО УСТАНОВКЕ И ЭКСПЛУАТАЦИИ

インスタレーションガイド

 

 

Introduction

Born from the incredible success of the Custom Install and Climate ranges, the new All Weather In Ceiling Series has the same stealthy installation of our

Custom Install ranges whilst oering a weatherproof construction for installation in more extreme environments such as the bathroom, garden, sauna

or even boats.

In the All Weather In Ceiling Series you will nd options for mono or stereo sound from an individual speaker, all featuring our core speaker technologies

and as always, our renowned design and construction quality.

Painting the Grilles

NOTE: If choosing to paint the grille, we recommend you follow these simple steps:

1. Remove the membrane scrim from the inside of the grille.

2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint is easier to apply or use a

stippling action when brushing to avoid blocking the holes of the grille.

3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.

4. Fit the grille to the speaker (s).

Prior to Fitting the All Weather In Ceiling Series Speakers

CAUTION: These Custom Install loudspeakers can only be xed into plasterboard (dry-lined) or suspended ceilings/ walls between 10mm (”)

- 27mm (11/16”). Solid wall installation will require channelling out and frame work constructed to provide a structure for the Tri-Grip® dog legs

to clamp to. For safety reasons, if you are unsure of your ability to provide a secure and safe xing, do not attempt to x these speakers, please

obtain the services of a competent and qualied trades person.

CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting the speaker apertures. Work

from secure steps and avoid trailing wires.

Over Tightening Warning

Attention installers:

Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the

clamping mechanism on any in ceiling/ in wall speaker can result in damage

to the speaker mounting hardware, ceiling/ wall or speaker frame, and/ or

deection in the speaker frame during installation.

If you notice any of the above during installation, you have over tightened the

Tri-Grip dog leg. Back o the mounting screw until deection is reduced to

allow the product to sit rmly against the ceiling / wall.

Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening

the Tri-Grip dog leg screws.

When using a cordless screwdriver/ drill to install this product ensure the

clutch is set to it’s lowest setting to avoid from over-tightening and damaging

the mounting hardware.

Speaker Controls

High Frequency Level Adjust

With the HF setting on the ‘0’ position, the speaker will give you a neutral sound with no additional adjustments made. Switching to the ‘+3db’ position

will give the high frequencies a boost, giving you more clarity and presence in the treble while switching to the ‘-3db’ will do the opposite. This position
