Seite 1/44

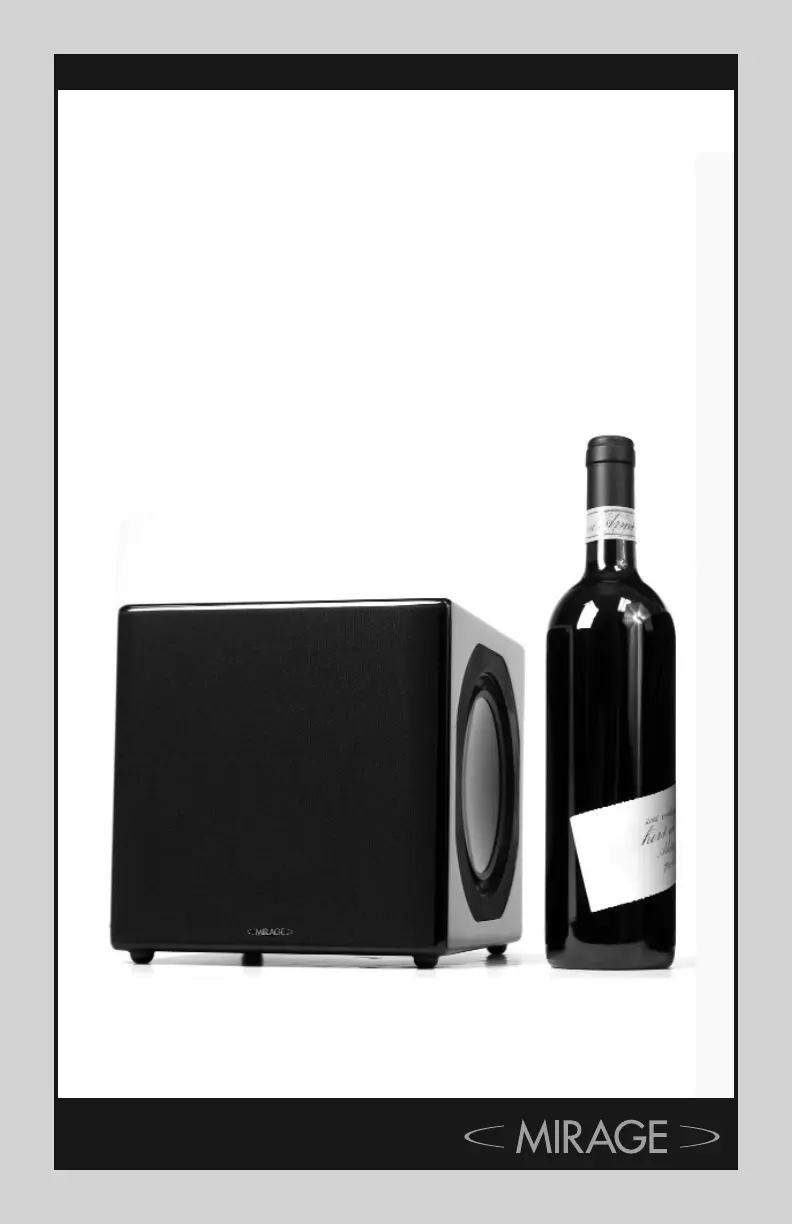

Mini Subwoofers
o w n e r s m a n u a l
owners m a n u al
IMPORTANT SAFETY
INSTRUCTIONS –
READ CAREFULLY!
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15 Do not expose this apparatus to dripping or
splashing and ensure that no objects filled with
liquids, such as vases, are placed on the apparatus.
16 To completely disconnect this apparatus from the
AC Mains, disconnect the power supply cord plug
from the AC receptacle.
17 The mains plug of the power supply cord shall
remain readily operable.
WARNING : To reduce the risk of fire or electric
shock , do not expose this apparatus to rain or
moisture .
INTRODUCTION
Congratulations on your purchase of MIRAGE
®
speakers! Proprietary technology and high quality
manufacturing will allow you to enjoy the most natural
and accurate music reproduction for many years. The
advice offered in this manual is aimed at helping you
maximize and maintain peak performance, and
therefore, your listening satisfaction. Please take the
time to read all of the instructions contained in this
manual to make certain your system is properly
installed and functioning correctly.
COMPANY BACKGROUND
MIRAGE speakers are the result of extensive research
into accurate sonic reproduction and represent the
leading edge in speaker design and performance. The
finest components and cabinet materials combined
with sophisticated manufacturing and quality control
procedures ensure many years of exceptional
performance and listening pleasure.
2
The lightning flash with arrowhead symbol.
Within an equilateral triangle is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the products
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
owners m a n u al
BREAK-IN PERIOD
We strongly advise that you resist the temptation to
play the MIRAGE speakers to their full capabilities or
experiment with critical placement and listening until
they have been properly broken in. This process should
last approximately 50 hours. This can be easily be done
by putting your compact disc player on Repeat mode,
while playing a CD with a wide dynamic range at
normal listening levels.
CABINET CARE
Great care and craftsmanship has gone into the
construction and finish of the cabinet. Periodically use a
soft, dry cloth to remove dust or fingerprints. Do not
use paper towels or other abrasive materials as it may
damage the finish.
NOTE: Please retain the carton and packing
material for your MIRAGE products, to protect
them in the event of a move or if they need to
be shipped to a service center. Product received
damaged by a service center that has been
shipped by the end user in other than the
original packaging will be repaired, refurbished
and properly packaged for return shipment, at
the end user's expense.
SUBWOOFER PLACEMENT
The placement of your new MIRAGE subwoofer is
critical to its performance. The three most common
locations include: in the corner of the room (which can
result in a boomy or exaggerated low frequency
response), placement along one wall but out of the
corner (moderate bass performance with increased
fidelity over corner placement), or alongside a front
speaker (creating a better blend with the front speaker,
but sacrificing overall volume). Experimentation with
subwoofer placement is highly encouraged, as slight
adjustments can create large benefits in sound
reproduction. To further test subwoofer placement,
install the subwoofer temporarily in your main listening
position and while playing a familiar piece of music,
walk around the listening room until you find the best
sounding position. This is a possible location for the
subwoofer to be placed.
TERMINOLOGY AND
CONTROLS
ePOWER MODE – This switch can be set to either
On or Auto. If the switch is in the On position, it
will constantly remain on. If the switch is set to the
Auto position, when a signal is present the
subwoofer will turn on and will automatically turn
off several minutes after a signal is no longer
present.
rVOLUME LEVEL – This knob can be adjusted to
control the level of output from your subwoofer.
The level chosen should allow the subwoofer to
blend its output with that of the rest of your audio
system.
tPHASE – This switch allows for the adjustment of
the phase of the subwoofer, in relation to the
speakers used in your system, from 0 to +360
degrees.
uLOW-PASS FILTER – This control allows for the
adjustment of the low-pass filter. Adjustments can
infinitely be made from 50HZ to 200Hz. This will
determine the highest frequency that the
subwoofer will reproduce. When using an external
filter (in your home theater receiver) the internal
filter can be bypassed by turning the knob
completely to the right.
iLINE IN/SUB IN – These inputs are an RCA type
LFE/stereo/mono input. If you are connecting your
subwoofer to a pre-amp/processor with a LFE or
Subwoofer pre-amp output, connect a single RCA
cable to the LFE/Left input.
oWA PORT – For future use.
pPOWER CORD CONNECTOR – Connect the power
cord from your AC outlet to this input. Connecting
your subwoofer to a surge protector or line
conditioner is always recommended. Do not
connect the power cord to the switched or
unswitched outlet of your receiver as this could
damage your subwoofer and receiver.
aAC MAINS – Turn the main power on/off with
the AC MAINS switch.
sSTATUS INDICATOR – The LED found on the
amplifier panel will illuminate in blue when the
subwoofer is functioning. If the unit is in Auto
mode and is not receiving a signal, the light will
remain off.
3
