Seite 1/13

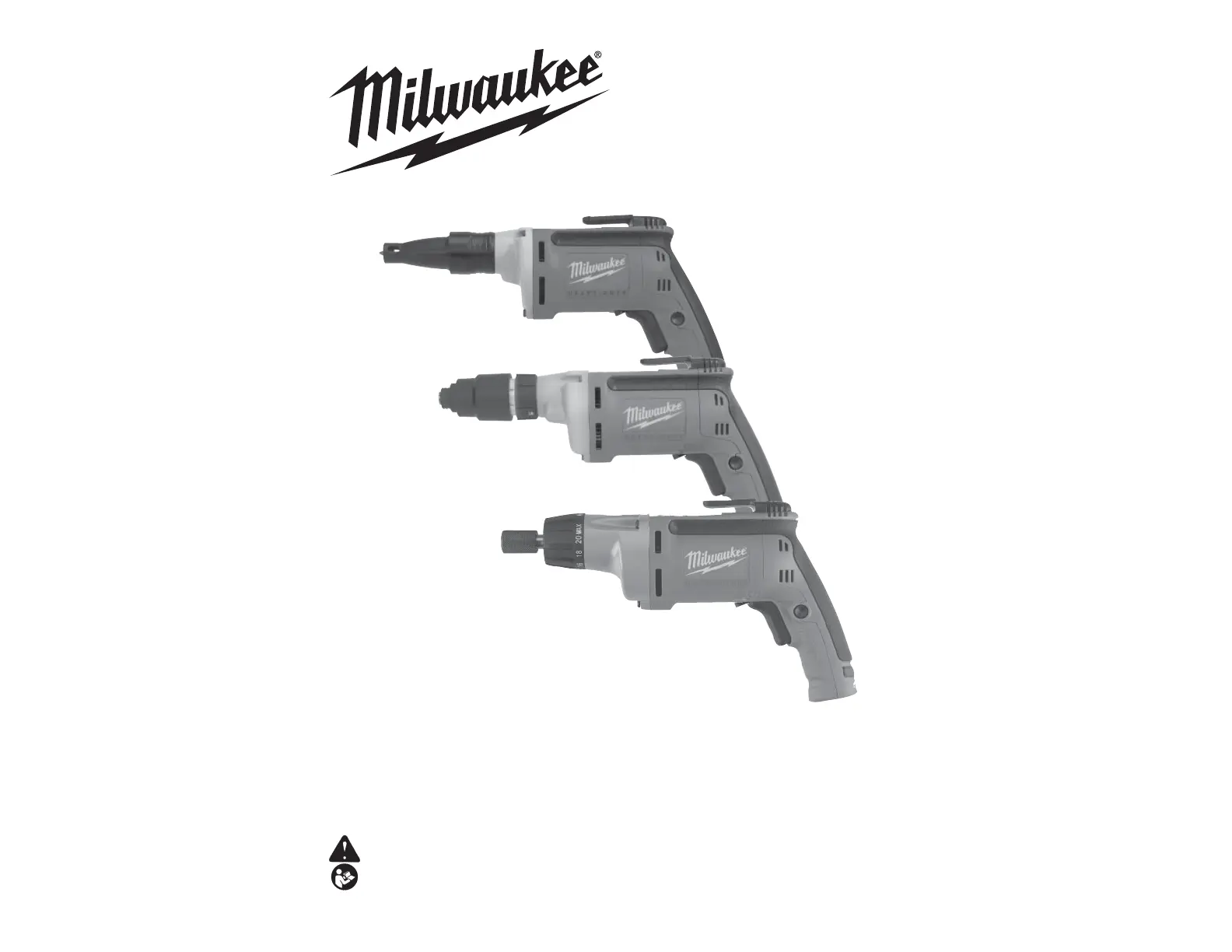

Cat. No. / No de cat.

6580-20, 6740-20, 6742-20, 6780-20,

6790-20, 6791-20, 6791-21, 6792-20

OPERATOR'S MANUAL

MANUEL de L'UTILISATEUR

MANUAL del OPERADOR

WARNING To reduce the risk of injury, user must read and understand operator's manual.

AVERTISSEMENT Aﬁ n de réduire le risque de blessures, l'utilisateur doit lire et bien

comprendre le manuel.

ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.

HEAVY-DUTY SCREWDRIVER

EXTRA ROBUSTE TOURNEVIS

DESTORNILLADORES HEAVY-DUTY

GENERAL POWER TOOL

SAFETY WARNINGS

WARNING

Read all safety warnings, instruc-

tions, illustrations and speciﬁ ca-

tions provided with this power tool. Failure to

follow all instructions listed below may result in

electric shock, ﬁ re and/or serious injury. Save all

warnings and instructions for future reference.

The term "power tool" in the warnings refers to your

mains-operated (corded) power tool or battery-oper-

ated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmo-

spheres, such as in the presence of ﬂ ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Keep children and bystanders away while operat-

ing a power tool. Distractions can cause you to lose

control.

ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power

tools. Unmodiﬁ ed plugs and matching outlets will

reduce risk of electric shock.

• Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase the

risk of electric shock.

• Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase

the risk of electric shock.

• When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of

a cord suitable for outdoor use reduces the risk of

electric shock.

• If operating a power tool in a damp location is

unavoidable, use a ground fault circuit interrupter

(GFCI) protected supply. Use of an GFCI reduces

the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under

the inﬂ uence of drugs, alcohol or medication. A

moment of inattention while operating power tools

may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as a dust mask, non-skid safety shoes, hard hat or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch

is in the off-position before connecting to power

source and/or battery pack, picking up or carrying

the tool. Carrying power tools with your ﬁ nger on

the switch or energizing power tools that have the

switch on invites accidents.

• Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may

result in personal injury.

• Do not overreach. Keep proper footing and

balance at all times. This enables better control

of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or

jewelry. Keep your hair and clothing away from

moving parts. Loose clothes, jewelry or long hair

can be caught in moving parts.

• If devices are provided for the connection of

dust extraction and collection facilities, ensure

these are connected and properly used. Use of

dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use

of tools allow you to become complacent and

ignore tool safety principles. A careless action can

cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power

tool for your application. The correct power tool

will do the job better and safer at the rate for which

it was designed.

• Do not use the power tool if the switch does not

turn it on and o. Any power tool that cannot be

controlled with the switch is dangerous and must be

repaired.

• Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from

the power tool before making any adjustments,

changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of

starting the power tool accidentally.

• Store idle power tools out of the reach of children

and do not allow persons unfamiliar with the

power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands

of untrained users.

• Maintain power tools and accessories. Check

for misalignment or binding of moving parts,

breakage of parts and any other condition that

may affect the power tool’s operation. If damaged,

have the power tool repaired before use. Many

accidents are caused by poorly maintained power

tools.

• Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits

etc. in accordance with these instructions,

taking into account the working conditions and

the work to be performed. Use of the power tool

for operations dierent from those intended could

result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean

and free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and

control of the tool in unexpected situations.

SERVICE

• Have your power tool serviced by a qualiﬁ ed

repair person using only identical replacement

parts. This will ensure that the safety of the power

tool is maintained.

SPECIFIC SAFETY RULES FOR

SCREWDRIVER

• Hold power tool by insulated gripping surfaces,

when performing an operation where the fastener

may contact hidden wiring or its own cord. Fas-

teners contacting a “live” wire may make exposed

metal parts of the power tool “live” and could give

the operator an electric shock.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

•

WARNING

Some dust created by power sanding,

sawing, grinding, drilling, and other

construction activities contains chemicals known to

cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other

masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your

exposure to these chemicals: work in a well ventilated

area, and work with approved safety equipment, such

as those dust masks that are specially designed to

ﬁ lter out microscopic particles.

EXTENSION CORDS

Grounded tools require a three wire extension cord.

Double insulated tools can use either a two or three

wire extension cord. As the distance from the supply

outlet increases, you must use a heavier gauge exten-

sion cord. Using extension cords with inadequately

sized wire causes a serious drop in voltage, resulting

in loss of power and possible tool damage. Refer to

the table shown to determine the required minimum

wire size.

The smaller the gauge number of the wire, the greater

the capacity of the cord. For example, a 14 gauge

cord can carry a higher current than a 16 gauge cord.

When using more than one extension cord to make

up the total length, be sure each cord contains at

least the minimum wire size required. If you are using

one extension cord for more than one tool, add the

nameplate amperes and use the sum to determine

the required minimum wire size.

Guidelines for Using Extension Cords

• If you are using an extension cord outdoors, be sure

it is marked with the sufﬁ x “W-A” (“W” in Canada) to

indicate that it is acceptable for outdoor use.

• Be sure your extension cord is properly wired and in

good electrical condition. Always replace a damaged

extension cord or have it repaired by a qualiﬁ ed

person before using it.

• Protect your extension cords from sharp objects,

excessive heat and damp or wet areas.

Recommended Minimum Wire Gauge

For Extension Cords*

Nameplate Amps

Extension Cord Length

25' 50' 75' 100' 150'

0 - 2.0

2.1 - 3.4

3.5 - 5.0

5.1 - 7.0

7.1 - 12.0

12.1 - 16.0

16.1 - 20.0

* Based on limiting the line voltage drop to ﬁ ve volts at 150%

of the rated amperes.

GROUNDING

WARNING

Improperly connecting the ground-

ing wire can result in the risk of

electric shock. Check with a qualiﬁ ed electrician

if you are in doubt as to whether the outlet is

properly grounded. Do not modify the plug pro-

vided with the tool. Never remove the grounding

prong from the plug. Do not use the tool if the

cord or plug is damaged. If damaged, have it

repaired by a MILWAUKEE service facility before

use. If the plug will not ﬁ t the outlet, have a

proper outlet installed by a qualiﬁ ed electrician.

Grounded Tools (Three-Prong Plugs)

Tools marked “Grounding Required” have a three

wire cord and three prong grounding plug. The plug

must be connected to a properly grounded outlet

(See Figure A). If the tool should electrically mal-

function or break down, grounding provides a low

resistance path to carry electricity away from the

user, reducing the risk of electric shock.

The grounding prong in the plug is connected through

the green wire inside the cord to the grounding

system in the tool. The green wire in the cord must

be the only wire connected to the tool's grounding

system and must never be attached to an electrically

“live” terminal.

Your tool must be plugged into an appro-

Fig. A

priate outlet, properly installed and

grounded in accordance with all codes

and ordinances. The plug and outlet

should look like those in Figure A.

Double Insulated Tools (Two-Prong Plugs)

Tools marked “Double Insulated” do not require

grounding. They have a special double insulation

system which satisﬁ es OSHA requirements and

complies with the applicable standards

Fig. B Fig. C

of Underwriters Laboratories, Inc., the

Canadian Standard Association and

the National Electrical Code. Double

Insulated tools may be used in either

of the 120 volt outlets shown in Figures

B and C.

SYMBOLOGY

Double Insulated

Volts

Alternating Current

Amps

No Load Revolutions per Minute (RPM)

C US UL Listing for Canada and U.S.

Approval Mark for Mexico

Installing and Removing Bits

TEKS Ramp-O Locator Assembly

The locator assembly must

Magnetic socket

Locator

Ramp-o

sleeve

be removed when chang-

ing bit sizes.

1. Unplug tool. To remove

the locator assembly,

t u rn t h e r a m p - o f f

sleeve while pulling it

away from the tool.

2. Pull out the magnetic

socket and replace it with a new socket.

3. Push the locator assembly onto the nose of the

tool until it snaps into place.

Installing and Removing Bits

Drywall Ramp-O Locator Assembly

Bit holder

Insert bit

Locator

Ramp-o

sleeve

1. Unplug tool. To remove the locator assembly, turn

the ramp-o sleeve while pulling it away from the

tool.

2. Push insert bit into bit holder until it snaps into

place. Push the bit holder into the nose of the tool

until it snaps into place.

3. Push the locator assembly onto the nose of the

tool until it snaps into place.

Installing and Removing Magnetic

Sockets on Adjustable Screwdrivers

For Cat. No. 6580-20

1. Unplug tool.

2. To remove the magnetic socket, slide the locking

sleeve forward and pull out the socket.

Locking sleeve

Socket

3. To install the magnetic socket, slide the locking

sleeve forward and push in the socket until it is

fully seated.

For Cat. No. 6780-20

1. Unplug tool.

2. To remove the magnetic socket, slide the locking

sleeve forward and pull out the socket.

Locking sleeve

Socket

3. To install the magnetic socket, simply push in the

socket until it snaps into place.

OPERATION

WARNING

To reduce the risk of injury, always

wear safety goggles or glasses

with side shields.

Using Forward/Reverse Switch

1. For forward (clockwise)

Forward

Trigger

Reverse

Switch

Front of Tool

rotation, push the for-

ward/reverse switch to

the left position as

shown.

2. For reverse (coun-

terclockwise) rotation,

push the forward/re-

verse switch to the right

position as shown.

Although an interlock

prevents reversing the

tool while the motor

is running, allow it to

come to a full stop be-

fore reversing.

WARNING

To reduce the risk of injury, keep

hands and cord away from the bit

and all moving parts.

Starting, Stopping and Controlling Speed

1. To start the tool, pull the trigger.

2. To stop the tool, release the trigger.

3. To vary the drilling speed, simply increase or

decrease pressure on the trigger. The further the

trigger is pulled, the greater the speed.

Locking Trigger

The lock button holds the trigger in the ON position

for continuous full speed use.

1. To lock the trigger, hold the lock button in while

pulling the trigger. Release the trigger.

2. To unlock the trigger, pull the trigger and release.

The lock button will pop out.

Adjusting Locator Assembly

The locator assembly controls the tool's driving

depth. These screwdrivers feature a locator assembly

with one-handed depth adjustment. Depth adjust-

ments can be made easily and quickly by turning

the locator with one hand. Detents inside the sleeve

“lock” the selected depth.

For the drywall ramp-o locator assembly, start with

about 1/16" clearance between the head of the screw

and nose with the snap-action clutch disengaged

as shown.

For both locator assemblies, the

1/16"

detents on the inside of the

sleeve represent different

depths. Every two clicks of the

locator equal 1/64". Continue

adjusting the locator to the

desired depth.

1. To increase the driving

depth, simply rotate the loca-

tor in the direction labeled .

2. To decrease the driving

depth, simply rotate the loca-

tor in the direction labeled .

The detents “lock” the locator

in place, ensuring an accurate depth setting.

3. To remove the locator assembly, turn the ramp-o

sleeve while pulling it away from the tool. Reat-

taching the locator assembly will not change the

depth setting.

SPECIFICATIONS

Volts .............................................................120 AC

Amps ..................................................................6.5

Cat. No. ..................................................... 6580-20

RPM ............................................................ 0 -1200

Cat. No. ..................................................... 6740-20
