Seite 1/1
80-M500II-97-0001-02
MODEL: M-500
AC IN: 220V-240V~ 50Hz 12 5mA
MULTIMEDIA SPEAKER
MADE IN CHINA
The back panel with the heat sink
inside will cause high temperature,
be careful not to touch it.
AUDIO OUTPUT
AU DI O I NP UT
*Please note the correct placement of speaker is shown in the above picture.
Caution:
1. Don't put the system in high temperature or humid environment, avoid
from water and strong shock.
2. Don't open the cabinet to avoid electric shock or other accident. In case
of damage, please ask for professional help.
3. In case of fragment or liquid fallen into the cabinet, please cut off the
power and ask for professional help.
4. When using high output signal, please don't turn the volume to
maximum to avoid distortion.
5. In case of long time not using, please plug off the power plug.
6. For indoor use only.
Features:
*Aerodynamic design.
* Convenient volume control.
* 5" super bass driver aerodynamic design.
* Professional designed amplifier.
* Works perfectly with PC sound card, portable audio player, MP3
player, laptop computer and two channel audio source.
Usage:
*Play a music program, adjusting the VOLUME, TREBLE and BASS
control to your demanding level.
Specification
*Amplifier specification:
AC IN 220V-240V~ 50Hz 125mA
Power Output 34W RMS
Frequency Response 35Hz~20KHz
Harmonic Distortion < 0.3%
S/N >75dB
Separation >45dB
*Speaker: Subwoofer 5"
Satellites 2.5"x 2
*Product size: DxWxH
Subwoofer 269x154x230mm
Satellites 88x87x148mm
Inside Package:
Subwoofer Speaker 1 pc
Satellite Speaker 1 pair
Audio Cable 1 pc
User's Manual 1 pc
2. Connect the 2RCA end of the Audio cable to the " Audio Input " L/R
jacks on the back of the Subwoofer, and the 3.5mm end of the Audio
cable to the PC sound card or the appropriate audio output jacks of
any other stereo audio source.
3. Make sure all the cable are connected correctly, then connect the power
cord to the AC outlet.
* Statement indicating that the socket-outlet shall be installed near the
equipment and shall be easily accessible.
* The highest environmental temperature suitable for this product is 40
oC.

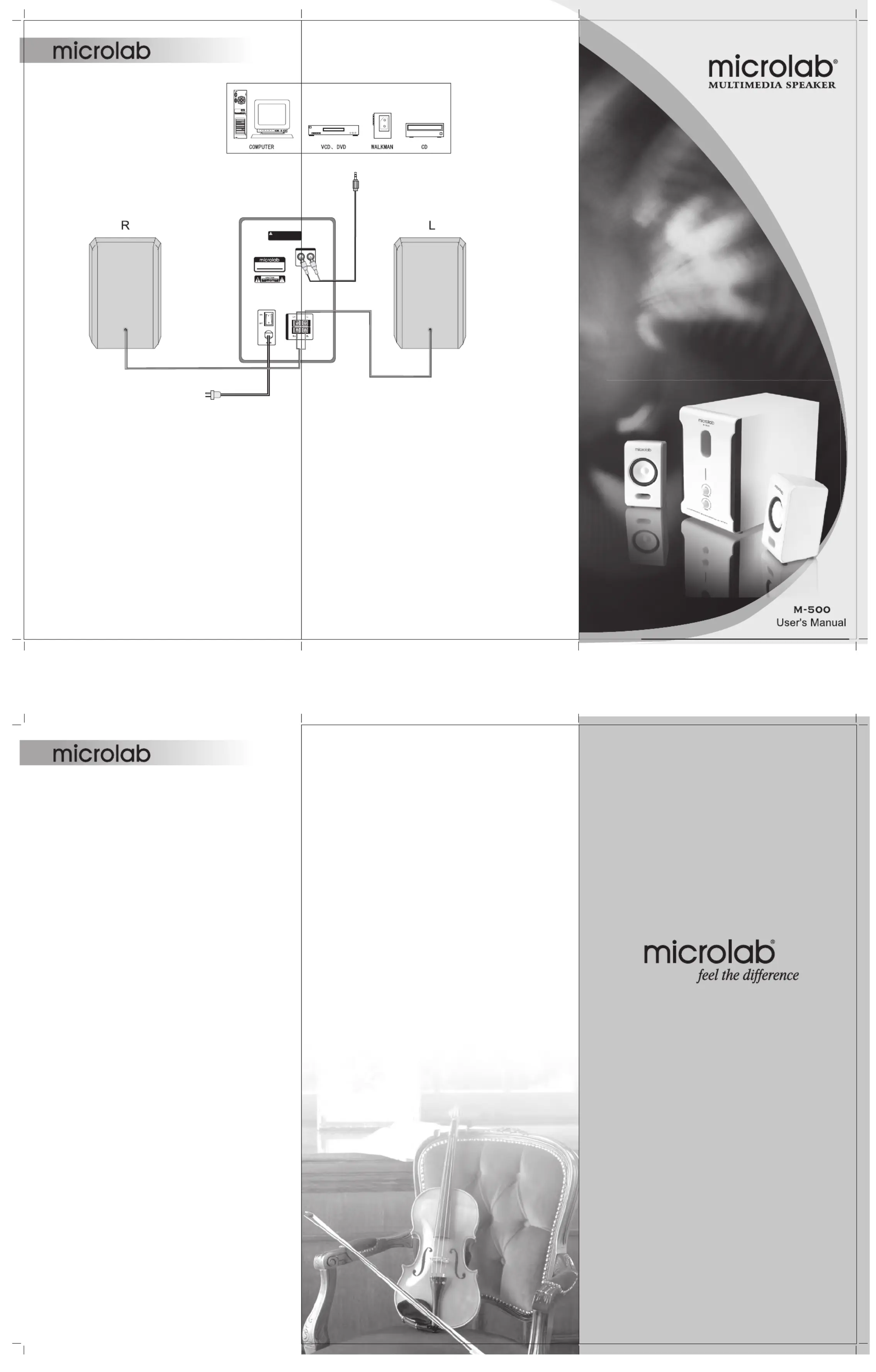

Connection( as diagram )
1. Connect the speaker cables to the " Audio output " L/R jacks on the
back of the Subwoofer, then put the left channel satellite speaker on
the left and the right satellite speaker on the right.
