Seite 1/19
MIC4103/4104
100V Half-Bridge MOSFET Drivers with
3A/2A Sinking/Sourcing Current
General Description
T - -he MIC4103 and MIC4104 are high frequency, 100V half
bridge MOSFET drivers with faster turn off characteristics -
than the MIC4100 and MIC4101 drivers. They feature fast
24ns propagation delay times and 6ns driver fall times.
The low side and high side gate drivers are independently - -
controlled and matched to within 3ns (typical). The
MIC4103 has CMOS input thresholds and the MIC4104
has TTL input thresholds. The MIC4103/4 include a high-
voltage internal diode that charges the high side gate drive -
bootstrap capacitor.
A robust, high speed, and low power level shifter provides - -
clean level transitions to the high side output. The robust -
operation of the MIC4103/4 ensures the outputs are not
affected by supply glitches, HS ringing below ground, or
HS slewing with high-speed voltage transitions.
Undervoltage protection is provided on both the low-side
and high-side drivers.
The MIC4103 and MIC4104 are available in an 8- pin SOIC
package with an operating junction temperature range of
– ° ° 40 C to +125 C.
Datasheets and support documentation are available on
Micrel’s web site at: www.micrel.com.
Features
• Asymmetrical, low impedance outputs drive 1000pF
load with 10ns rise times and 6ns fall times
• Bootstrap supply maximum voltage to 118V DC
• Supply voltage up to 16V
• - -Drives high and low side N Channel MOSFETs with
independent inputs
• CMOS input thresholds (MIC4103)
• TTL input thresholds (MIC4104)
• - On chip bootstrap diode
• Fast 24ns propagation times
• Low power consumption
• Supply undervoltage protection
• Ω Ω Typical 2.5 -pull up and 1.25 -pull down output driver
resistance
• – ° ° 40 C to +125 C junction temperature range
Applications
• - High voltage buck converters
• - - Full and half bridge power topologies
• Active clamp forward converter
• Two switch forward topologies
• Interface to digital controllers

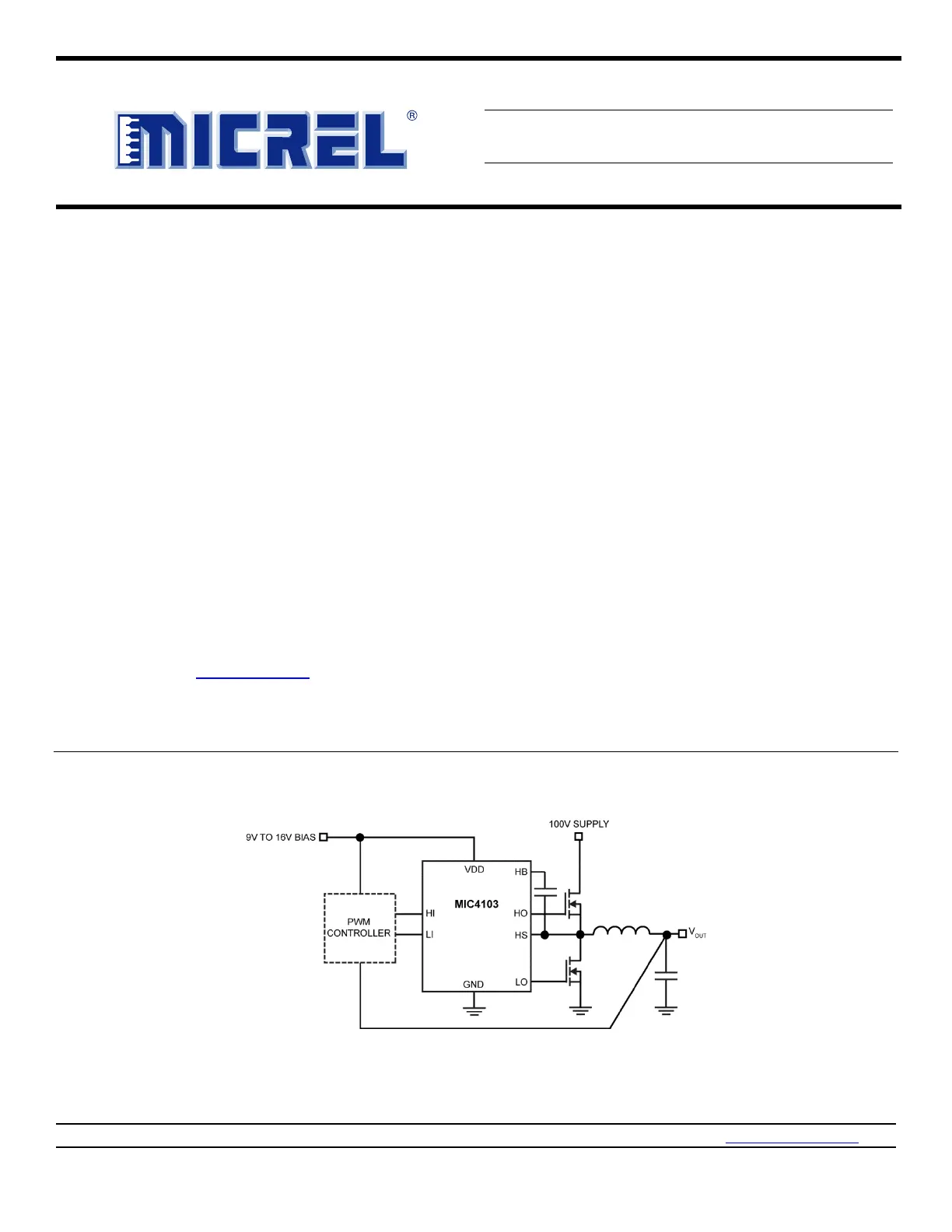

Typical Application
100V Buck Regulator Solution
Micrel Inc. • 2180 Fortune Drive • Jose, CA 95131 • USA • tel +1 (408) 944 0800 • fax + 1 (408) 474 1000 • San - - http://www.micrel.com
November 12, 2014 Revision 3.0
Micrel, Inc.
MIC4103/4104
Ordering Information
Part Number Input Junction Temperature Range Package
MIC4103YM 40 –CMOS ° 8- to +125°C Pin SOIC
MIC4104YM –TTL 40° to +125°C 8- Pin SOIC
Pin Conguration
8- ( Pin SOIC M)
(Top View)
Pin Description
Pin Number
Pin Name
Pin Function
1 VDD Positive Supply to lower gate drivers. Decouple this pin to VSS (Pin 7). Bootstrap diode connected
to HB (pin 2).
2 HB High-Side Bootstrap supply. External bootstrap capacitor is required. Connect positive side of
bootstrap capacitor to this pin. Bootstrap diode is on- chip.
3 -HO High Side Output. Connect to gate of High Side power MOSFET.-
4 HS High-Side Source connection. Connect to source of High Side power MOSFET. Connect negative -
side of bootstrap capacitor to this pin.
5 -HI High Side input.
6 -LI Low Side input.
7 VSS Chip negative supply, generally will be ground.
8 -LO Low Side Output. Connect to gate of Low-Side power MOSFET.
November 12, 2014 2 Revision 3.0
Micrel, Inc.
MIC4103/4104
Absolute Maximum Ratings( )1
Supply Voltage (VDD, VHB – VHS) ..................... −0.3V to 18V
Input Voltages (VLI, VHI) ........................ −0.3V to V
DD + 0.3V
Voltage on LO (VLO) ............................. −0.3V to V
DD + 0.3V
Voltage on HO (VHO) ..................... VHS −0.3V to VHB + 0.3V
Voltage on HS (continuous) ............................. −1V to 110V
Voltage on HB .............................................................. 118V
Average Current in VDD to HB Diode ....................... 100mA
Junction Temperature (TJ) ........................ − ° °55 C to +150 C
Storage Temperature (Ts) ......................... − ° °60 C to +150 C
ESD Rating ................................................................. Note 3
Operating Ratings( )2
Supply Voltage (VDD) ........................................ +9V to +16V
Voltage on HS .................................................. −1V to 100V
Voltage on HS (repetitive transient) ................. −5V to 105V
HS Slew Rate ............................................................ 50V/ns
Voltage on HB and
VHS V............................................ HS + 8V to VHS + 16V
VDD .......................................... V
DD - 1V to VDD + 100V
Junction Temperature (TJ) ........................ – 5 C 40°C to +12 °
Junction Thermal Resistance
-SOIC 8L (θJA) ................................................... 140°C/W
Electrical Characteristics( ) 4 5,
VDD = VHB = 12V; VSS = VHS = 0V; No load on LO or HO; TA + = 25°C; unless noted. Bold values indicate –40° ≤ ≤ °C TJ +125 C.
Symbol Parameter . . . Condition Min Typ Max Units
Supply Current
IDD VDD Quiescent Current LI = HI = 0V 40 150
200 µA
IDDO VDD Operating Current f = 500kHz 3.0 4.0 mA
IHB Total HB Quiescent Current LI = HI = 0V 25 150
200 µA
IHBO Total HB Operating Current f = 500kHz 1.5 2.5
3 mA
IHBS HB to V
SS Current, Quiescent VHS = VHB = 110V 0.05 1
30 µA
Input Pins: MIC4103 (CMOS Input)
VIL -Low Level Input Voltage Threshold 4
3 5.3 V
VIH
-High Level Input Voltage Threshold 5.7 7
8 V
VIHYS Input Voltage Hysteresis V 0.4
R
I -DInput Pull own Resistance 100 200 500 k Ω
Input Pins: MIC4104 (TTL Input)
VIL -Low Level Input Voltage Threshold
1.5 V
VIH
-High Level Input Voltage Threshold 1.5 2.2 V
R
I -DInput Pull own Resistance 100 200 500 k Ω
Undervoltage Protection
VDDR VDD Rising Threshold 6.5 7.4 8.0 V
VDDH VDD Threshold Hysteresis V 0.5
VHBR HB Rising Threshold 6.0 7.0 8.0 V
VHBH HB Threshold Hysteresis V 0.4
Notes:
1. Exceeding the absolute maximum ratings may damage the device.
2. The device is not guaranteed to function outside its operating ratings.
3. Devices are ESD sensitive. Handling precautions are recommended. Human body model, 1.5k in series with 100pF.Ω
4. Specification for packaged product only
Electrical Characteristics(4 5, ) (Continued)
November 12, 2014 3 Revision 3.0
