Supertex inc.
Supertex inc.
www.supertex.com
Doc.# DSFP-HV857L
A062013
HV857L
Features
Audible noise reduction
190 VPP output voltage for higher brightness
Single cell lithium ion compatible
150nA shutdown current
Wide input voltage range 1.8V to 5.0V
Separately adjustable lamp and converter
frequencies
Output voltage regulation
Split supply capability
Available in 8-Lead DFN and 8-Lead MSOP-
packages
Applications
Mobile cellular phones
Keypad backlighting
LCD backlighting
PDAs
Handheld wireless communication products
Global Positioning Systems (GPS)
General Description
The Supertex HV857L is a low noise, high voltage driver designed
for driving Electroluminescent (EL) lamps of up to ve square
inches. It is the low noise version of the EL lamp driver HV857. The
input supply voltage range is from 1.8V to 5.0V. The device uses
a single inductor and a minimum number of passive components.
The nominal regulated output voltage that is applied to the EL
lamp is ±95V. The chip can be enabled/disabled by connecting the
resistor on RSW-Osc to VDD/ground.
The HV857L has two internal oscillators, a switching MOSFET,
and a high voltage EL lamp driver. The frequency for the switching
MOSFET is set by an external resistor connected between the RSW-
Osc pin and the supply pin, VDD. The EL lamp driver frequency
is set by an external resistor connected between the REL-Osc
and VDD pins. An external inductor is connected between the LX
and VDD pins, or VIN for split supply applications. A 0.003-0.1µF
capacitor is connected between CS and ground. The EL lamp is
connected between the VA and VB pins.
The switching MOSFET charges the external inductor and
discharges it into the capacitor at CS. The voltage at CS will start
to increase. Once the voltage at CS reaches a nominal value of
95V, the switching MOSFET is turned OFF to conserve power.
The outputs VA and VB are congured as an H bridge, and are
switching in opposite states to achieve ±95V across the EL lamp.

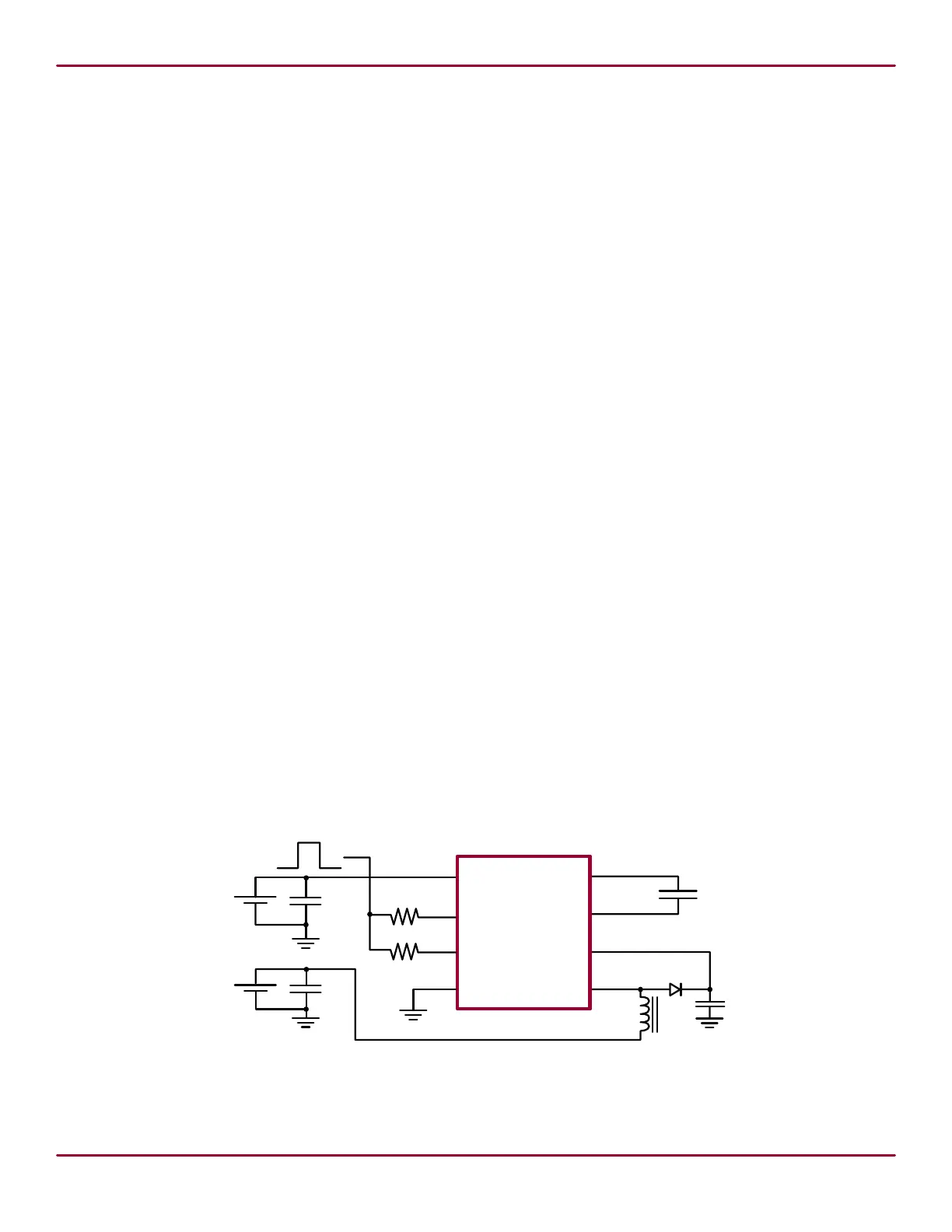

Typical Application Circuit
Low Noise, High Voltage
EL Lamp Driver IC
+
_
VDD CDD
EL Lamp
+
_ CS
VIN
LX
CIN
Enable Signal
ON = VDD
OFF = 0
D
RSW
REL
1
2
3
4
8
7
6
5
HV857L
VDD
RSW-Osc
REL-Osc
GND
VA
VB
CS
LX
2
Supertex inc.
www.supertex.com
Doc.# DSFP-HV857L
A062013
HV857L
Absolute Maximum Ratings
Parameter Value
Supply voltage, VDD -0.5V to 6.5V
Operating temperature -40°C to +85°C
Storage temperature -65°C to +150°C
8-Lead DFN power dissipation 1.6W
8-Lead MSOP power dissipation 300mW
Output voltage, VCS -0.5 to +120V
Absolute Maximum Ratings are those values beyond which damage to
the device may occur. Functional operation under these conditions is not
implied. Continuous operation of the device at the absolute rating level
may affect device reliability. All voltages are referenced to device ground.
Sym Parameter Min Max Units ConditionsTyp
VDD Supply voltage 1.8 - 5.0 V ---
fEL Operating drive frequency - - 1 kHz ---
TAOperating temperature -40 - +85 OC ---
Recommended Operating Conditions
Product Marking
857L
Y W L L
Y = Last Digit of Year Sealed
W = Code for Week Sealed
L = Lot Number
=Green Packaging
L = Lot Number
YY = Year Sealed
WW = Week Sealed
= GreenPackaging
857L
LLLL
YYWW
Top Marking
Bottom Marking
8-Lead DFN
8-Lead MSOP
Pin Congurations
Package may or may not include the following marks: Si or
Package may or may not include the following marks: Si or
8-Lead MSOP
(top view)
Pads are at the bottom of the package.
Exposed center pad is at ground potential.
8-Lead DFN
(top view)
1
2
3
4
8
7
6
5
VDD
RSW-Osc
REL-Osc
GND
VA
VB
CS
LX
1
2
3
4
8
7
6
5
VDD
RSW-Osc
REL-Osc
GND
VA
VB
CS
LX
Typical Thermal Resistance
Package θja
8-Lead DFN 37OC/W
8-Lead MSOP 171OC/W
Mounted on FR4 board, 25mm x 25mm x 1.57mm
Ordering Information
Part Number Package Packing
HV857LK7-G 8-Lead DFN 3000/Reel
HV857LMG-G 8-Lead MSOP 2500/Reel
-G denotes a lead (Pb)-free / RoHS compliant package
3
Supertex inc.
www.supertex.com
Doc.# DSFP-HV857L
A062013
HV857L
* The inductor used is a 220µH Murata inductor, max DC resistance of 8.4Ω, part # LQH32CN221K21.
Sym Parameter Min Max Units ConditionsTyp
RDS(ON) On-resistance of switching transistor - - 6.0 I = 100mAΩ
VCS Max. output regulation voltage 85 95 105 V V DD = 1.8 to 5.0V
V
A – VBPeak to peak output voltage 170 190 210 V V DD = 1.8 to 5.0V
IDDQ Quiescent VDD supply current - - 150 nA RSW-Osc = Low
IDD Input current going into the VDD pin - - 150 µA VDD = 1.8 to 5.0V. See Fig. 1
IIN Input current including inductor current - 25 40 mA See Fig. 1*
VCS Output voltage on VCS - 92 - V See Fig. 1
fEL EL lamp frequency 175 205 235 Hz See Fig. 1
fSW Switching transistor frequency 65 77 89 kHz See Fig. 1
D Switching transistor duty cycle - 88 - % See Fig. 1
Sym Parameter Min Max Units ConditionsTyp
EN-L Logic input low voltage 0 - 0.2 V VDD = 1.8 to 5.0V
EN-H Logic input high voltage VDD - 0.2 - VDD V VDD = 1.8 to 5.0V
Enable/Disable Function Table
Electrical Characteristics
DC Characteristics (Over recommended operating conditions unless otherwise specied, T
A = 25°C)
Block Diagram
C
+
_ V
REF
Disable H igh
Voltage
Level
Translator
GND
VDD
Q
Q
Q
VA
CS
LX
VB
Q
RSW-Osc
R cEL-Os
V
SENSE
EL
Osc
VDD
Switch
Osc
