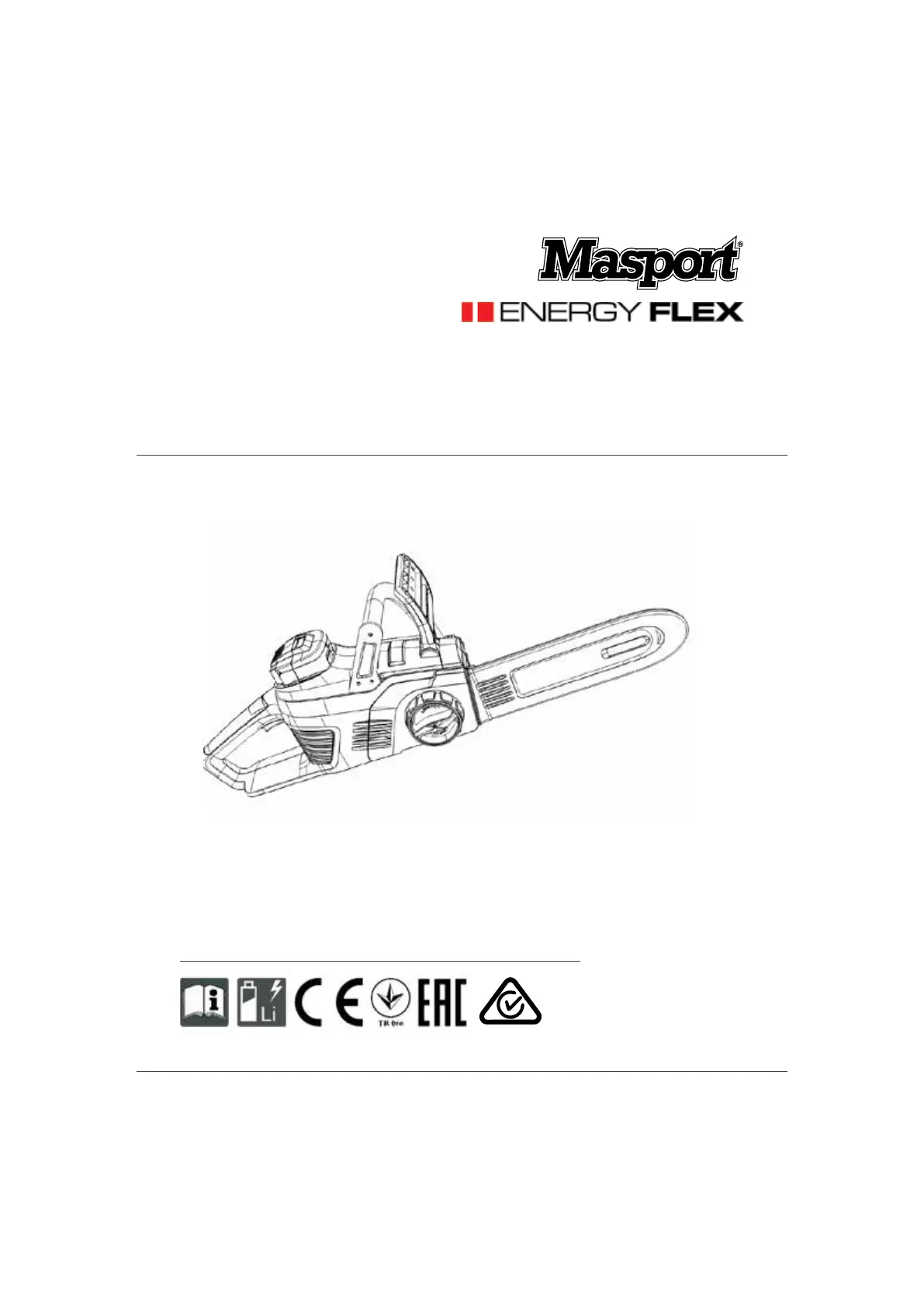

491061.B.1 06/2018
OWNER‘S MANUAL
BATTERY CHAINSAW
CS 4030
2CS 4030
Contents
1 About these operating instructions 3
1.1 Legends and signal words 3
2 Product description 3
2.1 Designated use 3
2.2 Residual Risks 3
2.3 Safety and protective devices 4
2.3.1 Switch-on protection 4
2.3.2 Chain brake 4
2.4 Symbols on the appliance 4
2.5 Scope of supply 4
2.6 Product Overview (01) 5
3 General safety instructions for power
tools 9
3.1 Work area safety 9
3.2 Electrical safety 9
3.3 Personal safety 9
3.4 Power tool use and care 9
3.5 Battery tool use and care 10
3.6 Service 10
4 Chain saw safety warnings 10
5 Causes and operator prevention of
kickback 11
6 Vibration load 11
7 Noise pollution 12
8 Safety information regarding the
rechargeable battery 12
9 Safety information regarding the charging
unit 13
10 Safety information when working 13
10.1 Operator 14
10.2 Operating times 14
10.3 Working with the chain saw 14
11 Installation 15
11.1 Installing the guide rail (05, 06) 15
11.2 Installing the saw chain (05, 06) 15
11.3 Tightening the saw chain (05, 07) 15
12 Start-up 15
12.1 Charging the rechargeable battery
(02) 16
12.2 Inserting the rechargeable battery
(03) 16
12.3 Pulling out the rechargeable battery
(03) 16
12.4 Checking the chain tension 16
12.5 Testing the function of the chain
brake 16
12.6 Function test of the chain brake
with the engine switched off (08) 17
12.7 Function test of the chain brake
with the motor switched on (08) 17
12.8 Filling saw chain oil (09) 17
13 Operation 17
13.1 Determining the charge status of
the rechargeable battery (04) 17
13.2 Check the saw chain oil 18
13.3 Testing the chain brake 18
13.4 Switching the engine on and off 18
14 Working behaviour and working
technique 18
14.1 Felling trees 19
14.2 Branch lopping 20
14.3 Cross-cutting 20
14.4 Cutting converted timber (12) 20
15 Maintenance and care 21
15.1 Sharpening the saw chain (13) 21
15.2 Cleaning the chain sprocket interior 22
15.3 Changing over the quick-tension
chain wheel (16) 22
15.4 Checking, turning and greasing the
guide rail (14, 15) 22
16 Help in case of malfunction 23
17 Transport 23
18 Storage 24
19 Disposal 24
3
20 Technical data 25
21 After-Sales / Service 25
22 Warranty 26
23 Declaration of conformity 29
1 ABOUT THESE OPERATING
INSTRUCTIONS
■ Itisessentialtoreadthroughtheseoperating
instructions carefully before start-up. This is
essential for safe working and trouble-free
handling.
■ Alwayssafeguardtheseoperating
instructions so that they can be consulted if
you need any information about the
appliance.
■ Onlypassontheappliancetootherpersons
together with these operating instructions.
■ Complywiththesafetyandwarning
information in these operating instructions.
1.1 Legends and signal words
DANGER!
Denotes an imminently dangerous
situation which will result in fatal or
serious injury if not avoided.
WARNING!
Denotes a potentially dangerous
situation which can result in fatal or
serious injury if not avoided.
CAUTION!
Denotes a potentially dangerous
situation which can result in minor or
moderate injury if not avoided.
IMPORTANT!
Denotes a situation which can result in
material damage if not avoided.
NOTE
Special instructions for ease of
understanding and handling.
2 PRODUCT DESCRIPTION
These operating instructions describe a hand-
operated electric chain saw that is operated with
a rechargeable battery.
2.1 Designated use
The chain saw is exclusively designed for
domestic, DIY and gardening applications. In this
sector, the chain saw can be used for light wood
sawing work, e.g. for:
■ Cutting up timber
■ Pruning hedgerows
■ Sawing firewood
Because of the electrical drive, the rechargeable
battery chain saw can be used not only on open
ground but also in closed rooms for sawing wood.
Any application not in accordance with the
application described here shall be regarded as
misuse.
The chain saw must not be used in the
commercial sector.
CAUTION!
Danger of injury due to non-
designated use!
If wood or other substances embedded
with foreign bodies are sawn with the
chain saw, injury can result.
■ Only use the chain saw for light
wood sawing work.
■ Before sawing wood, check for
foreign bodies, e.g. nails, screws,
fittings.
2.2 Residual risks
Even when using the appliance as intended,
there is always a certain residual risk that cannot
be excluded. The following hazards cannot be
ruled out due to the nature and design of the
appliance.
■ Contact with the exposed teeth of the chain
(risk of cutting)
■ Access to the moving chain (risk of cutting)
■ Sudden and unexpected movement of the
bar (risk of cutting)
■ Detachment of parts of the chain (risk of
cutting/injury)
■ Detachment of parts of the wood being
worked on
