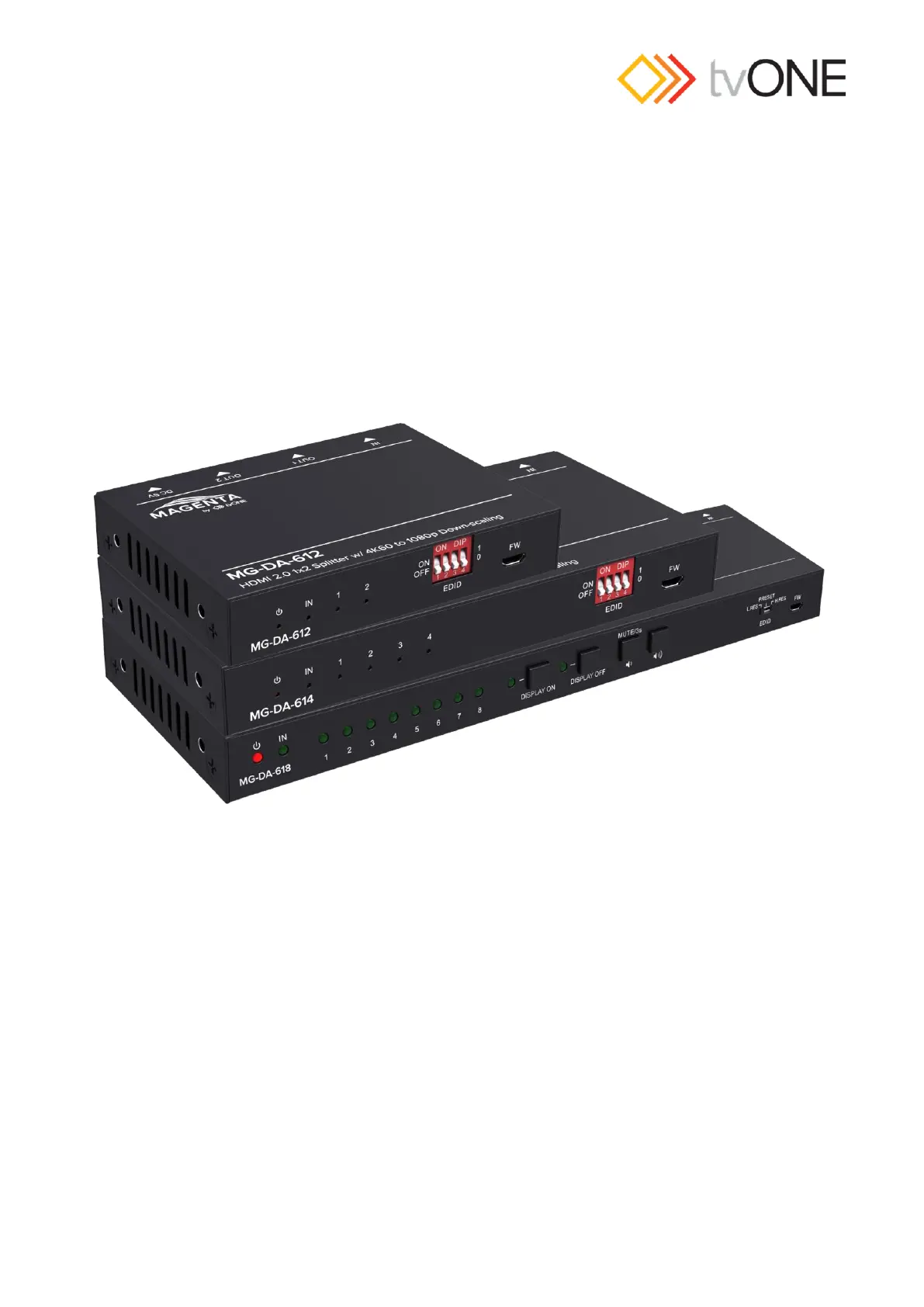

MG- -61x series DA
Ultra-slim HDMI 2.0a splitter and distribution
ampli er fi
User Guide V1.0
1 tvONE
In this document
Introduction 2..................................................................................................................................................................
Features ......................................................................................................................................................................... 2
In the box ....................................................................................................................................................................... 2
Operation controls and functions .............................................................................................................................. 3
Front panel MG- -612 and MG-DA DA- 614.......................................................................................................... 3
Front panel MG- - DA 618....................................................................................................................................... 3
Rear panel ............................................................................................................................................................. 4
DIP switch operation .................................................................................................................................................... 4
EDID management ............................................................................................................................................... 4
Predefined EDID setting ...................................................................................................................................... 5
Service mode ......................................................................................................................................................... 6
Video down-scaling ...................................................................................................................................................... 6
Firmware upgrade ........................................................................................................................................................ 6
Ordering information ................................................................................................................................................... 7
Regulatory compliance ................................................................................................................................................ 7
Contact us ...................................................................................................................................................................... 7
tvONE NCSA ............................................................................................................................................. 7
tvONE EMEA ............................................................................................................................................. 7
PDF- - -61x v1.0 2 MG DA
Introduction
The Magenta Research MG- -61x series of ultra-slim HDMI 2.0 Splitters and Distribution Amplifiers DA
provide a high-performance solution for distributing HDMI signals with video output up to 4K2K@60Hz
(YUV444) resolutions and HDR (High Dynamic Range Imaging) support, which gives the most life like video
experience. Support is also offered for up to 32 audio channels with sampling rates up to 192kHz and
passthrough of 7.1 channels of digital audio including high resolution digital audio formats such as LPCM
7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos.
Features
âš« Supports HDMI 2.0 and up to 4K@60Hz 4:4:4.
âš« HDCP 2.2
âš« HDR
âš« 3D pass through
âš« D -scaling on outputs own
âš« 18Gbps high bandwidth
âš« Ultra Slim less than 18mm in height
âš« Advanced EDID management
âš« Supports CEC pass through
In the box
âš« 1x HDMI 2.0 Splitter
âš« 2x Mounting Ears with 4 Screws
âš« 4x Plastic Cushions
âš« 1x Power Adapter
âš« 1x User guide
âš« 1x Safety, liability, and warranty guide
Note: Please contact your distributor immediately if any damage or defect in the components is found.
