Seite 1/12

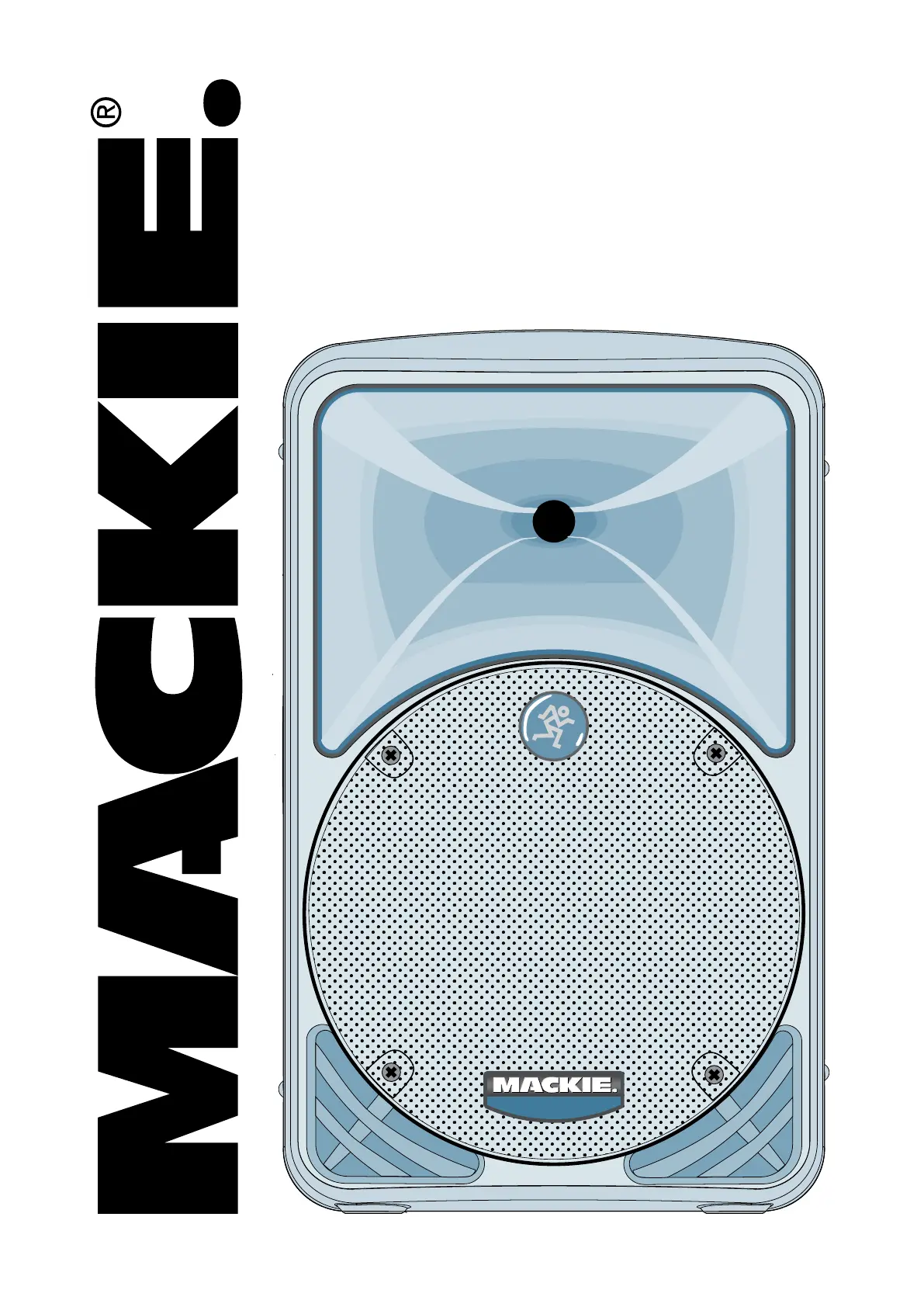

C200 TWO-WaY

LOUDSpeaker

USer’S manUaL

C200

SaFeTY InSTrUCTIOnS

Duration Per Day Sound Level dBA, Typical

In Hours Slow Response Example

8 90 Duo in small club

6 92

4 95 Subway Train

3 97

2 100 Very loud classical music

1.5 102

1 105 Tami screaming at Adrian about deadlines

0.5 110

0.25 or less 115 Loudest parts at a rock concert

9. Servicing — The user should not attempt to service this Mackie

product beyond those means described in this operating manual. All other

servicing should be referred to the Mackie Service Department.

10.

Exposure to extremely high noise

levels may cause permanent hearing loss.

Individuals vary considerably in susceptibil-

ity to noise-induced hearing loss, but nearly

everyone will lose some hearing if exposed

to sufﬁciently intense noise for a period of

time. The U.S. Government’s Occupational

Safety and Health Administration (OSHA) has speciﬁed the permissible

noise level exposures shown in the following chart.

According to OSHA, any exposure in excess of these permissible limits could

result in some hearing loss. To ensure against potentially dangerous exposure to

high sound pressure levels, it is recommended that all persons exposed to equip-

ment capable of producing high sound pressure levels use hearing protectors

while the equipment is in operation. Ear plugs or protectors in the ear canals or

over the ears must be worn when operating the equipment in order to prevent a

permanent hearing loss if exposure is in excess of the limits set forth here.

1. Read Instructions — All the safety and operation instructions should be

read before this Mackie product is operated.

2. Retain Instructions — The safety and operating instructions should be

kept for future reference.

3. Heed Warnings — All warnings on this Mackie product and in these

operating instructions should be followed.

4. Follow Instructions — All operating and other instructions should be

followed.

5. Water and Moisture — This Mackie product should not be used near

water – for example, near a bathtub, washbowl, kitchen sink, laundry

tub, in a wet basement, near a swimming pool, swamp or salivating St.

Bernard dog, etc.

6. Heat — This Mackie product should be situated away from heat

sources such as radiators, or other devices which produce heat.

7. Object and Liquid Entry — Care should be taken so that objects do not

fall on and liquids are not spilled into this Mackie product.

8. Damage Requiring Service — This Mackie product should be serviced

only by qualiﬁed service personnel when:

A. Objects have fallen, or liquid has spilled into this

Mackie product; or

B. This Mackie product has been exposed to rain; or

C. This Mackie product does not appear to operate

normally or exhibits a marked change in performance;

D. This Mackie product has been dropped, or its

chassis damaged.

Don’t forget to visit our website at www.mackie.com

for more information about this and other Mackie products.

Contents

INTRODUCTION ...............................................................3

HOOKUP DIAGRAMS ......................................................4

Quick Start ................................................................4

CONNECTIONS ................................................................6

PLACEMENT .....................................................................6

RIGGING ...........................................................................7

SERVICE INFO ..................................................................8

Troubleshooting ................................................................8

Repair ...........................................................................8

CARE AND MAINTENANCE ..............................................9

C200 SPECIFICATIONS .................................................10

C200 LIMITED WARRANTY ...........................................11

Part No. SW0583 Rev. B 01/08

INTRODUCTION

The.Crossover

This unique Low Impedance Compensat-

ed Crossover (LICC) design places inductors

in series with the woofer whose values are

markedly lower than conventional designs.

This reduces the amount of energy that is

typically wasted as heat and increases the

amount of energy that is transformed into

real acoustic power. It also incorporates dy-

namic protection for the compression driver

from non-linear signals.

The.Cabinet

The C200 cabinet was designed to be the

strongest molded composite cabinet on the

planet. This material is as strong as con-

crete, and rigid enough to prevent unwanted

vibrations and standing waves in the cabi-

net. It has built-in ﬂy points for hanging,

and a socket in the bottom for mounting on

a tripod stand. Although it is an exceptional

choice for installed sound situations, its

light weight and durable ﬁnish also make

it ideal for portable sound system use. The

asymmetrical trapezoidal design of the

cabinet also makes it easy to use as a ﬂoor

wedge for stage monitor applications.

The C200 offers a portable, lightweight

solution for a variety of high-powered

sound reinforcement applications.

Thank you for choosing the Mackie C200

sound reinforcement loudspeakers.

The C200 is a portable two-way loud-

speaker system, speciﬁcally designed to

complement our PPM Series line of profes-

sional powered mixers. They are capable of

extremely high sound pressure levels, and

designed to give you the best performance

of any portable compact loudspeaker in its

class and price range.

The.Transducers

The C200 features a 10-inch high-power

low-frequency woofer and a 1.4-inch tita-

nium diaphragm high-output compression

driver. The woofer incorporates technology

used in large-format touring systems and,

with a precision 2-inch voice coil, is virtu-

ally indestructible.

The high-frequency compression driver

is mounted on an acoustically non-resonant

exponential waveguide, providing a wide,

controlled dispersion pattern and precise

reproduction of the critical upper mid-range

and high-frequencies. The result is an unbe-

lievably smooth off-axis response that allows

everyone in the audience to experience

the same high-resolution audio no matter

where they are seated.

Each driver has been speciﬁcally de-

signed by our engineers for optimum

performance in a lightweight high-strength

cabinet.
