Features
Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
16 Ports support 48V-56VDC power to PoE powered devices
Provide 15.4W or 30W power to powered devices
Gigabit uplink RJ-45 port: 2 x 10/100/1000Mbps
200 watts PoE budget
PoE data & power transmission distance up to 100 meters
Port based VLAN for Enhanced Security
Transmission distance max up to 250 meters when VLAN is enabled
Excellent anti-thunder,anti-static and anti-interference ability
Surge protection: 2KV
Restart function helps master IC reset wholly
Built-in 200W power supply
Easy and convenient to use, plug & play, no need to configure
Galvanized housing for stable and durable working life
Overview
The SW-UF16P2GV-060 provides 16 ports 10/100Mbps IEEE802.3af/at Power over
Ethernet with a total of 200 watts of PoE budget, which is an ideal solution to fulfill the
demand of sufficient PoE power for network applications.
The SW-UF16P2GV-060 is an ideal solution for securing IP surveillance infrastructure. It
provides both 802.3af/at PoE functions along with 16 x 10/100Mbps ports featuring 15.4
watts 802.3af/30 watts 802.3at PoE in RJ-45 interfaces and extra 2-Gigabit uplink port:
10/100/1000Mbps RJ-45 to keep a cascade connection with another switch or NVR. For
instance, one 16 Channels NVR and 16 PoE IP cameras as a kit for the administrators to
centrally and efficiently manage the surveillance system in the local LAN and the remote
site via Internet.
With data and power over Ethernet from one unit, the SW-UF16P2GV-060 reduces
cabling requirements and eliminates the need for dedicated electrical outlets on the wall,
ceiling or any unreachable place. A wire that carries both data and powe can lower the
installation costs, simplify the installation effort and eliminate the need for electricians or
extension cords. Providing 16 PoE interfaces, the SW-UF16P2GV-060 is ideal for small
businesses and workgroups requiring deploying the PoE for the wireless access points,
IP-based surveillance IP phones in any places easily, efficiently and cost-effecvely.
visit our website
www.machpower.it
USER MANUAL SW-UF16P2GV-060

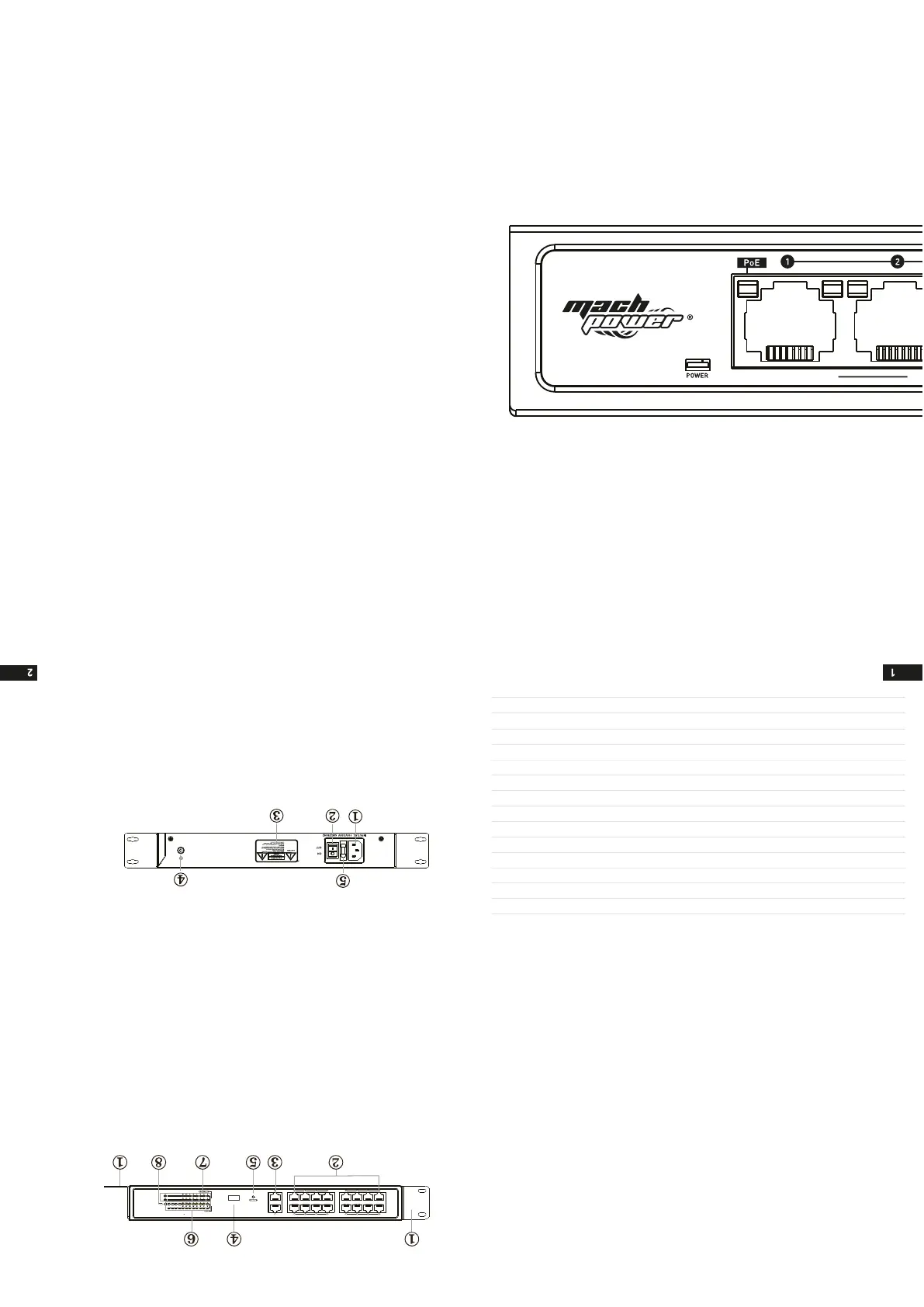

Front panel
1. Rack-mounting ears: Cabinets for product installation or Wall installation
2. Downlink RJ45 port: Transfer data from other IP devices to the switch
3. Gigabit Uplink RJ45 Port: Transfer data from PoE ports to other devices (NVR/Swi-
tch/ADSL)
4. VLAN Button: Turn on VLAN button: indicator on and VLAN function starts
Turn off VLAN button: indicator off and VLAN function stops
5. Reset Button: Whole machine will restart while press button
6. PoE Indicator: Yellow Light on: when device is powered
Light off: when device is not detected or not powered
7. Link/ Act Indicator: Green LED on: link up
Green LED off: link down
Green LED blinks: data transfer
8. Power indicator: Red Light on: with power; Light off: no power
Rear panel
1. Input: AC 96 264V~
2. Power Switch: Turn on with power, Turn off no power
3. Waiting Content
5. Ground Connection
6. Fuse: Max 10A
VLAN
OFF ON
Technical Specification
How to make a network cable
To create a network cable, you will first need the equipment listed below.
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
1. We recommend stripping at least a half of an inch offf the cable to expose the inner
wires.
2. Separate the wires within the cable after the network cable jacket has been removed
so that they can be put into the RJ-45 connector
3. The CAT5 twisted-pair cable consist of four twisted wires, each color coded; 8 wires
must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA568B
4. Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and
ensure 8 wire are straighten and neat.
5. Place the cable into the RJ-45 connector and use the crimping tool to attach the
connector.
6. Repeat above steps for the other end of the cable; the wire sequence of both ends of
the cable is suggested to be identical.
7. Make sure to test the cables before installing them once both ends of the cable have
been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire
sequence of both enads of the cable is allowed.
T568A
T568B
1
white
greeen
white
orange
2
greeen
orange
3
white
orange
white
green
4
blue
blue
5
white
blue
white
blue
6
orange
green
7
white
brown
white
brown
8
brown
brown
The wire sequence of RJ45 connector must
comply with internaonal standard of EIA/TIA
568A or EIA/TIA 568B.
MODEL
Product name
Power Supply
Network port
parameter
Network switch
specification
Indicator
SW-UF16P2GV-060
16 ports 10/100Mbps IEEE 802.3af/at PoE switch
Power Supply mode
Voltage range
Power consumption
Network Port
Transmission distance
Transmission medium
PoE standard
PoE power supply mode
PoE power supply wattage
Network standards
Swap mode
Data-caching mechanism
MAC address list
Throughput
Power indicator
Uplink gigabit port
PoE indicator
PoE network port indicator
Built-in power supply
AC 96~264V
The device 10W <
PoE power supply ≤200W
Ethernet downlink RJ45 port : 16 x 10/100Mbps
Gigabit uplink RJ45 port: 2 x 10/100/1000Mbps
Downlink port: 100m
Uplink port: 100m
Downlink port: Cat5e/6 standard cable
Uplink port: Cat5e/6 standard cable
IEEE802.3 af/at standard
End-span method
Each port ≤30W
Whole device 200W≤
IEEE802.3, IEEE802.3ab, IEEE802.3ad
IEEE802.3u, IEEE802.3az
IEEE802.3z
Store and forward
4M
16K
5.3568Mbps
Red led on: power on
Green led on: link up
Green led off: link down
Green led blinks: data transfer
16 PoE indicator (yellow)
16 port indicators blink white data transfer
Button
Protection level
Reliability
Mechanical
Environmental
Reset button
Surge protection
Electrostatic protection
Mean time btw failures
Dimension (mm)
Housing
Body color
Net weight
Operating temperature
Storage temperature
Relative Humidity
Press the reset button and the device restarts
2KV (common mode), 10/700us IEC61000-4-5
0.5KV (differential mode), 10/700us IEC61000-4-5
Contact Discharge: ±4KV
Air Discharge: ±4KV
Standard:IEC61000-4-2
>50.000h
300L x 221W x 43.6H
Galvanized
Black
2.5kg
0°C 55°C~
-40°C 85°C~
0~ 95% (non-condensing)
Quick Setup Guide
Step1: Begin with all input/output devices turned off with power cables removed
Step2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE
switches in standard Cat 5e/6 cables
Step3: Connect with Uplink RJ-45 port of PoE switches with RJ-45 port of NVR
or computer or other devices in standard Cat 5e/6 cables
Step4: Input AC power cord into power socket of PoE switch
Step5: Make sure above connection is properly finished, then turn on power
VLAN Introduction
At present, applications of Ethernet switch is very wide. To satisfy the needs of various
customers, it is urgent for network services to solve the problems of broadcast domains,
bandwidth and security, so a new kind of technology of VLAN emerged.
Each DOWNLINK RJ-45 port and UPLINK RJ-45 ports form a separate workstation
respectively. In the same VLAN workstation, regardless of which switch they are actually
connected to, the communication between them is as if they were on a separate switch.
Broadcasts in the same VLAN can only be heard by members of the VLAN, but not in
other VLANs, which can control the generation of unwanted broadcast storms. At the
same me, if there is no routing, different VLANs cannot communicate with each other,
which increases the security of different departments in the enterprise network.
When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK
RJ-45 ports, but DOWNLINK RJ-45 ports and UPLINK RJ-45 ports can communicate
with each other. The bandwidth of DOWNLINK RJ-45 ports is forced to 10Mbps mode to
adapt to the long distance transmission of max 250meters. The bandwidth of UPLINK
RJ-45 port is 1000Mbps, which keeps a cascade connecon with another switch or NVR.
Note:
When you turn on VLAN button, please press reset button or reboot the power of
the device, than VLAN mode is enabled.
