| LSK18/LSK24/LSK30 OUTDOOR BUILT-IN SINK CARE & USE/INSTALLATION
CARE & USE/INSTALLATION
MAKE THE MOST OF YOUR

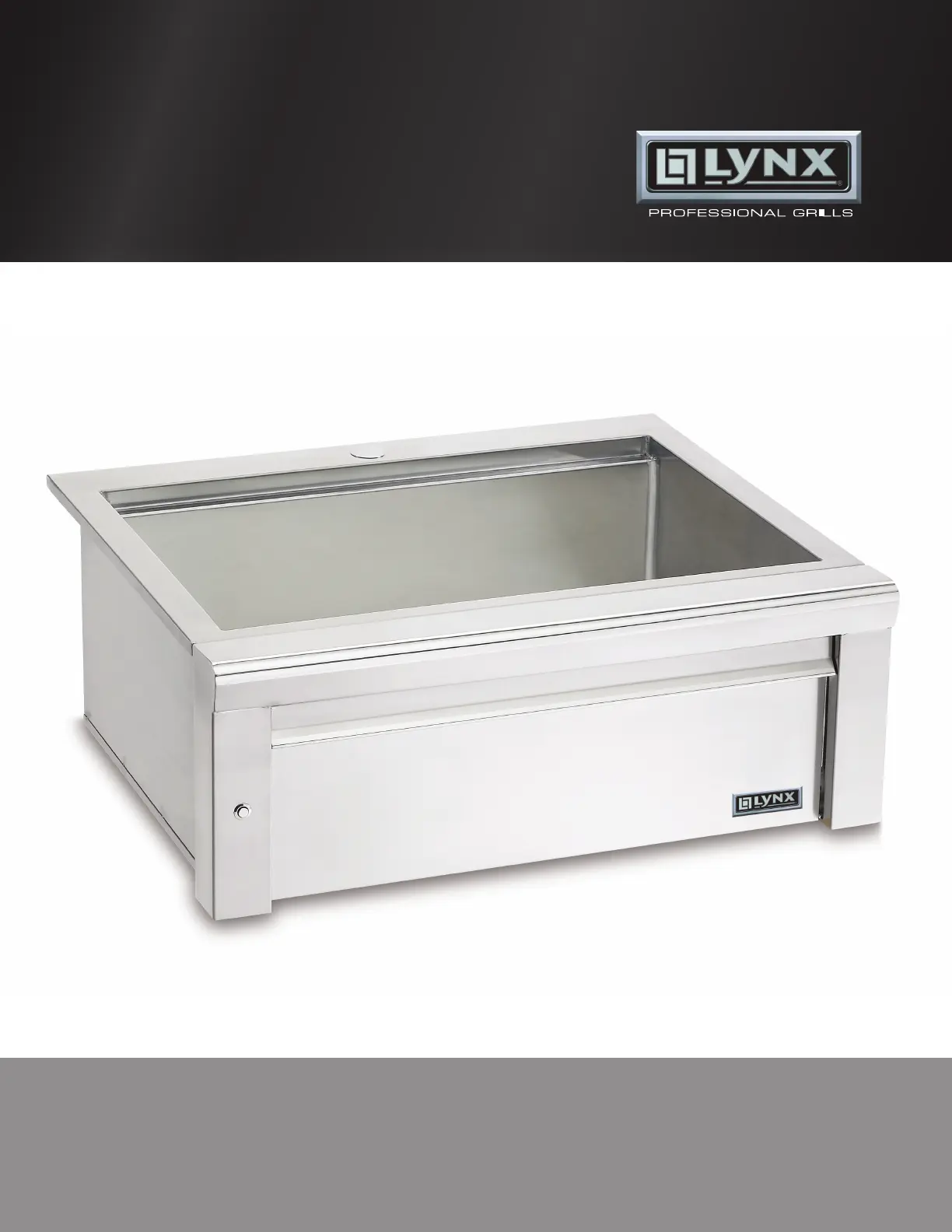

LSK18/LSK24/LSK30 Outdoor Built-In Sink
Sink shown without faucet. The Model LFK is available separately from Lynx Grills.
2
| LSK18/LSK24/LSK30 OUTDOOR BUILT-IN SINK CARE & USE/INSTALLATION
Cutout Dimensions Exterior Dimensions
Cut-out Dimension
Specifications Width A Height B Depth C Width D Depth E Depth F
LSK18 17 10½ 22 18 251
/8221
/8
LSK24 23 10½ 22 24 251
/8221
/8
LSK30 29 10½ 22 31 251
/8221
/8
Countertop notch detail: a 1/2” width is required
with a depth equal to the countertop overhang.
Sink shown without faucet. The Model LFK is available separately from Lynx Grills.
INSTALLER: Read these instructions carefully before starting installation. Please leave these instructions with
the homeowner.
HOMEOWNER: Please retain these instructions for future use
EXTERIOR DIMENSIONS
INSTALLATION PREPARATION
The Lynx sinks are designed for outdoor use. It is recommended that the sink be installed by a qualied technician
in accordance with all local plumbing and building codes.
Prepare the countertop by cung the appropriate cutout dimensions from the table above. There must be a
minimum of a 1/2” overlap on the sides and rear of the sink on the countertop to support the sink. Adequate
clearances below the sink must be maintained for maintenance, water, and drain lines.
PN #34685 Rev. A 08/2014
Exterior DimensionsCutout Dimensions
E
F
D
3
| LSK18/LSK24/LSK30 OUTDOOR BUILT-IN SINK CARE & USE/INSTALLATION
INSTALLING THE DRAIN ASSEMBLY
For ease of installaon we recommend that the drain assembly be installed before installing the sink into the
countertop.
1. Remove the drain assembly from the box and idenfy the following parts:
INSTALLING THE DRAIN ASSEMBLY
a. Drain Plug/Strainer Basket
b. Upper Drain Fing
c. Rubber Gasket
d. Paper Gasket
e. Locknut
f. Tailpiece
g. Threaded Coupling
Sink Boom
2. Remove the drain plug strainer basket (a) and separate the upper drain ng (b) from the remainder of the
drain assembly.
3. Place a bead of Plumbers Puy* around the underside of the upper drain ng. Drop the upper drain ng
(b) into the sink boom opening and press it rmly into place. From the boom of the sink posion the rubber
gasket (c) and then the paper gasket (d) on the upper drain ng (b). The paper gasket (d) is used to prevent
kinking of the rubber gasket (c) while ghtening the locknut (e).
4. Align the drain assembly so that it sits centered in the sink drain cut-out. Screw the locknut (e) on to the upper
drain ng (b) threaded connecon unl it is . Now use a tool to ghten the locknut (e) another hand ght
quarter turn.
5. Remove any excess Plumber Puy with a damp cloth.
* Plumbers Puy is available at most home improvement centers. Plumbers puy is an
easy-to-mold seng compound for use with stainless steel sealing applicaons. Do Not Omit This Step.
Sink Opening
