Seite 1/20
1
LCS30 COCKTAIL STATION CARE & USE/INSTALLATION
|
CARE & USE/INSTALLATION
MAKE THE MOST OF YOUR
LCS30 COCKTAIL STATION

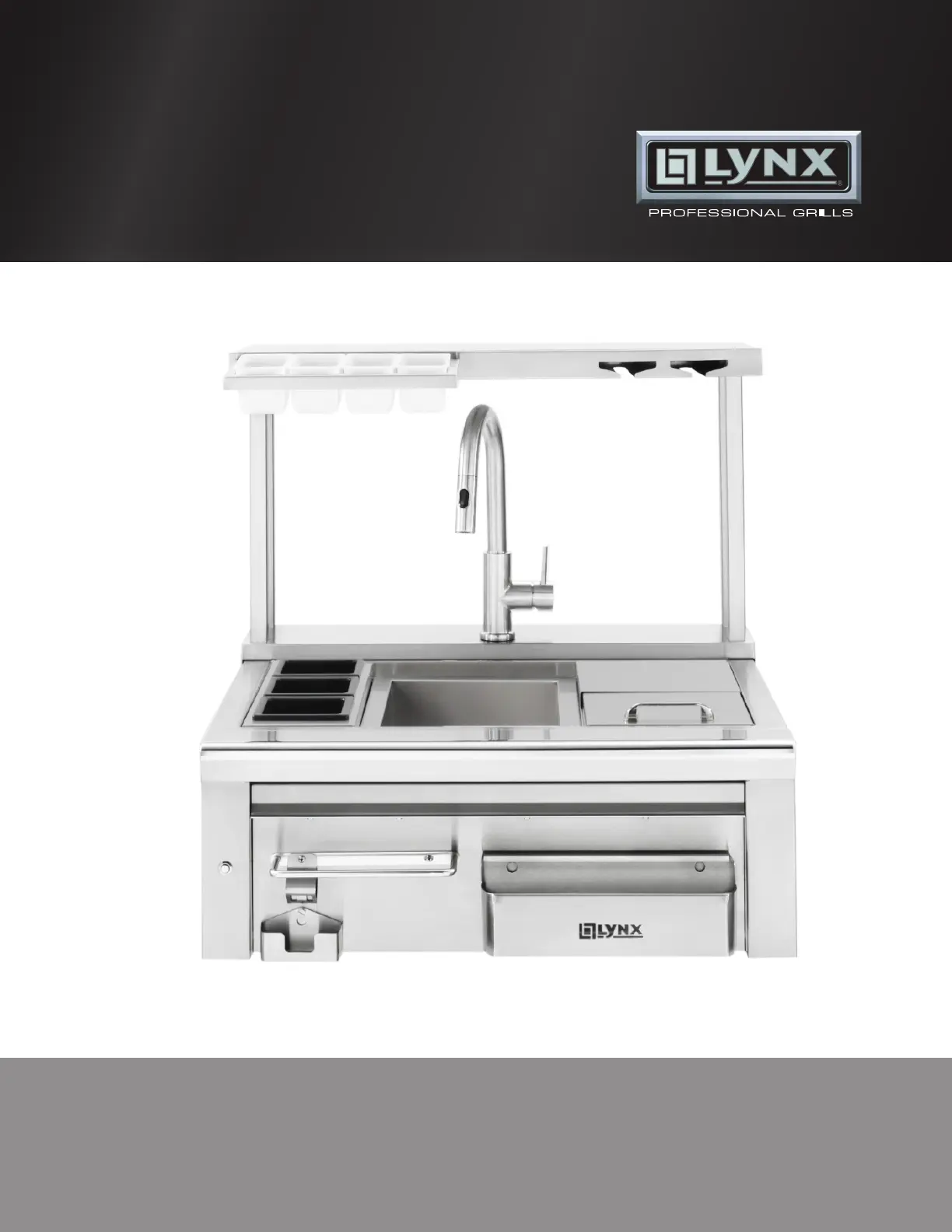

LCS30 shown with pass shelf (LCSPS) which is available separately from Lynx Grills.
LCS30 COCKTAIL STATION CARE & USE/INSTALLATION
|3
Cutout Dimensions Exterior Dimensions
Cut-out Dimension
Specifications Width A Height B Depth C Width D Depth E Depth F
LCS30 29 10½ 22 31 251
/8221
/8
Counter top notch detail: a 1/2” width is required
with a depth equal to the counter top overhang.
EXTERIOR DIMENSIONS
INSTALLATION PREPARATION
The Lynx sinks are designed for outdoor use. It is recommended that the sink be installed by a qualied technician
in accordance with all local plumbing and building codes.
Prepare the counter top by cung the appropriate cutout dimensions from the table above. There must be a
minimum of a 1/2” overlap on the sides and rear of the sink on the counter top to support the sink. Adequate
clearances below the sink must be maintained for maintenance, water, and drain lines.
Exterior DimensionsCutout Dimensions
E
F
D
INSTALLER: Read these instructions carefully before starting installation. Please leave these instructions with
the homeowner.
HOMEOWNER: Please retain these instructions for future use
