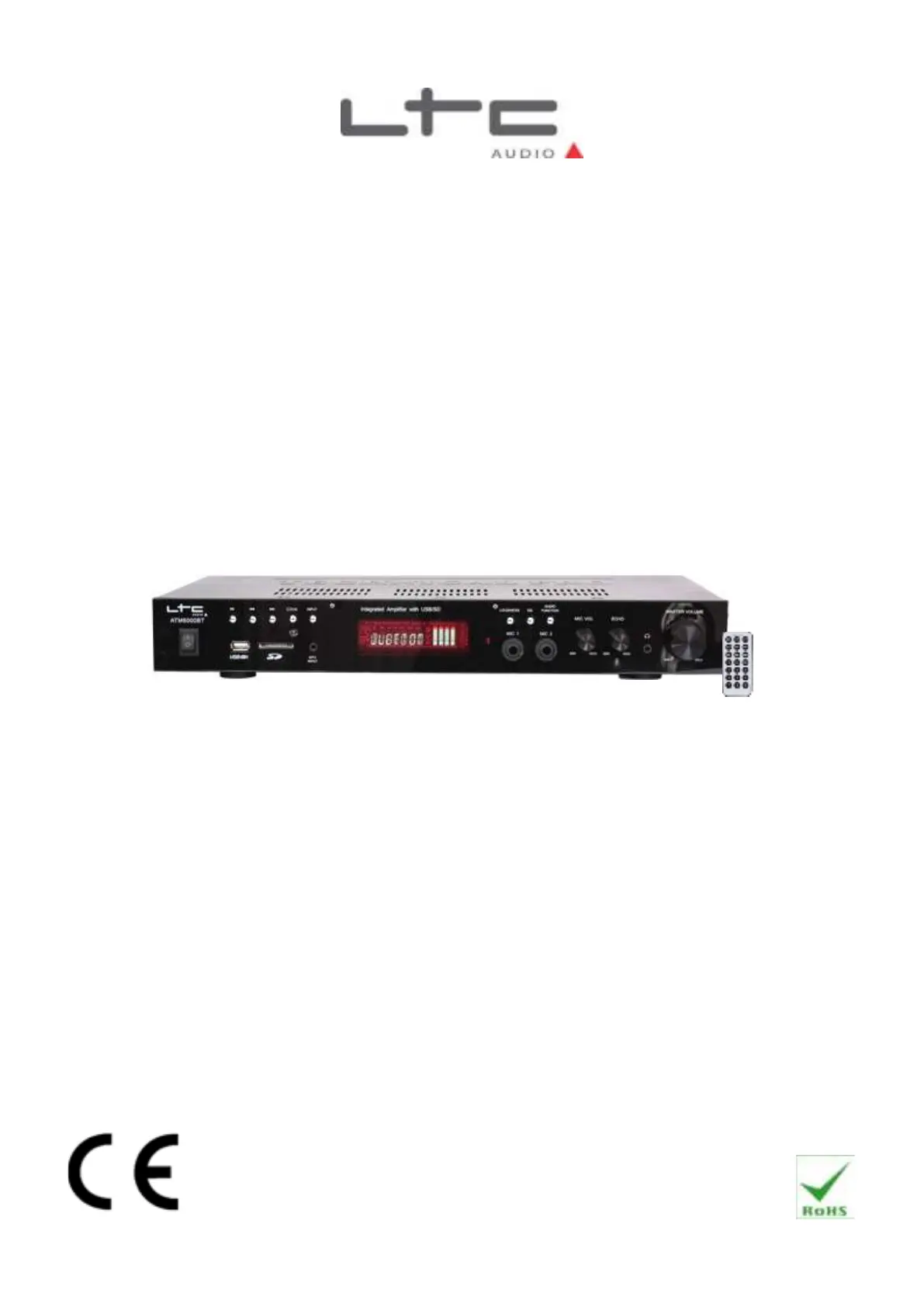

HIFI STEREO AMPLIFIER WITH BLUETOOTH & KARAOKE FUNCTION

AMPLIFICATEUR HIFI STEREO AVEC FONCTION BLUETOOTH & KARAOKE

HIFI STEREOVERSTÄRKER MIT BLUETOOTH & KARAOKE FUNCTION

AMPLIFICADOR HIFI STEREO CON FUNCIÓN BLUETOOTH & KARAOKE

AMPLIFICADOR HIFI STEREO COM A FUNÇÃO BLUETOOTH & KARAOKE

HIFI STEREO OJAČEVALEC Z BLUETOOTH & KARAOKE FUNKCIJO

AMPLIFICATOR DE PUTERE PROFESIONAL CU FUNCTIE BLUETOOTH

ATM6000BT

GB -USER

MANUAL

F - MANUEL D’UTILISATION

D - BEDIENUNGSANLEITUNG

NL – HANDLEIDING

E – MANUAL DE USO

P- MANUAL DE INSTRUÇÕES

SLO - PORABO NAVODILA ZA U

RO - MANUAL DE UTILIZARE

©Copyright LOTRONIC 2015 ATM6000BT 1

SAFETY RECOMMENDATIONS

• Before using the device, please check it for any possible damages. In case of damage do not operate it.

• Unplug the UNIT if you do not use it for a certain time.

• Do not expose the unit to mechanical stress and humidity.

• Ensure sufficient ventilation around the unit. Do not cover the device and protect it from direct solar radiation.

• Clean the device with a dry and soft cloth only.

• Caution! Should the device itself get damaged, please let the repair to the manufacturer or to a qualified service

agent.

• The unit must be connected to an earthed mains outlet only.

• Keep out of the reach of children

• DISCONNECT DEVICE

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain

readily operable.

Features

• Black Piano finish

• FM Tuner

• USB/SD card input

• VFD to display track title, track no & elapsed time

• 2 microphone inputs with Echo & volume control

• MP 3 input

• Headphone output

• Bluetooth function

Front panel

POWER: Press this button to power ON or OFF the unit

Play/Pause: Press this button to play the signal from USB/SD, Bluetooth. Press again to pause

Previous: Press this button to go back to the beginning of the current track or move to the previous track.

Next: Press this button to move to the next track.

Repeat/Random: Press this button to select the repeat mode between REPEAT ONE, REPEAT ALL, RANDOM. The default

setting is repeat all.

Input: Press this button to cycle through the various inputs.

USB: Connect your USB flash drive here

SD: Connect your SD card here

MP3 input: Connect your MP3 here

LOUDNESS: Press this button to adjust the loudness

EQ MODE: Press this button to the precycle through -set equalizer modes.

Audio Function: Press this button to switch the control mode between bass, treble & master volume

MIC1 & MIC2: Connect your microphones here

MIC VOL: Use this knob to adjust the microphone volume

©Copyright LOTRONIC 2015 ATM6000BT 2

ECHO: Use this knob to adjust the echo of microphone.

Headphone Output: Connect your headphone here

Master Volume: Use this knob to control the master volume

OPERATION

Select a central location for the amplifier.

Connect the speaker wires (red & black) to the + and – terminals on the rear panel of the amplifier.

Connect the audio signal to the relevant sockets with the correct polarity.

Plug the mains lead in and switch the amplifier on once you have checked all connections.

Switch the audio sources on and adjust the master volume to the required level.

Karaoke: Plug a mic into MIC1 or MIC2 socket on the front panel. Before you use the mic, make sure that it is switched off

and the MIC volume button is set to the minimum. Connect the microphone, switch it on and adjust slowly the volume

and the echo.

If you don’t use the unit any longer, switch the amplifier off and disconnect it from the mains.

Signal Sources and their Connections:

• Connect a DVD-player or a CD player to the terminal AUDIO INPUT or a data storage unit to the USB- -interface or insert

a SD-memory card in the suitable slot or activate the Bluetooth function on your smartphone.

• Select the active signal source by pressing the INPUT button until the desired input source is displayed.

• Use the MP3 CONTROL-function for controlling the files on a connected data storage unit.

• If you wish to use the karaoke function of this device, insert one or two microphones into MIC1 and MIC2. Their

signals are going to the signal output too.

Bluetooth Connection

The ATM6000BT is only discoverable when the input selected is Bluetooth. After selecting Bluetooth input mode on the

ATM6000BT, turn on the Bluetooth function on the cell phone and search the ATM6000BT. Its Bluetooth device name is

“ATM6000BT”. Pair and connect after search. There is no pairing code.

Rear Panel:

Power supply: Connect the unit to the power outlet.

Main Speakers Outputs: Connect your speakers here to receive the signal from the ATM6000BT

LINE OUTPUT: Connect this jack to the input another amplifier or active speaker. The signal coming out from this jack is

passive and cannot be connected to another passive speaker.

DVD Input: Connect your DVD or CD or any other passive . signal here

AUX Input: Connect your DVD or CD or any other passive signal here.

Specifications:

Output Power: .............................................................................................. W 2 x 50

Power supply: ..................................................................... AC 220 240 V ~ 50/60 Hz-

Frequency Response: – .......................................................................... 20 20000 Hz

Input Sensitivity: ............................................................................................. 450 mV

Signal Noise- - Ratio (S/N): ................................................................................ ≥ 76 dB

Impedance: ............................................................................................................ 8 Ω

©Copyright LOTRONIC 2015 ATM6000BT 3

Produktspezifikationen

Marke:	Lotronic
Kategorie:	Empfänger
Modell:	ATM6000BT
Kopfhörer-Anschluss:	3,5 mm
Breite:	430 mm
Tiefe:	55 mm
Gewicht:	2000 g
Produktfarbe:	Schwarz
Übertragungstechnik:	Verkabelt & Kabellos
Impedanz:	8 Ohm
Höhe:	20 mm
Zweck:	Haus
AC Eingangsspannung:	220-240 V
AC Eingangsfrequenz:	50 - 60 Hz
Eingebautes Display:	Ja
Kopfhörerausgänge:	1
Anzahl USB 2.0 Anschlüsse:	1
Lautstärkeregler:	Drehregler
Fernbedienung enthalten:	Ja
Audio Kanäle:	2.0 Kanäle
THD, totalklirren:	- %
Rauschverhältnis (SNR):	76 dB
RMS Leistungsoutput pro Kanal (2 Ohm):	50 W
Eingang Empfindlichkeit:	450 mV
Leistungshöhepunkt pro Kanal:	50 W
RMS Leistungsoutput pro Kanal (1 Ohm):	50 W
