V261LCD-EG_QSG_EN_R1

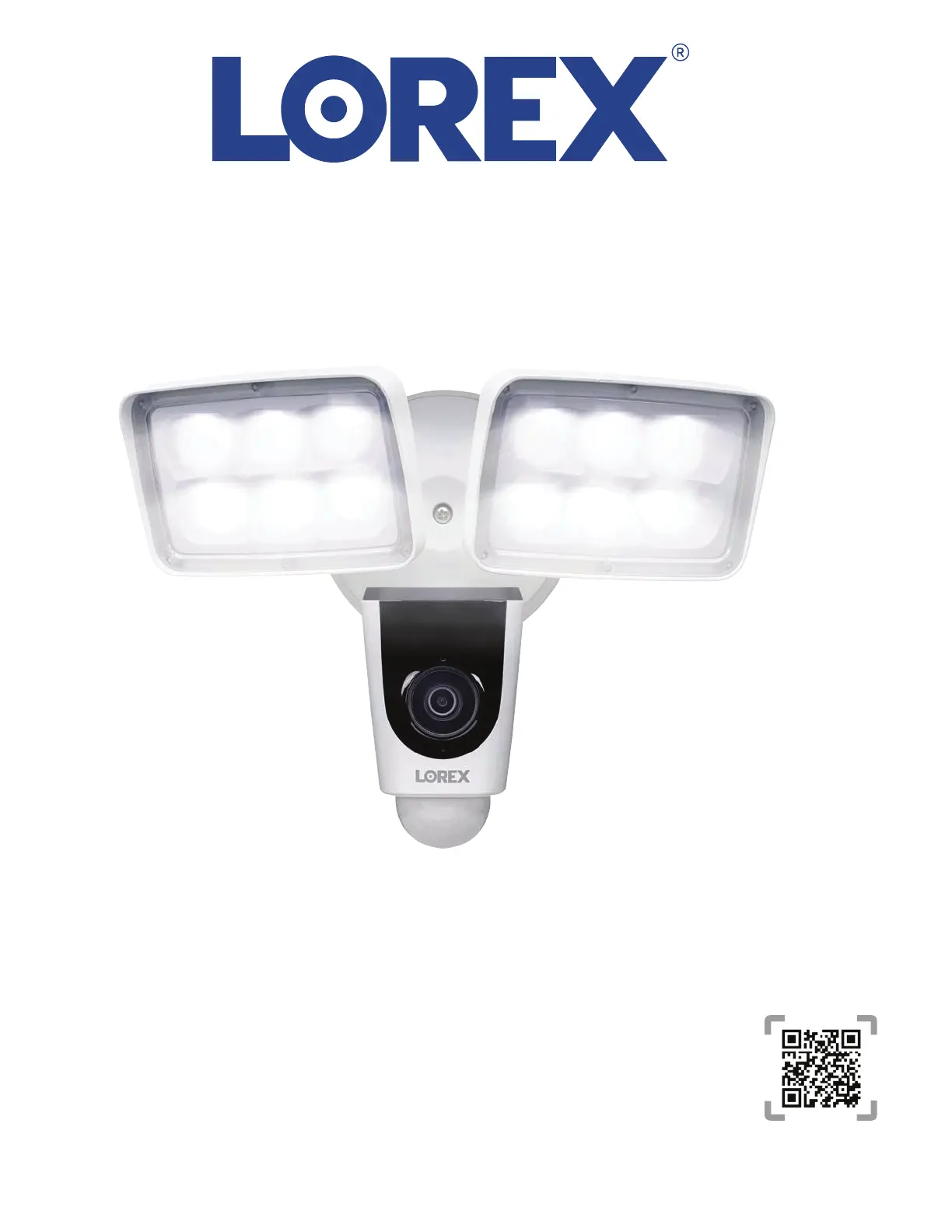

1080p Wired Floodlight
To prepare for installation:
Before assembly, there are important preparations to make.
Leveled to the ground
• TURN OFF POWER TO YOUR
FLOODLIGHT CIRCUIT AT THE
FUSEBOX TO ENSURE NO
POWER IS BEING SENT. If you
are unsure of which breaker
controls the circuit, then turn
off the main power switch.
If you do not know where
your breaker is or how to turn
off power, consult a licensed
electrician.
• Verify that the supply voltage
is correct. Connect xture to a
100 VAC~240 VAC 50/60 Hz
power source.
• DO NOT connect oodlight to a
dimmer switch or timer.
• If you are not replacing a light
xture, you will need to run
power cabling to the install
location, and purchase a
UL listed junction box for a
licensed electrician to install.
LED Indicator
Quick Start Guide
V261LCD-EG
lorex.com
1080p Wired Floodlight
Package Contents
STEP 1: Preparation
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
Click on the tabDownloads
4
Visit lorex.com
Search for the model
number of your product
Click on your product
in the search results
3
2
1
Copyright © 2022 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to
modify product design, specications and prices, without notice and without incurring
any obligation. E&OE. All rights reserved.
Mounting Screws,
Anchors & Silicone Gaskets
(×3)
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh,
chemical-based cleaners.
• Use the product within given temperature, humidity and voltage levels noted in the
product’s specications.
• Do not disassemble the floodlight.
Safety Precautions
• Always follow code standards when installing wired connections.
• This floodlight camera must be installed on a wall and a UL listed junction box.
• This floodlight includes an Auto Mechanical IR Cut Filter. When the camera
changes between Day/Night viewing modes, an audible clicking noise may be
heard from the floodlight. This clicking is normal, and indicates that the camera
lter is working.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation
assumes no liability for use of its products that does not conform with local laws.
Disclaimers
CAUTION
Risk of re.
Do not install camera near flammable or combustible surfaces.
Risk of electrical shock.
Disconnect the power at the fuse box before installation.
Hooks
Mounting Bracket
11.4”
290mm
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
FCC Notice
Product Overview
PIR motion sensor
Speaker
Microphone
Camera
IR LED
Top cover
Light sensor
Memory slot*
Reset button
Floodlights
Adjusting knobs
Phillips Machine Screw
10 Feet
32 Feet
12.8” / 325mm
7.3” / 185mm
Mount the floodlight camera 10 feet (3 meters) high with the
motion detector levelled to the ground for optimal detection of
human-sized objects as far as 32 feet (10 meters).
Recommendation:
Front Panel
Back Panel
Behavior Meaning
(steady) Operating correctly.
(flashing) Ready for connection.
(flashing rapidly) Mobile device is attempting to connect to the camera.
(steady) Device malfunction. Press and hold the reset button until you hear a chime, and then repeat the setup.
(flashing) Network connection failed. Press and hold the reset button until you hear a chime, and then repeat the setup.
(flashing rapidly) Memory slot error. Try removing and re-inserting the included memory slot card, or try a different card.
(alternating) Firmware upgrade in progress.
* To access the memory slot and reset
button, twist left to open the top cover.
Philips machine screw
V261LCD-EG_QSG_EN_R1
Next, install the floodlight’s mounting bracket. Next, install the floodlight camera.
STEP 2: STEP 4: Secure the Mounting Bracket Secure the Floodlight
1
from the Hang the oodlight camera
mounting bracket using
the supplied .hooks
2
Connect the to the .Neutral wires (blue*) N terminal
Connect the to the .Live wires (brown*) L terminal
Connect the to the Ground wire (green/yellow*)
ground terminal.
1. Carefully put away all the wires into the bracket.
2. Insert the through the center hole and secure Phillips machine screw
the floodlight camera to the mounting bracket.
Hook one end into your floodlight camera.
Hook the other end into the bracket.
Overview of Lorex Home app
STEP 3: Connect the Wires
Back to
previous
screen
Device
settings
Device name
Lorex Floodlight
Pause / Play FullscreenViewing
modes
Mute /
Unmute
Streaming
quality*
Play back
recorded
video
Snapshot
Siren
Manual
recording
Light
2-way audio: tap to speak, tap again to disable
* Change the streaming quality to SD (Standard Denition) to conserve bandwidth while
watching live video. This will not impact the quality of recorded video.
Live viewing screen: To congure the oodlight motion detection:
Overview of the most common screens and controls
in the Lorex Home app. For complete instructions on
using the app, see the Lorex Home app manual on the
floodlight’s product page at .help.lorex.com
To wire the oodlight:
IMPORTANT: Properly ground xture.
* Power wire colors in your home may be
different. In such a case consult a licensed
electrician.
Floodlight Password:
1. Once the status LED on the floodlight is flashing green, tap in Next
the Lorex Home app. The app will connect your mobile device to the
floodlight’s hotspot.
2. Create a secure password for the floodlight. Record your floodlight
password below and store in a secure location:
1. Tap .Device Settings
2. Tap .Floodlight Settings
3. is set to by default. Tap to change the floodlights from Mode Motion Activation
being activated by motion detection to . Manually turn the floodlights on and Manual
off in the live screen view.
4. Tap :PIR Area
3. Select your Wi-Fi
network from the list,
then enter the Wi-Fi
password to connect
your floodlight to the
Internet.
To link the oodlight:
4. Once the status LED on the floodlight is solid green, tap to add Next
the floodlight to your Lorex Home account.
5. Set a name for the floodlight and congure date & time preferences,
then tap .Complete
STEP 5: In-app Setup
Next, connect the floodlight camera to the Lorex Home app.
NOTE: If the Wi-Fi
connection is weak,
try moving your router
closer or adding a Wi-Fi
extender.
1. Download and install the free Lorex
Home app from the App Store or
Google Play Store.
2. Tap the Lorex Home icon to launch the
app. Tap , then follow the on Sign up
screen prompts to create an account.
Record your account details below and store in a secure location:
Email:
Account Password:
To scan the QR code:
3. Wait for the floodlight to
start up. This may take
up to 5 minutes after
reconnecting power at
the breaker.
4. Once the status LED on
the floodlight is flashing
green, tap + in the Lorex
Home app.
5. Scan the QR code on the
side of the floodlight
camera using your
mobile device’s camera.
NOTE: If your mobile
device cannot scan the
QR code, tap Manually
enter Device ID.
3. Adjust the camera and floodlights using the adjusting knobs.
4. You may now restore power at the fusebox.
NOTE: If the status LED on the floodlight camera does not turn on, check
to make sure wiring is done correctly.
5. is set to by default.Tap to change the floodlight’s length of Light Duration 1 minute
time when activated from motion detection.
Slide the bar on the left to
adjust the distance at which
motion will activate your
floodlights.
Tap the (s) on or off to Zone
activate motion detection
from three different areas.
Tap .Save
A.
B.
C.
A
B
C
A
B
1. With the power shut off, remove the
existing light xture from the wall.
2. Disconnect the wires.
3. On the floodlight, loosen the center
screw by using a Phillips head
screwdriver, and then separate the
floodlight from the mounting bracket.
4. Gently pull and remove the terminal
board.
5. Place the mounting bracket on the
desired location and mark 2 holes.
NOTE: Be sure to follow the ”Up”
direction on the mounting bracket.
6. Use a 1/4” drill bit to drill in the marked
holes.
7. Install the supplied mounting anchors
into the drilled holes with a hammer.
8. Slide the onto the silicone gaskets
mounting screws.
9. Run the wires through the cable entry.
10. Align the bracket and use a Phillips
head screwdriver to secure the
supplied into the mounting screws
mounted anchors.
3
Push the terminal board back onto the two pegs in
the mounting bracket.
Connect the existing wall wires:
