• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (92m), a switch will be required

(sold separately).

Audio Settings

ATTENTION:

Audio recording without consent is illegal in certain jurisdictions. Lorex

Corporation assumes no liability for use of its products that does not

conform with local laws.

Audio is disabled by default. To enable camera audio through a Lorex HD NVR:

NOTE: These instructions are based on current Lorex HD NVR interface. For more

information, see your NVR’s instruction manual on .lorex.com

A. Under , select the channel Channel

that the audio-enabled camera is

connected to.

B. Under , select .Type Continuous

C. Check the check box to enable audio

for Main Stream.

D. You can also enable audio for Sub

Stream. Check the check box to enable

audio for Sub Stream.

E. Video must be enabled for Sub

Stream to enable/disable audio.

F. Click to save your changes.Apply

5. Click . OK

NOTE: You must enable audio for all recording types under the Type dropdown.

Repeat the above steps to enable camera audio for all recording types.

C D E

1. In Live View, right-click anywhere on the screen to open the Quick Menu.

2. Click If prompted, enter the system user name and password. Main Menu.

3. Click and select Recording > Recording.

4. Conﬁgure the following:

LNE8964_LNE8974_QSG_EN_R1

4K Motorized Varifocal HD IP Dome

Security Camera with Audio

• 4K Motorized Varifocal HD IP Dome Security Camera

• Mounting Kit*

• Mounting Template*

• CAT5e Ethernet Extension Cable with Pre-attached

RJ45 Cable Gland*

• Allen Key*

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels

noted in the camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of

intense light.

• Use only the supplied regulated power supply provided with the

product. Use of a non-regulated, non-conforming power supply can

damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use

any harsh, chemical-based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall

and ﬂoor-to-ﬂoor installations are sold separately (CMR type). These

and other cables are available at lorex.com

* Per camera in multi-camera packs.

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

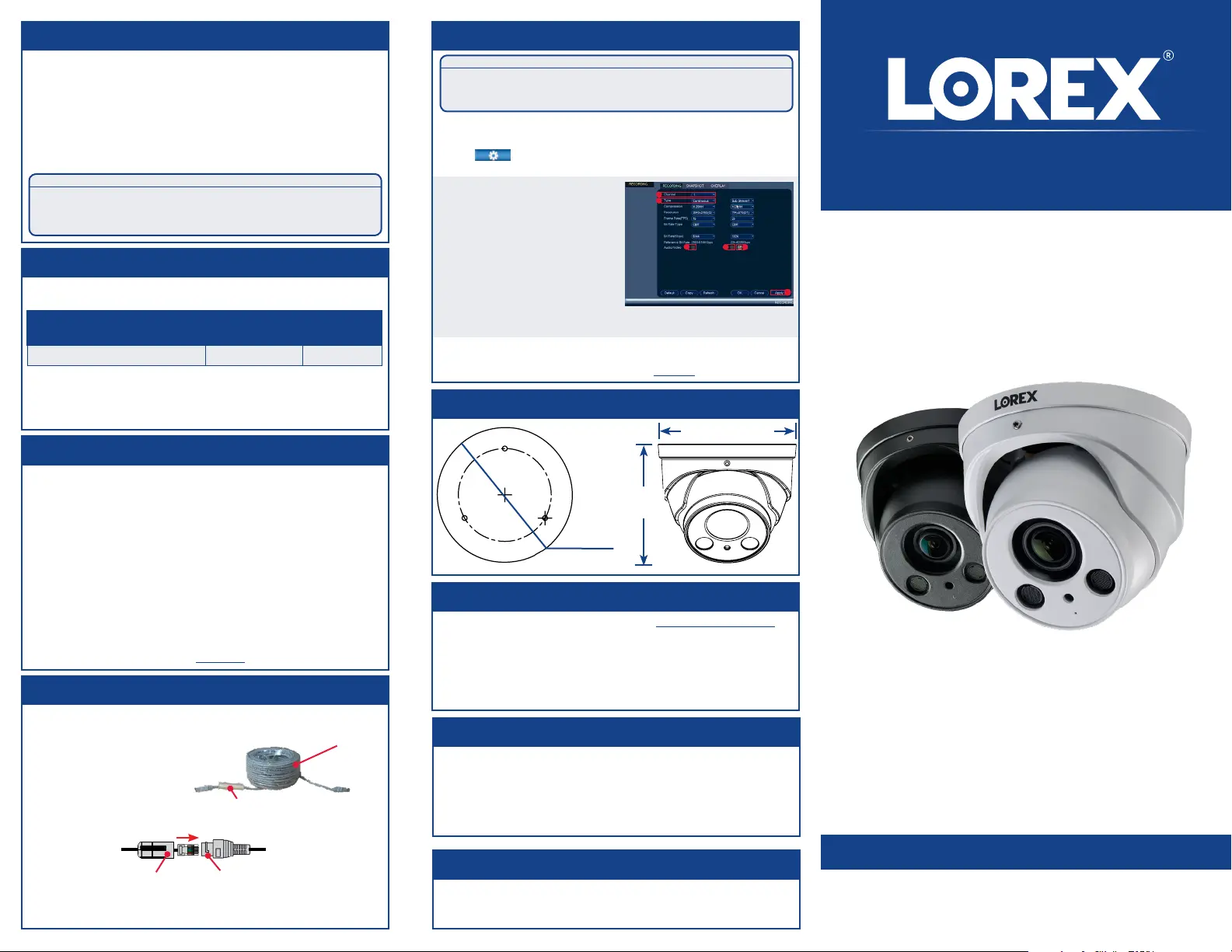

Quick Start Guide

English Version 1.0

LNE8964A / LNE8974A SERIES

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE switch. If

using a DC power adapter (not included) with the camera, a REGULATED power supply

is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power

supply can damage this product and voids the warranty.

Safety Precautions

Dimensions

www.lorex.com

Extend the cable run for your camera. Additional extension cables sold

separately. See table below:

Cable Extension Options

Cable Type Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (92m) 3

• For a full list of compatible recorders, visit lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered

location recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the

camera changes between Day/Night viewing modes, an audible clicking

noise may be heard from the camera. This clicking is normal, and

indicates that the camera ﬁlter is working.

Disclaimers

4.8” /

122mm

4.8” / 122mm

4.1” /

105mm

• Point the camera where there is the least amount of obstructions

(i.e., tree branches).

• Install the camera where vandals cannot easily reach.

• Secure cabling so that it is not exposed or easily cut.

• This camera is rated for outdoor use. Installation in a sheltered

location is recommended.

Installation Tips

CAT5e

Ethernet

Extension

Cable

RJ45 Cable Gland

Using the RJ45 Cable Gland (Optional)

The RJ45 cable gland is pre-attached to the

included CAT5e ethernet extension cable.

The RJ45 cable gland covers the camera’s Ethernet connector and the RJ45 plug to

provide weather-resistance and protection from dust, dirt and other environmental

contaminants.

To use the RJ45 cable gland:

RJ45 Cable

Gland Barrel

Camera Ethernet

Connector

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or

electrical tape for additional sealing if it will be exposed to precipitation regularly.

Twist the RJ45 cable gland barrel securely onto the camera Ethernet connector.

To install your camera:

Installing the Camera

Connect the Ethernet cable to

the camera.

Connect the other end of the

Ethernet cable to the NVR’s PoE

ports. The camera may take a

minute to power up after

being connected.

Connecting the Camera

LNE8964_LNE8974_QSG_EN_R1

Problem Solution

No picture / signal • Ensure the camera is connected to a compatible NVR. For full

camera compatibility, visit lorex.com/compatibility.

• The camera may take up to 1 minute to power up after being

connected to the NVR. Wait two minutes before following the

steps below.

• Ensure the camera is connected to your NVR or to your local

network.

• If you are not using PoE, you must connect the camera to a

12V DC power adapter (not included).

• If the camera is connected to the LAN, you must search your

network for cameras using the NVR. See the NVR’s instruction

manual.

• Ensure your NVR is properly connected to a TV/monitor.

• There may be an issue with your extension cable run. Connect

the camera to the NVR using a different Ethernet cable.

Picture is too bright • Ensure your camera isn’t pointed directly at a source of light

(e.g., sun or spot light).

• Move your camera to a different location.

• Check the brightness and contrast settings on the NVR.

Picture is too dark • Check the brightness and contrast settings on the NVR.

Night vision is not

working

• The night vision activates when light levels drop. The area may

have too much light.

Picture is not clear • Check the camera lens for dirt, dust, spiderwebs. Clean the

lens with a soft, clean cloth.

• Make sure that the cable run is within the limitations speciﬁed

in the section ‘Cable Extension Options’.

Bright spot in video

when viewing camera

at night

• Night vision reﬂects when pointing a camera through a

window. Move the camera to a different location.

Picture is in color in

dark conditions

• This camera comes with an image sensor that is extra

sensitive to light, meaning that the camera stays in color

mode at low-light conditions. For instructions on how to make

your camera switch to night mode, visit lorex.com, and search

for “How do I make my camera switch to night mode?”

No audio • Audio is only supported on Lorex HD NVRs. For a list of

compatible recorders, visit lorex.com/compatibility.

• Ensure NVR volume is turned on / turned up.

• Ensure audio function on camera is turned on (see ‘Audio

Settings’).

• Ensure audio is turned up on viewing device.

Troubleshooting

ATTENTION:

Test your camera prior to selecting a permanent mounting location by temporarily

connecting the camera and cable to your NVR.

Before Installing the Camera

• Decide whether to run the cables through the wall /

ceiling (drilling required) or along the wall / ceiling.

• If you run the cables along the wall / ceiling, you must

run the cable through the on the base. This cable notch

will keep the camera base ﬂush to the surface when

mounted.

Connect the other end of the

Ethernet cable to a router or

switch on your network. See

your NVR manual for details on

connecting the camera to your

NVR using a switch or router.

Camera NVR

Setup Diagram

CameraHD NVR

Scenario 1: Connect Cameras to NVR

Scenario 2: Connect Cameras to Local Area Network (LAN)

Router

Camera

HD NVR

Router

PoE Switch

(Optional)

12V DC Power

ATTENTION:

This camera is only compatible with select NVRs. For a list of compatible

recorders, visit lorex.com/compatibility.

Ethernet Cable

NOTES:

• For weatherprooﬁng instructions,

see “Using the RJ45 Cable Gland

(Optional)”.

• A 12V DC power adapter (model#:

ACCPWR12V2A, not included) is

only required if connecting the

camera’s Ethernet cable to a

router or switch that does not

support PoE.

Adjusting Zoom and Focus

Cable

Notch

Mounting

Surface

Camera Base

Ball Camera

Dome Cover

Screw Dome Cover

1. Use the included Allen key to loosen the screw on the dome

cover. Do not loosen all the way.

2. Separate the camera base, ball camera, and dome cover.

3. Use the included mounting template to mark holes for the

mounting screws and camera cable.

4. Drill holes for the mounting screws and camera cable.

5. Feed the camera cable through the camera base. If you are

running the cables against a wall or ceiling, make sure to

pass the cable through the cable notch as shown above.

6. Connect the cables as shown in the section ‘Connecting the

Camera’.

7. Mount the camera base to the mounting surface using the

included screws and optional drywall anchors.

8. Place the dome cover over the ball camera.

9. To attach the dome cover to the camera base:

Drywall Anchors

Mounting

Screws

10. Use the included Allen key to tighten the dome cover screw

halfway onto the camera base. Do not tighten all the way.

11. Move the ball camera to the desired position. Tighten the

dome cover screw all the way.

Adjust the camera’s zoom and focus using a compatible NVR.

For more information, see your NVR’s instruction manual on

lorex.com

Right-click on the

camera’s live view

and then click

AutoFocus. Use the

Need Help?

Visit us online for up-to-date software and

complete instruction manuals

Visit lorex.com

2Search for the model number of your product

4Click on the Downloads tab

3Click on your product in the search results

C. Attach the dome cover onto the camera base. Ensure that the

dome cover lays ﬂat against the camera base.

A. Angle the dome cover as shown below.

Camera Base

Indent

Metal Tab

Dome Cover

B. Align the protruding metal tab inside the dome cover with the

indent on the camera base.

Camera Base

sliders to adjust zoom and focus.

Produktspezifikationen

Marke:	Lorex
Kategorie:	Überwachungskamera
Modell:	LNE8964AB

Brauchst du Hilfe?

Wenn Sie Hilfe mit Lorex LNE8964AB benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Überwachungskamera Lorex

Lorex E891AB Bedienungsanleitung

7 Oktober 2024

Lorex DP181-42NAE Bedienungsanleitung

29 September 2024

Lorex Baby BB2411AC1 Bedienungsanleitung

8 September 2024

Lorex E842CA Bedienungsanleitung

5 September 2024

Lorex E842CAWP Bedienungsanleitung

5 September 2024

Lorex E842CAB Bedienungsanleitung

5 September 2024

Lorex LNE45DDW Bedienungsanleitung

3 September 2024

Lorex LNB45ABB Bedienungsanleitung

3 September 2024

Lorex W261AQ Bedienungsanleitung

3 September 2024

Lorex LNE45DDB Bedienungsanleitung

3 September 2024

Bedienungsanleitung Überwachungskamera

Neueste Bedienungsanleitung für -Kategorien-

Trebs CCD-401C Bedienungsanleitung

15 Oktober 2024

D-Link DCS-7510 Bedienungsanleitung

15 Oktober 2024

Foscam FI9900EP Bedienungsanleitung

14 Oktober 2024

Alecto DVC-215IP Bedienungsanleitung

14 Oktober 2024

Hikvision DS-2CD2326G2-IU Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2TD2166-15/V1 Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2DE7A245IX-AE/S1 Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2CD7A26G0-IZ(H)SY Bedienungsanleitung

11 Oktober 2024

Hikvision DS-2CE79DF8T-AZE Bedienungsanleitung

11 Oktober 2024

Hikvision DS-2XM6726G0-I(D)(S)(M)(/ND) Bedienungsanleitung

11 Oktober 2024
