Seite 1/4
BLUEDESIGNS.COM
©2017 Blue Microphones. All rights reserved. Blue Logo Oval are registered trademarks of Blue Microphones, LLC.

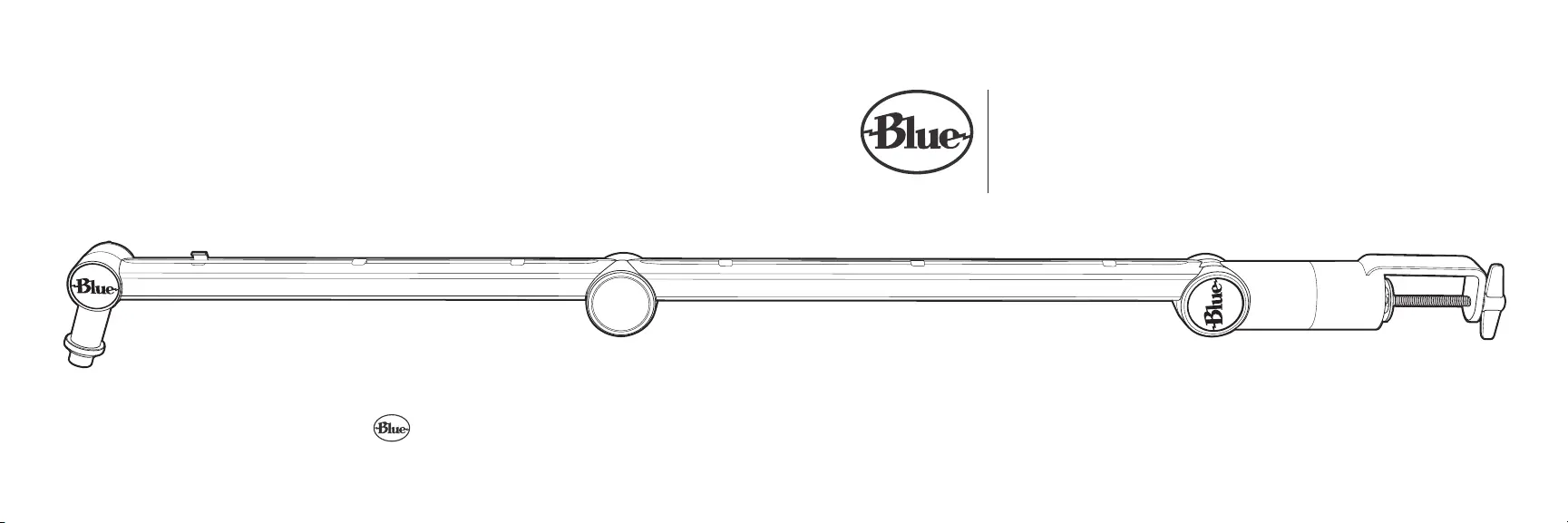

compass
PREMIUM TUBE-STYLE BROADCAST BOOM ARM
QUICK START GUIDE
REV A
Compass is a premium, tube-style desktop boom arm with internal springs and built-in cable
management, making it ideal for broadcast applications including game streaming, podcasting,
voice-over and more. With smooth, quiet operation and a sophisticated on-camera look,
Compass is the perfect boom arm for broadcast mics weighing up to 2.4 pounds,
including Yeti, Yeti Pro and Blackout Spark SL.
2 3
DESKTOP MOUNTING INSTRUCTIONS
Mount Compass to your desktop via the included C-clamp: Fixed mounting with the
desk-insert bushing
(sold separately, see bluedesigns.com)
If you would like to permanently mount
Compass to your desktop, please use
the following procedure:
Using an electric drill and a 1-inch hole saw bit, drill
a hole into the desktop at least 2.5inches from the
edges of the desk.
Unscrew the nut from the desk-insert bushing and
insert the bushing into the hole.
Screw the nut onto the bushing from the underside
of the desktop until it is tight and secure.
Lower Compass into the desk-insert bushing until it
is secure and rotates smoothly in both directions.
Unscrew the C-clamp and
slide it over the side of your
desktop, making sure that
both the top of the C-clamp
and the underside are
resting on flat surfaces.
Overly rounded or
overhanging desktop
edges do not make good
mounting surfaces.
Screw the lower part
of the C-clamp until it
is tight and secure.
Lower Compass into the C-clamp until it is
secure and rotates smoothly in both directions.
2.5in
1 2
3
4 5
CONNECTING A MICROPHONE
Microphones can be connected to Compass via a shock mount, microphone clip or internal threads
(if available on the mic). Compass supports shock mounts and mic clips with 3/8” threading,
or 5/8” via the included adapter. Microphones can be connected facing up,
or suspended upside down from Compass. To connect your microphone:
1
4
2
5
3
6
Screw your microphone’s
shockmount or mic clip
onto Compass so that
it is firm and secure.
Connect your microphone
cable to the mic, open the
snaps along the top side
of the boom arm tubes
and tuck the microphone
cable into the
hidden channel
Connect the microphone
to the shockmount
or mic clip.
Close the snaps over
the cable inside the
hidden cable channel.
Insert Compass into
the desktop C-Clamp
from step 3 above.
Adjust Compass so that it makes a
90-degree angle at the middle pivot
point. Confirm that the microphone
balances in the 90-degree position and
you can smoothly move it into the desired
position as necessary. If you have the
boom arm fully extended, you may need
to tighten the thumbscrew at the base of
the boom arm near the C-Clamp.
90º
