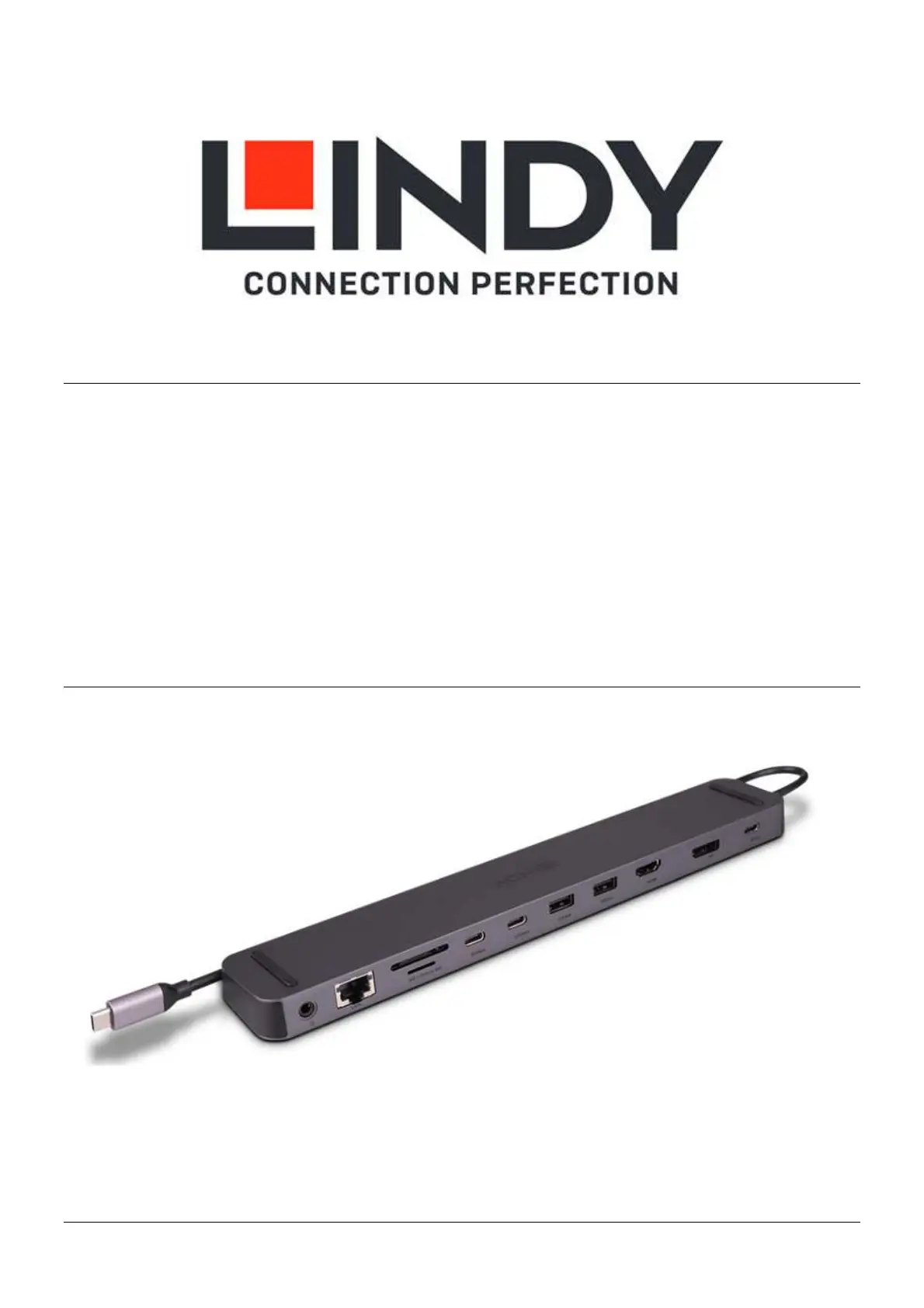

DST-Mini XT 810, USB-C Laptop Mini
Docking Station
User Manual English
Benutzerhandbuch Deutsch
Manuel Utilisateur Français
Manuale Italiano
Manual de Usuario Español
No. 43392
lindy.com
User Manual English
Introduction
Thank you for purchasing the Lindy USB-C Laptop Mini Docking Station DST-Mini XT 810. This product
has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty
and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it
for future reference.
The DST-Mini XT 810 is a high performance, multifunctional solution for connecting laptops, tablets or
mobile phones to a range of interfaces including an 8K 30Hz DisplayPort or HDMI display or two displays
simultaneously at 4K 60Hz*, using a single cable. It also supports video resolutions of 4K 120Hz, making
it the ideal tool for high resolution video editing or game streaming.
This docking station delivers a whole host of capable ports to connect your devices into your workflow.
With SuperSpeed USB and Ethernet, you can expect to have a blazing fast experience and improve your
productivity whilst the Card Readers (SD & Micro-SD) allow you to expand your storage capacity beyond
that of your device. Through a single USB-C cable, connect to multiple SuperSpeed 10Gbps USB Type A
or Type C ports, a 3.5mm combined headphone jack, Gigabit Ethernet, (Micro-) SD card slots, DisplayPort
and HDMI.
The Docking Station also supports Power Delivery 3.0 up to 100W for charging the connected laptop. A
power supply is not included. The dock can be used with the power supply supplied with the laptop or a
power supply can be purchased separately.
This USB-C Laptop Mini Docking Station is compatible with computers featuring the USB Type C port with
support for DisplayPort 1.4 Alternate Mode, i.e. USB4 or USB 3.2 as well as Thunderbolt 3 or TB4 host
devices. DST-Mini XT 801 comes in a stylish aluminium case and is optimally designed to place the laptop
on it with rubber feet at the top and bottom to ensure a secure hold.
*Please note that macOS does not support MST.
Package Contents
• USB-C Laptop Mini Docking Station
• Lindy manual
Specification
• Host Interface: USB 3.2 / 3.1 Gen 2 (Type C), compatible with Thunderbolt 3/4
• Connects up to 2 displays to your laptop: 1x HDMI and 1x DisplayPort
• Max. resolutions (Windows):
o Single Display: 7680x4320 30Hz or 3840x2160 120Hz
o Dual Display: 3840x2160 60Hz each (*Multi-Monitor Display is not supported when using
a Mac)
• HDCP Support: HDCP 1.4 & 2.2
• 3 Port USB 3.2/3.1 Gen 2 10Gbps Hub: 2x USB Type A and 1x USB Type C
• 1 Port USB 3.2/3.1 Gen 1 / USB 3.0 5Gbps Hub: USB Type C
• 1x USB Type C Power Delivery port (PD 3.0 up to 20V / 5A)
• Supports Gigabit Ethernet 10/100/1000Mbps (RJ-45 port)
• 1x SD and 1x microSD slot
• 1x 3.5mm Audio combo port (In/Out)
• Supported Audio: Sampling rate 192kHz/24bit
User Manual English
• Power requirements: 15W
• Compatibility: USB Type C or Thunderbolt 3/4 equipped computers with DisplayPort Alternate Mode
support; Windows, macOS, Linux, Android, ChromeOS
• Special Features: DisplayPort Alternate Mode, MST Extended display support for Windows, Battery
Charging 1.2 (only USB 3.2 Gen 2 Type C port), supports simultaneous card reading, PXE (Preboot
Execution Environment) and Wake on LAN (WOL), supports MAC Address Pass-through (this
feature is dependent upon the compatibility of the hardware used in each set up)
Overview & Installation
Plug the USB Type C cable of the Docking Station into a free USB port of the laptop.
Please Note: The Type C source connected must support DisplayPort Alternate mode. If the host
computer supports USB Power Delivery, it can also be powered/charged through a connected power
supply with up to 85W (the Docking Station needs 15W for its operation).
• Audio: 3.5mm stereo input/output to connect a headphone, speakers or a microphone
• LAN: Connect to a network LAN using a Cat.5e (or above) cable.
• SD/MicroSD: Card reader for SD and microSD cards
• 5Gbps: Connect USB Type C devices (support up to 5Gbps)
• 10Gbps: Connect USB Type C or Type A devices (support up to 10Gbps)
• HDMI: Connect an HDMI monitor using an HDMI Male to Male cable.
• DP: Connect a DisplayPort monitor using a DisplayPort Male to Male cable.
• PD 3.0: Connect a Type C PD power supply (i.e. of your laptop or tablet) to provide power to your
host computer.
Next connect the display(s) using HDMI and/or DisplayPort cables as required. For multi-monitor
installations we strongly recommend using identical monitors to ensure the best compatibility and
performance.
Additional devices and peripherals can then be connected to the Docking Station as required.
This Docking Station also supports USB Power Delivery 3.0 up to 100W for charging the connected
laptop. A USB Type C power supply is not included. The dock can be used with the power supply
supplied with the laptop or a power supply can be purchased separately.
To use the "MAC address pass-through" feature, the setting must be enabled in the BIOS. The location of
the setting varies for each manufacturer. Change the setting to Enabled, then exit the BIOS while saving
changes to the BIOS setting.
Lindy regularly checks and tests our product range to ensure maximum compatibility and performance.
For the most up to date version of this manual, please refer to your local Lindy website, search for the
relevant part number and find the manual under Downloads.
