Logic Board
Model 041DJ003MC
Also replaces 050DCRJWF
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
To prevent possible SERIOUS INJURY or DEATH:
Disconnect ALL electric and battery power BEFORE performing ANY
service or maintenance.
To prevent damage to the receiver/logic board, DO NOT touch printed
circuit board of replacement receiver/logic board during installation.
ALWAYS wear protective gloves and eye protection when changing the
battery or working around the battery compartment.
NOTICE: This device complies with Part 15 of the FCC rules and Industry
Canada’s license-exempt RSSs. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifi cations not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance
is maintained between users/bystanders and device.
This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules and Industry
Canada ICES standard. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Before you begin. Your new myQ® serial number is located on the
replacement label with your replacement logic board. You will need this new myQ
serial number to connect your opener to the network.

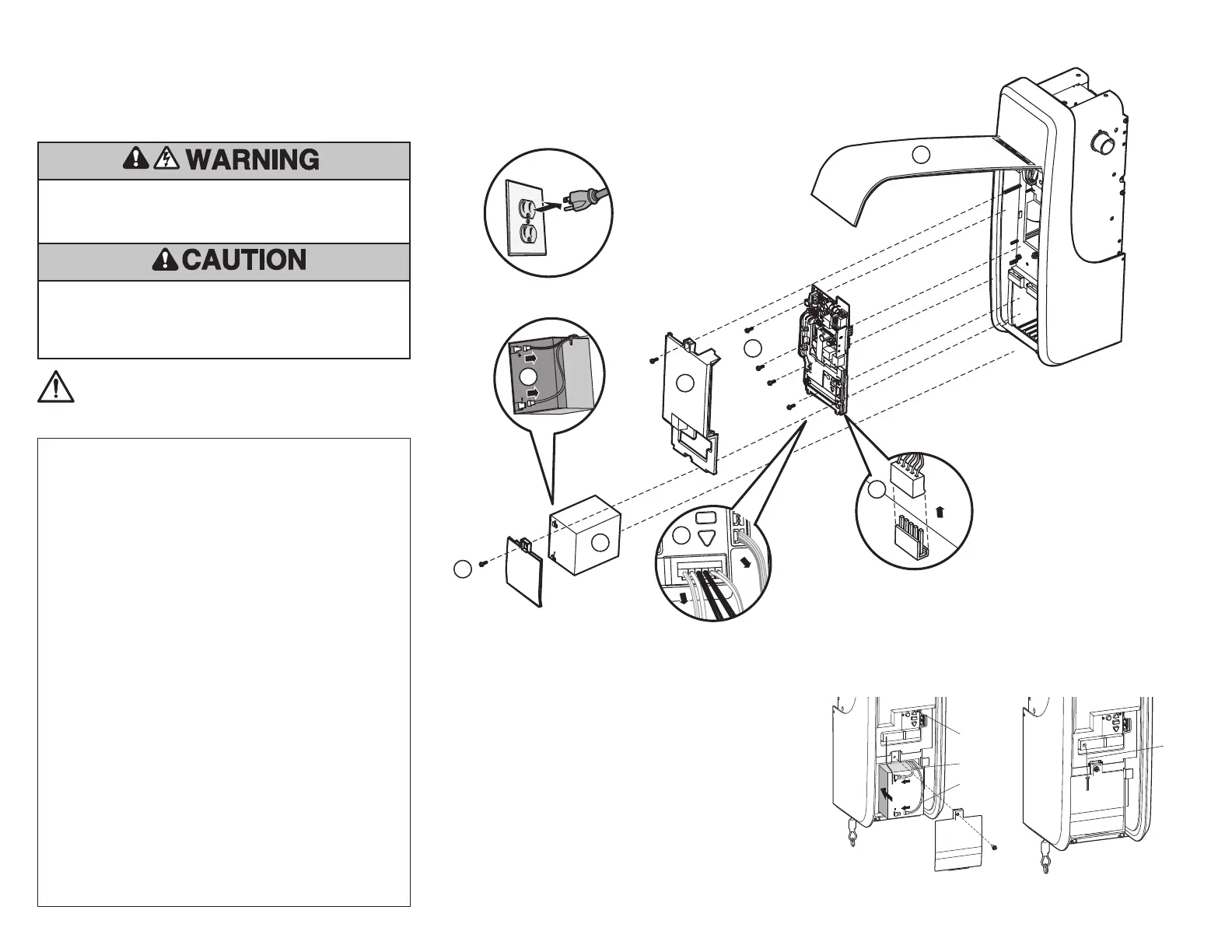

Disconnect power.1. 2. Open the front panel . (A)
Remove the battery cover. 3.
Disconnect the battery. Remove
the battery and set aside .(B)
Disconnect the wires coming 4.
from the safety reversing sensors,
door control, door lock and cable
tension monitor from the logic
board .(C)
Remove the logic board cover .5. (D)
Disconnect all the wiring harnesses 6.
from the logic board .(E)
Remove the four screws securing 7.
the logic board, remove the logic
board , and discard.(F)
Install the new logic board and 8.
connect the wiring harnesses. Route
the antenna through the channel in
the new battery cover.
Adhere the new myQ serial number 9.
label over the original label on the
logic board cover.
10. Set door profile for new replacement
logic board. See page 2 to set door
profile steps.
11. Reprogram the travel and test the
safety reversal system (see pages 2
and 3).
12. Program all remote controls and
keyless entries (see page 4).
13. Use the myQ app to add the new
myQ serial number to your account.
Red wire (+)
Battery Status LED
Black wire (-)
Antenna
NOTE: Be sure the short antenna is not pinched by the battery door and held in place
as shown.
NOTE: Please read these instructions as programming may be different from older
programming.
2
To prevent possible SERIOUS INJURY or DEATH, follow instructions to
select and set door profile for safe and proper operation.
4-6 inch
diameter
8 inch
diameter
8 inch
diameter
To prevent possible SERIOUS INJURY or DEATH, after ANY changes to
the door profile, reprogram limits.
Adjustment
Identify Door Profile
To identify the door profile number, measure the full drum diameter based
on the images below.
NOTE: This step is important to ensure the proper operation of the unit.
To view a video demonstration of how to identify and set the door profile,
scan the QR code.
Standard Lift Sectional Door
Door Profile 1 = Standard to Heavy Weight Door* with a 4” drum
(Recommended).
Door Profile 2 = Light Weight Door with a 4” drum.
Door Profile 3 = Heavy Weight Door* with a 6” drum.
Door Profile 4 = Light Weight Door with a 6” drum.
*NOTE: Drum sizes may vary by manufacturer.
For Standard Lift Sectional Doors:
•Drums less than or equal to 5”, use 4” drum.
•Drums more than 5”, use 6” drum.
Standard to Heavy Weight doors are those with solid wood interiors, wood
veneer exteriors, glass windows, insulation, and/or decorations.
High Lift Door
Door Profile 5 = Tapered drum with tracks that raise to a higher elevation
Vertical Lift Sectional Door
Door Profile 5 = Tapered Drum with tracks raising vertically above the
opening.
Set Door Profile
1. To enter Set Door Profile mode, press and hold the black button for
one second. The UP and DOWN buttons turn a solid color.
2. To set Door Profile, press the UP and DOWN buttons. The Learn LED
button blinks and beeps as you change the setting.
3. The number of Learn LED button blinks indicates which profile you
have selected. There is no preset door profile setting.
4. Press and release the Black button to set the Door Profile. This process
is now complete. Proceed to the Travel Learn mode.
EXITING DOOR PROFILE NUMBER SETTING
If there is no selection within 4.5 minutes, the Door Profile selection mode
will be cancelled with a long beep.
3
Adjustment
Program the Travel
Travel limits regulate the points at which the door will stop when moving
up or down.
While programming the travel, the UP and DOWN buttons can be used to
move the door as needed. During the Automatic Force Setup, the door will
automatically open and close.
1. Press and hold the Adjustment Button until the UP Button begins to
flash and/or a beep is heard. The Safety Reversing Sensors will be
disconnected during the Program the Travel process.
2. Press and hold the UP Button until the door is in the desired UP
position.
3. Once the door is in the desired UP position press and release the
Adjustment Button. The garage door opener lights will flash twice and
the DOWN Button will begin to flash.
4. Press and hold the DOWN Button until the door is in the desired
DOWN position.
5. Once the door is in the desired DOWN position press and release the
Adjustment Button. The garage door opener lights will flash twice.
Program the Travel is now complete. If the garage door opener lights
flash 5 times, then programming has timed out and the Travel Limits
have not been set. Please restart the Program the Travel process.
Without a properly installed safety reversal system, persons
(particularly small children) could be SERIOUSLY INJURED or KILLED
by a closing garage door.
Incorrect adjustment of garage door travel limits will interfere with
proper operation of safety reversal system.
After ANY adjustments are made, the safety reversal system MUST
be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm)
object (or 2x4 laid flat) on floor.
To prevent damage to vehicles, be sure fully open door provides
adequate clearance.
1
2
3
5
4
UP
Button
Adjustment
Button
DOWN
Button
Programming Buttons
To prevent possible SERIOUS INJURY or DEATH, after ANY changes to
the door profile, reprogram limits.
Automatic Force Set Up
Once both the up and down positions have been manually set, the Safety
Reversing Sensors will reconnect and become operational. Then, the opener
will enter a force-sensing operation by automatically moving the door open
and close. The garage door opener will sound an audible and visual alert
before automatically opening and closing the door. The garage door opener
will beep three times, confirming that the Automatic Force Setup completed
successfully. Adjustment is complete.
If you hear one long beep after the door attempts to move, then the
Automatic Force Set Up has not completed successfully. Please start over at
step 1 of Program the Travel.
