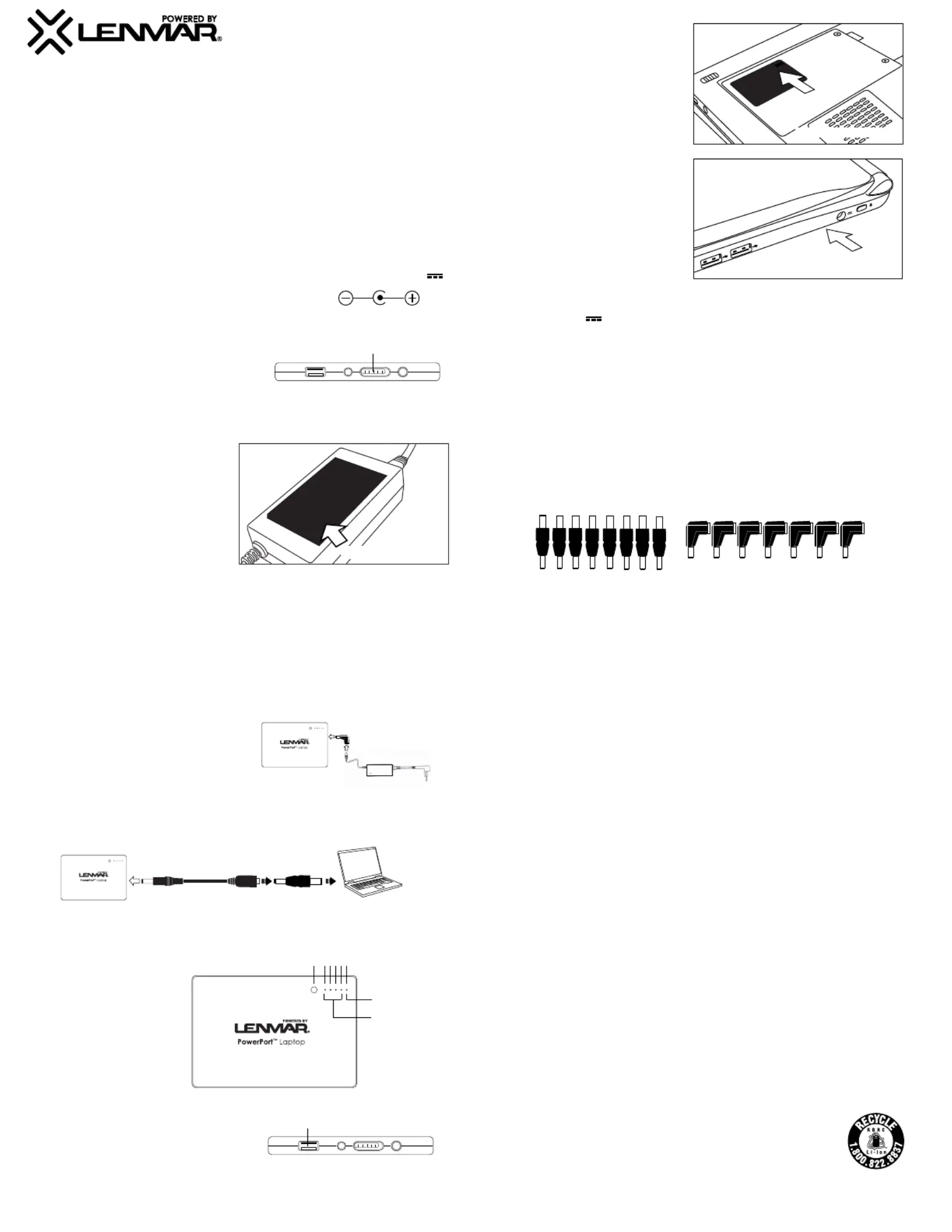

Model PPU916RS
Lenmar PowerPort Laptop Battery – The Ultimate Power On The Go
Important Safety Instructions are included.
Please read the entire manual before use.
OWNER’S MANUAL
Thank you for purchasing the PPU916RS PowerPort Laptop Battery for notebook and laptop computers. The
PPU916RS provides a 16 & 19 VDC output that can provide up to 3 hours of additional runtime. Also included
is a USB output port for charging your cell phone, PDA, MP3 player or any other device that can be charged
from a standard USB port. Please note: This is not compatible with tablets.
PRE-OPERATION SETUP
Please make sure you follow the two steps outlined below to determine the right settings compatible with
your notebook or laptop computer.
Step 1. Determine Polarity
The PPU916RS works only with notebook and laptop computers that have “center positive” polarity. Please
confirm that your laptop has “center positive” polarity before using the PPU916RS. You may look for the
below in your notebook or laptop user manual (please see image to the right).
DO NOT USE the PPU916RS if your device shows “center negative” polarity.
Step 2: Determine Voltage Required
Please determine the required voltage needed for your
notebook or laptop computer. Once you have determined
the correct voltage, slide the switch on your PPU916RS
to either 16V or 19V.
In some cases you may determine the desired voltage is between whole numbers such as 18.5VDC. In this case
you would use the 19V setting. In the case of 20VDC, also choose the setting of 19VDC.
3.) Review the voltage indication marked next to
the input jack on the notebook or laptop
computer to be powered.
Example: VIN: = 16VDC or 16V DC
1.) Review the power or ID plate on the original
AC / DC power supply that comes with your
notebook or laptop computer. Look for the word
“DC RATING or OUTPUT” followed by a number
and VDC*.
Example: VIN: = 16VDC or 16V DC
2.) Review the power ID plate on your notebook or
laptop computer to be powered. This is usually
found on the bottom of your computer. Look
for the word “DC RATING or INPUT” followed by
a number and VDC*.
Example: DC RATING: 16VDC or INPUT: 16VDC
1. 2.
3. 4.
313-100-33-0410 r2 y1
OPERATING INSTRUCTIONS
The PPU916RS must be charged before initial use to power up your notebook or laptop computer.
*Note: The specific notation “VDC” might not be indicated. Instead the following international symbol
shown might be used 16 . In some cases you may determine the desired voltage is between whole
numbers such as 15.5VDC. In this case use the next higher voltage setting. For example, use 16VDC if
the desired voltage is 15.5VDC.
Select the adapter tips that correspond to your laptop or notebook brand and model by visiting
www.lenmar.com/adaptertips. Verify the fit of the power tip by plugging it into the input jack on your laptop.
It is important that the center contact or pin be the correct size to insure proper electrical contact. The tip
should slide in as easily as the original adapter tip. Do not force it. If it does not fit easily please verify that you
have the correct tip listed in our reference.
SELECTING THE RIGHT BATTERY TIP
The PPU916RS comes with 8 power tips, and 7 charging tips and one 30” power cord. These tips will
allow you to charge the PPU916RS and also power your laptop.
Determine the correct power tip and connect it to the included 30” power cord then plug it into your
laptop. The power tips consist of models L01D, L51D, L52D, L53D, L54D, L55D, L61D, and L62D. The
charging tips are made to connect to your existing AC Adaptor and then be plugged into the “IN” jack on
the PPU916RS. They are the right angle tips consisting of models: L01, L51, L53, L54, L55, L61 and L62. You
may also use your existing AC Adapter tip if it fits.
CHARGING THE PPU916RS
To charge the PPPU916RS, use your notebook or laptop
computer’s existing AC Adapter. Connect the AC Adapter
to the correct charging tip. Then plug in the tip into the
“IN” port of the PPU916RS. Approximate charge time is 5
hours. You will see an indicator on the 5th LED light. The
light will be red while charging and will turn blue once the
charge is complete.
CONNECTING THE PPU916RS TO YOUR LAPTOP
Plug the supplied 30” power cable into the “OUT” port on the PPU916RS. Attach the correct power tip to
the other end of the cable and plug this into the “DC IN” port of your laptop.
CAPACITY INDICATOR
Press the button on the top of the PPU916RS to show remaining capacity, there are 4 indicator lights.
USB POWER PORT
The PPU916RS has a built in USB port for the convenience of
charging your cell phone, PDA, MP3 player or any other
device that can be charged from a standard USB port. For
best results use an OEM or factory approved USB cable.
Please note: This is not compatible with tablets.
NOTICE
• Keep the PPU916RS dry, if it gets wet wipe it dry immediately.
• Use and store it in normal temperature environments.
• Handle the PPU916RS carefully, do not drop it. Do not use the PPU916RS if the cords become damaged.
• Keep the PPU916RS away from dust and dirt; wipe it with a cloth occasionally to keep it clean.
• There are no user serviceable parts inside! Modifying or tampering with its internal components can cause a
malfunction and will invalidate its warranty. If your PPU916RS is not performing as it should during the
warranty period, contact Lenmar for warranty service.
PPU916RS
PPU916RS
OUTPUT CABLE
1 2 3 4 5BUTTON
LED
CHARGING
INDICATOR
OUTPUT TIP
SLIDING BUTTON BETWEEN 16V/19V SELECTION
LIMITED 1 YEAR WARRANTY
Lenmar product is warranted to be free of defective parts and workmanship for stated period from the
original date of purchase when sold through our website or our authorized retailers. Warranties are not
transferable. The warranty excludes damage resulting from accident, misuse, modication, delay or loss of
use, damage to equipment or by normal wear and tear.
ALL WARRANTY CLAIMS ARE PROCESSED ONLINE AT THE FOLLOWING LINK:
WWW.LENMAR.COM/WARRANTY
Warranty claims made after 60 days from the original date of purchase, will require a processing fee. Details
will be included while completing the online warranty request. Payment can be made via credit card when
completing the warranty form or a check can be included with the package when it is returned to Lenmar.
Once the request is completed, you will be emailed with a conrmation WRA number and instructions on how
to return the item for a warranty replacement.
Proposition 65 Notice (California)
The following statement is required in the state of California pursuant to the settlement of an action brought
by the Mateel Environmental Justice Foundation against multiple electronics and appliance manufacturers
• WARNING: Handling the cord on this product will expose you to lead, a chemical known to the
state of California to cause birth defects or other reproductive harm. Wash hands after handling.
Contact Lenmar Enterprises, Inc.
For more information about product compatibility and adapter tips, please go online and visit
www.lenmar.com/adaptertips.
For additional questions, comments, or to explore other Lenmar power solutions, visit our website at:
www.lenmar.com, email info@lenmar.com, or call 800-424-2703 between the hours of 9am-5pm PST.
PRODUCT SPECIFICATIONS
Chemistry: Lithium-Polymer
Charge input: 15V ~ 25 V 2.5A~ 4A adapter input
Discharge output: 5.3 V, 16V, 19V
CAPACITY
INDICATOR
AC ADAPTER LABEL
DC RATING:16V
1.
BOTTOM OF LAPTOP
DC RATING:16V
2.
SIDE OF LAPTOP
VIN: = 16VDC
3.
CHARGING TIP
POWER TIP
L01D
L51D
L52D
L53D
L54D
L55D
L61D
L62D
L01
L51
L53
L54
L55
L61
L62
PPU916RS
CHARGE TIP
ORIGINAL NOTEBOOK AC ADAPTER
LED 1 indicates 0% to 25%
LED 2 indicates 25% to 50%
LED 3 indicates 40% to 60%
LED 4 indicates 75% to 100%
USB PORT
Lithium-Polymer battery must be
recycled or disposed of properly.
Charge time: Approx 5 hours.
Output WH: 61Wh / 5500mAh
CENTER POSITIVE
