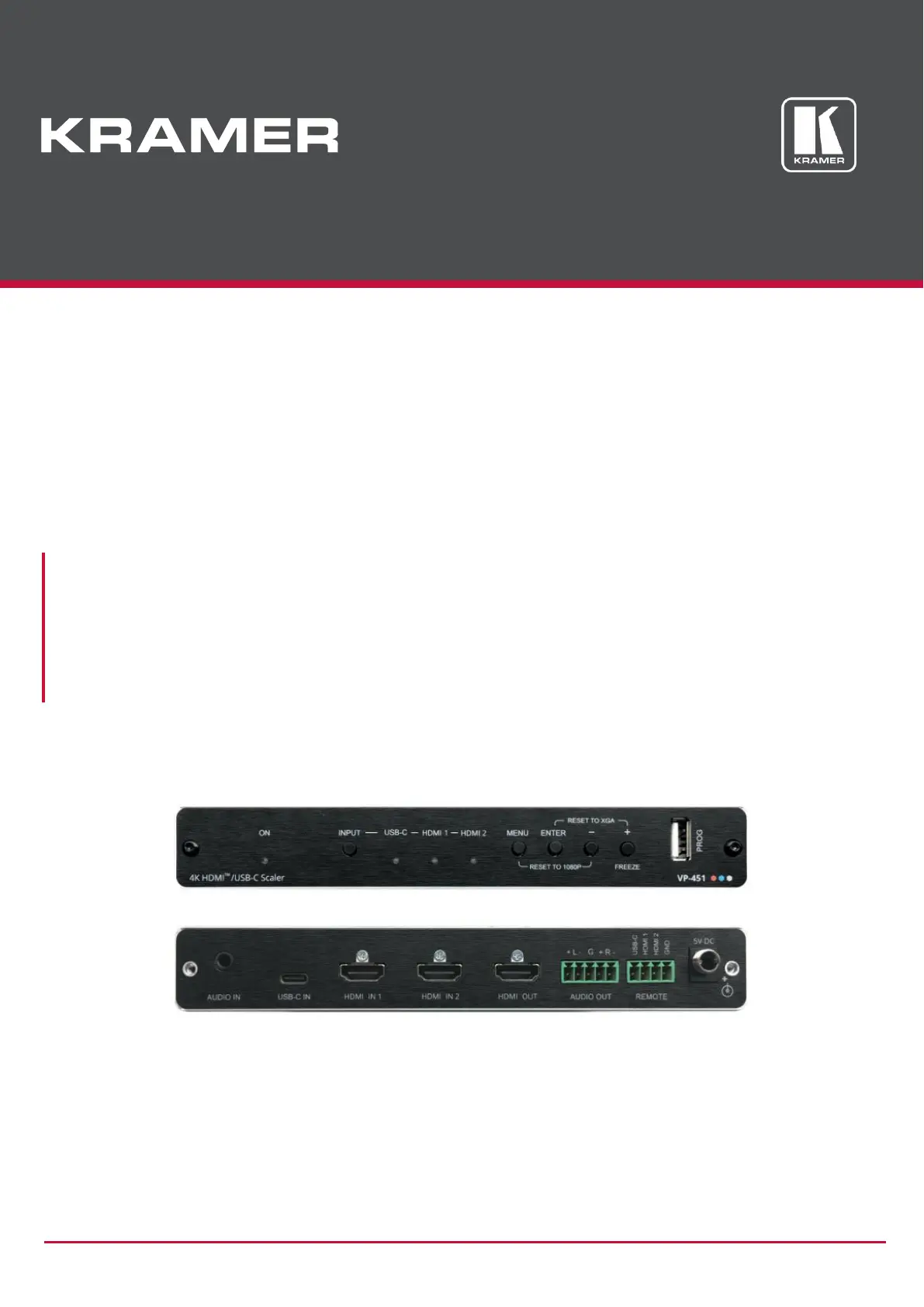

P/N: 2900-301231 Rev 2 www.kramerAV.com
USER MANUAL
MODEL:
VP- 451
HDMI / USB-C Scaler
Kramer Electronics Ltd.
VP- Contents 451
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Dening VP-451 HDMI / USB-C Scaler 4
Mounting VP-451 6
Connecting VP- 7451
Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 8
Connecting the Remote Control Switches 8
Operating and Controlling VP-451 9
Using Front Panel Buttons 9
Using the OSD Menu 9
Upgrading the Firmware 16
Technical Specications 17
Input Resolutions 18
Output Resolutions 18
Default EDID 19
Kramer Electronics Ltd.
VP- Introduction 451
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and aordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
Review the contents of this user manual.
Go to www.kramerav.com/downloads/VP-451 to check for up- -date user manuals, to
application programs, and to check if rmware upgrades are available (where appropriate).
Achieving the Best Performance
Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
Do not secure the cables in tight bundles or roll the slack into tight coils.
Avoid interference fro neighboring electrical appliances that may adversely inuence m
signal quality.
Position your Kramer away from moisture, excessive sunlight and dust. VP-451
Safety Instructions
Caution:
This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
To ensure continuous risk protection, replace fuses only according to the rating
specied on the product label which located on the bottom of the unit.
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landll or incineration by requiring it to be collected
