Seite 1/95

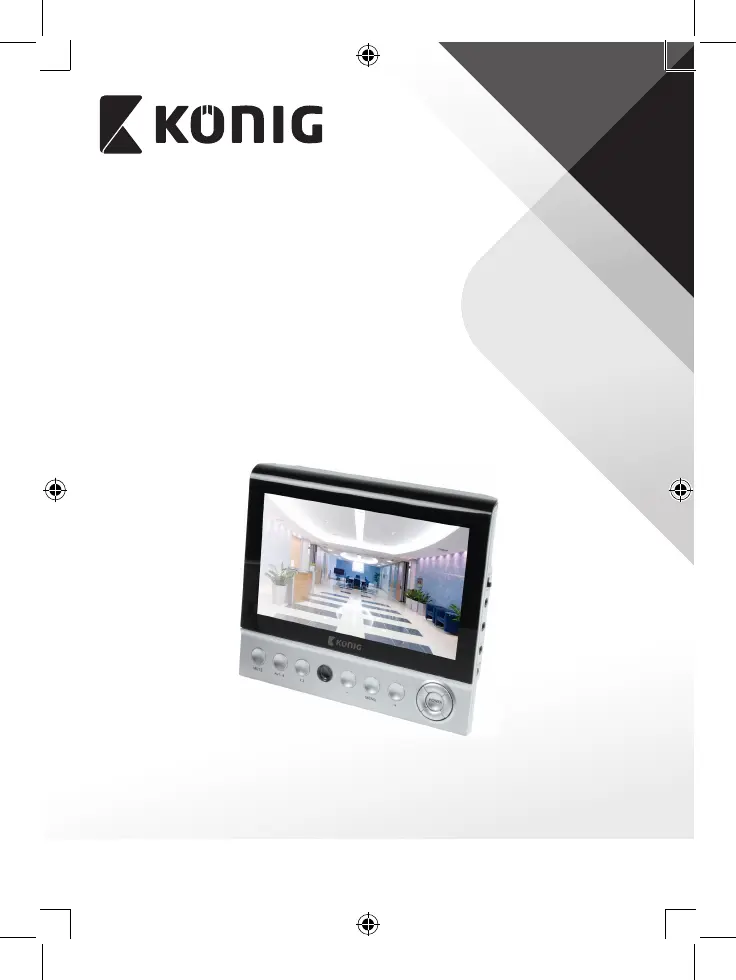

SAS-MON51
MANUAL (p. 2)
ANLEITUNG (S. 7)
MODE D’EMPLOI (p. 12)
GEBRUIKSAANWIJZING (p. 17)
MANUALE (p. 22)
MANUAL DE USO (p. 27)
MANUAL (p. 32)
HASZNÁLATI ÚTMUTATÓ (o. 37)
KÄYTTÖOHJE (s. 42)
BRUKSANVISNING (s. 47)
NÁVOD K POUŽITÍ (s. 52)
MANUAL DE UTILIZARE (p. 57)
ΕΓΧΕΙΡΙΔΙΟ XPHΣHΣ (σελ. 62)
BRUGERVEJLEDNING (s. 67)
VEILEDNING (s. 72)
ИНСТРУКЦИЯ (77 стр.)
KILAVUZ (s. 82)
NÁVOD (s. 86)
INSTRUKCJA OBSŁUGI (str. 91)
7” LCD Monitor
ENGLISH
2
Introduction
The monitor is an easy-to-use electronic device designed for monitoring in all
kinds of situations. This product is especially suited to small shops, oces or
homes. The monitor can be placed on a horizontal surface or can be mounted
on an adjustable support (order separately with art. nr. SAS-BRACK40) which
can be mounted at the bottom of the monitor and tted with 3 screws on a
horizontal or vertical surface.
The monitor can receive sound and images from 4 dierent cameras. You can
easily select dierent camera views with the remote control. The images can
also be displayed one by one in automatic mode. This monitor is suitable for
use with SAS-CAM12 camera.
• We recommend that you read this manual before installing/using the
monitor.
• Keep this manual in a safe place for future reference.
The camera package contains the following items:
1. 1x 7” LCD monitor
2. 1x Remote control
3. 1x AC/DC adapter
4. 1x AV output cable
5. 4x AV input cable
Technical specications
Format: 16:9 (4:3 mode)
Resolution: 628 x 562 (PAL)
Operating voltage: 12 V DC/1 A
AV input: 4x
AV output: 1x
ENGLISH
3
Operating temperature: -10 °C to +50 °C
Weight: 450 g
Dimensions: 180 x 155 x 25 mm
Safety precautions
• Do not open the monitor in the event of a malfunction. This product should
only be opened by a qualied engineer.
• Do not expose the monitor to water.
• Do not expose the monitor to high temperatures or humidity.
• Do not install the monitor close to strong magnetic elds, such as a TV or
speaker. This may aect the monitor’s quality.
Installation instructions
1. Monitor
2. AV output jack connector
3. AV input jack connector
4. DC 12 V input jack connector
5. Support
6. Fitting point for adjustable support
1. Place the monitor on its support (5) on a stable surface.
The monitor can also be mounted on an adjustable support (order
separately with art. nr. SAS-BRACK40) which can be mounted at the bottom
of the monitor and tted with 3 screws on a horizontal or vertical surface.
2. Insert the DC plug into the DC 12 V input jack connector (4).
3. Insert the AC/DC adapter into the wall socket.
4. Connect the camera with the AV input cable to one of the AV input jack
connectors (3) on the rear of the monitor (max. 4 cameras).
