Quick Start Guide
MIC BOOSTER CT 1 / CM-1 / CM-2
Thank you for purchasing a Klark Teknik Mic Booster! These compact units add signicant gain boost to your passive microphone signal to
ensure strong, clear delivery to a mixing board, preamplier or interface.
*note – the CT 1 can also be connected directly to most microphones
Setup Procedure
Warning – either mute the mixer channel, lower the volume all the way, or turn o the speaker system before making connections.
1. Connect a fairly short balanced XLR cable (<30 feet) from the microphone to the input of your Mic Booster. Note that phantom power
cannot be passed to condenser mics, and therefore they shouldn't be used along with a mic booster unit.
2. Connect the output of the Mic Booster to a mixer, preamp, or interface via balanced XLR cable. Long cable runs can be used for
this connection if necessary, but high quality XLR cables with low capacitance are recommended to avoid high frequency degradation.
3. Engage phantom power on the mixer or other receiving equipment.
4. Check the gain setting on the receiving channel of your mixer or interface since the signal will be much greater than typical mic levels.

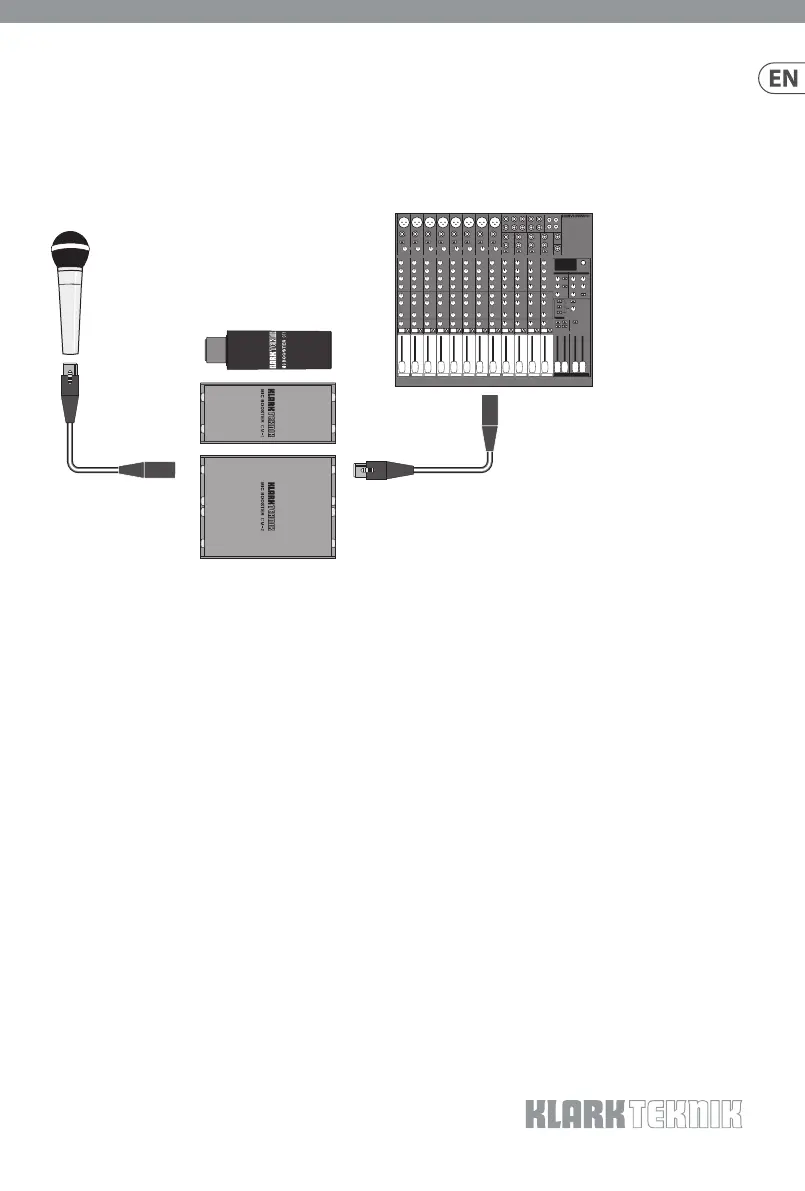

OutputInput
Dynamic or
passive ribbon
microphone
CT 1, CM-1, or CM-2
Mixer with phantom
power engaged
Specications
CT 1 CM-1 CM-2
Input
Connector 1 x XLR, balanced 1 x XLR, balanced 2 x XLR, balanced
Impedance 7 kΩ
Maximum input level -15 dBu
Output
Connector 1 x XLR, balanced 1 x XLR, balanced 2 x XLR, balanced
Impedance 2 kΩ
Maximum gain +25 dB, 10 kΩ load
Maximum output level +10 dBu, 10 kΩ load
System
Frequency response 10 Hz to 20 kHz (± 1 dB)
THD + N <0.02% @ 1 kHz, 0 dBu
EIN noise @ +25 dB gain >120 dB, 22 Hz-22 kHz, unweighted
Power requirements 48 V phantom power
Physical
Dimensions 24 x 25 x 78 mm
(0.9 x 1.0 x 3.1")
38 x 39 x 85 mm
(1.5 x 1.5 x 3.3")
65 x 39 x 85 mm
(2.6 x 1.5 x 3.3")
Weight 0.1 kg (0.22 lbs) 0.25 kg (0.55 lbs) 0.37 kg (0.81 lbs)
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suered by any person who relies either wholly or in part upon any
description, photograph, or statement contained herein. Technical specications, appearances and other information are
subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen,
Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered
trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please
see complete details online at musictribe.com/warranty.
