AIR LINK DW 20BR
(1) PAIR button – enables the unit to become available for pairing by pressing and
holding the button for 4 seconds. The LED ring will indicate the current status.
See the Getting Started section for details.
(2) LEVEL knob – adjusts the volume of the signal sent to the output jacks.
(3) DC INPUT – accepts the included power adapter.
(4) OUTPUTS – connect to an amp, powered speakers, or mixer via balanced XLR or
unbalanced ¼" TS cables.
Getting Started
1. Connect the DW 20BR to a mixer or speaker system with either XLR
or ¼" cables. Keep the volume on the speaker or mixer channel turned all
the way down to avoid popping noises. Do not connect the power cable yet.
2. On your smartphone or tablet, activate Bluetooth and scan for available
devices.
3. Connect the power adapter to the DW 20BR and to a power outlet.
The unit will turn on automatically and try to pair with the most recently
connected device.
4. To connect a new device, press and hold the PAIR button for 4 seconds.
The LED ring will  ash quickly to indicate that it is ready to pair.
5. Select the DW 20BR from the list of available items in the Bluetooth settings
menu of your Bluetooth device. The DW 20BR LED will light solid with no
ashing to indicate successful connection.
Note - disable cellular reception when streaming audio from a cell phone.
6. Start playing audio from your Bluetooth device. Adjust the volume on the
Bluetooth device, then turn up the LEVEL knob so that the speaker or mixer
receives a strong signal.
7. Turn up the volume on your speaker, mixer, amps, etc. until you reach the
desired listening level.
Connection Notes:
- If your Bluetooth audio device is compatible, Play/Pause can be toggled with
a short press of the PAIR button on the DW 20BR while the Bluetooth stream
is active.
- Audio cannot stream from a single Bluetooth device to multiple DW 20BR
units simultaneously.
- If you have already connected to one DW 20BR unit and want to switch to
another unit, follow these steps:
On an Android device, delete the  rst unit from the Bluetooth device list,
then perform a new search/pair as described above.
On an iOS device, it is possible for 2 units to appear connected in the
Bluetooth settings menu. In this case, you can select which unit will receive
audio via the music application's settings. Both units will have the name
KLARK TEKNIK DW 20BR.

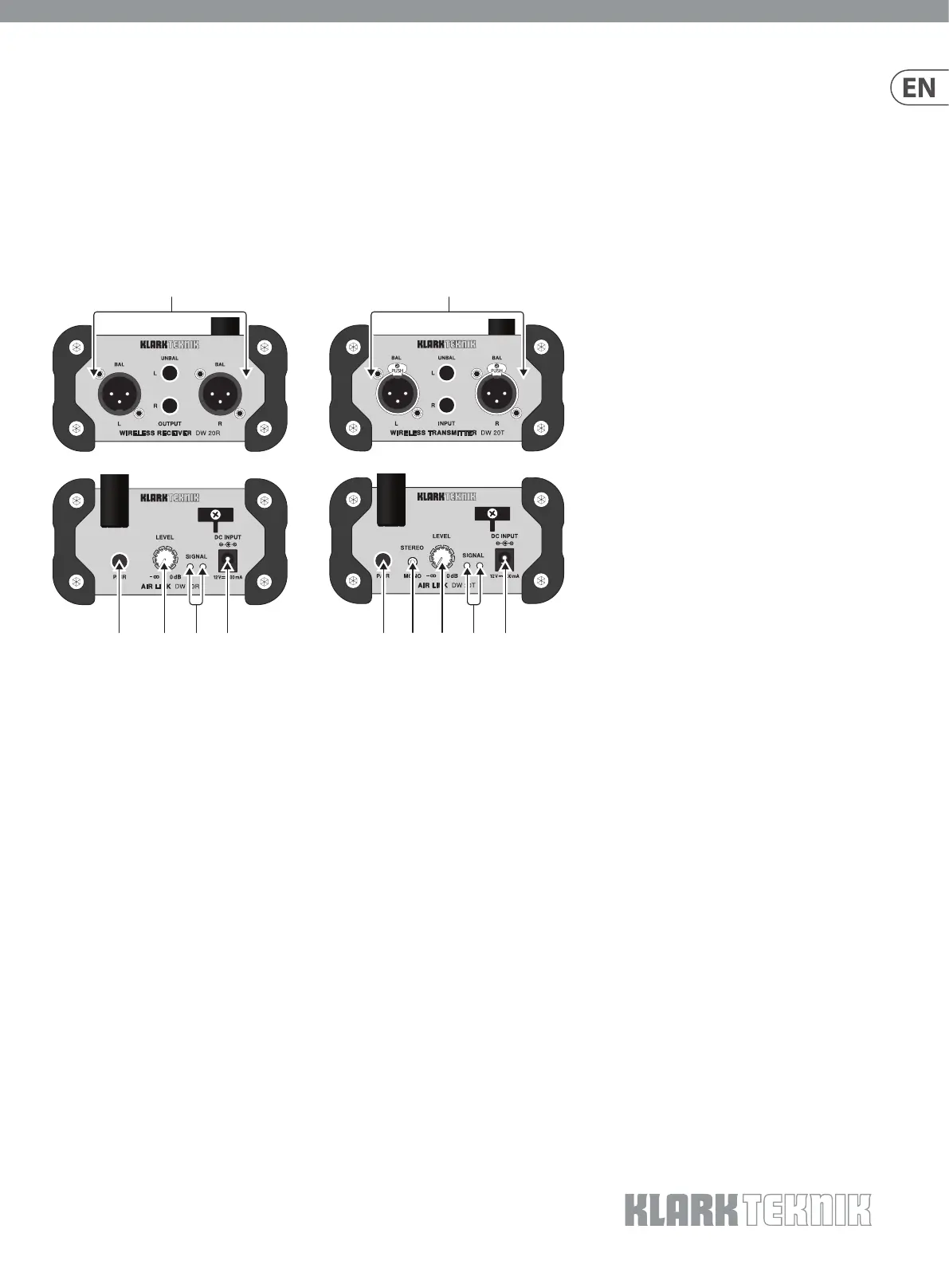

(1) (2) (3) (4)
Controls
Speci cations
Note: The ¼ " output level is 6 dB lower than the XLR outputs
FEDERAL COMMUNICATIONS
COMMISSION COMPLIANCE
INFORMATION
Responsible Party Name: MUSIC Tribe Brands UK Ltd.
Address: Klark Industrial Park,
Walter Nash Road, Kidderminster,
Worcestershire, DY11 7HJ United
Kingdom
Phone Number: +44 1562 732290
AIR LINK DW 20BR
complies with the FCC rules as mentioned in the following paragraph:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Caution!
The MUSIC Group is not responsible for any radio or TV interference caused by
unauthorized modi cations to this equipment. Such modi cations could void the user
authority to operate the equipment.
FCC RF Radiation Exposure Statement:
(1) This Transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
(2) This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
Important information:
Changes or modi cations to the equipment not expressly approved by MUSIC Tribe can
void the user’s authority to use the equipment.
Outputs
Connectors Balanced XLR, unbalanced ¼ "
Impedance 240 Ω
Max. output level 4 dBu @ 1 kHz
Bluetooth
Frequency range 2402 - 2480 MHz
Channel number 79
Bluetooth version 4.2
Receiver range Up to 30 m (100 ft)
Output power Class 2, <10 dBm
Supported codec SBC, aptX
Supported pro les AVRCP 1.4, A2DP 1.2
System
Frequency response 20 Hz to 20 kHz (+0/-2 dB)
THD + N (distortion) 0.1% @ 1 kHz
Signal-to-noise ratio >90 dB
Power adaptor 12 V DC, 400 mA, center positive
Physical
Dimensions (H x W x D)
Without bumpers or antenna 54 x 108 x 103 mm (2.1 x 4.3 x 4.1")
With bumpers, without antenna 63 x 118 x 112 mm (2.5 x 4.6 x 4.4")
With bumpers, upright antenna 212 x 118 x 126 mm (8.3 x 4.6 x 5.0")
Weight incl. bumpers and antenna 0.6 kg (1.3 lbs)
KLARK TEKNIK
AIR LINK DW 20BR
LEGAL DISCLAIMER
MUSIC Tribe accepts no liability for any loss which may be su ered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein.
Technical speci cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and COOLAUDIO are trademarks or registered trademarks of MUSIC Tribe Global Brands Ltd.
© MUSIC Tribe Global Brands Ltd. 2018 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding MUSIC Tribe’s Limited Warranty, please see complete details online at musictri.be/warranty.
