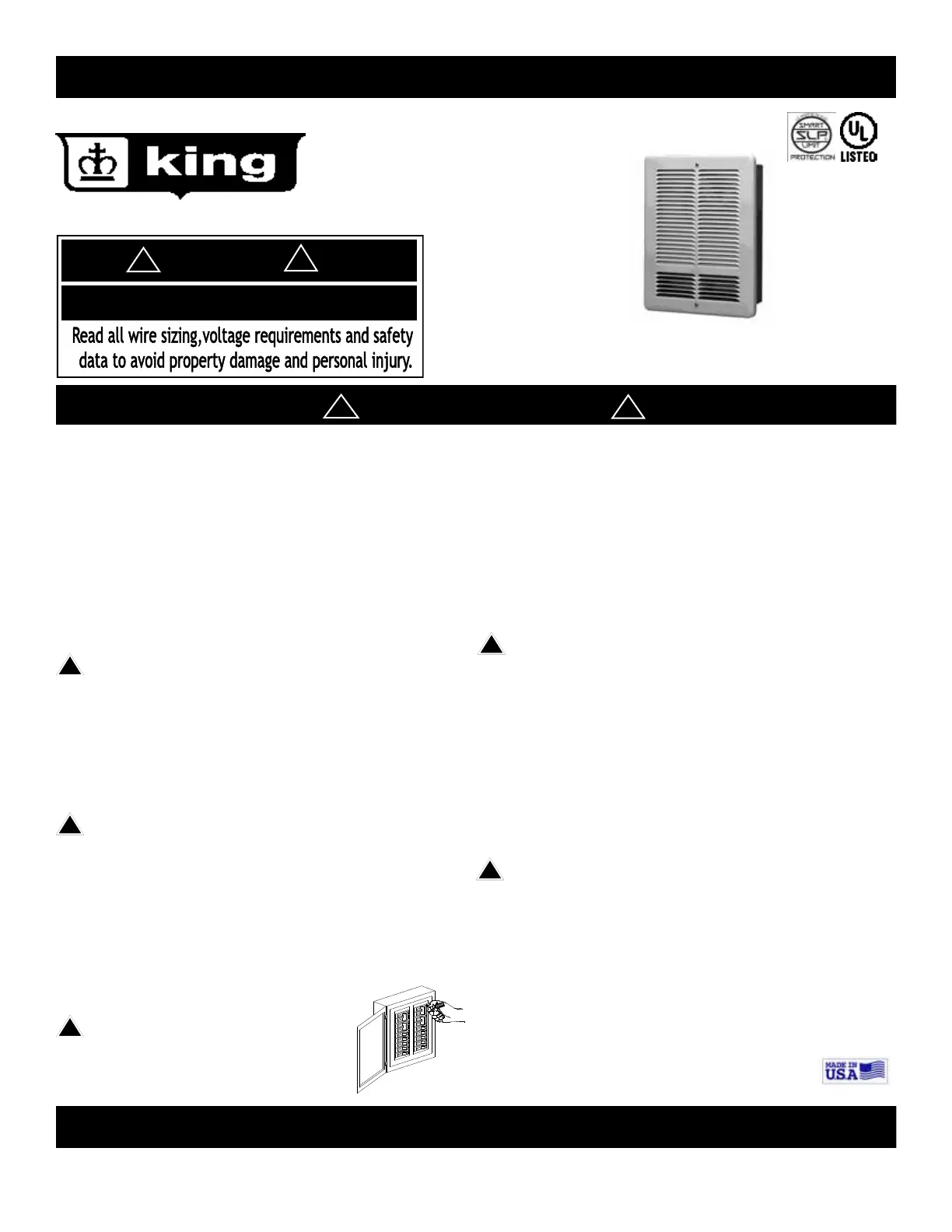

1. Read all instructions before wiring or using this
heater.
2. WARNING: This heater is hot when in use. To
avoid burns, do not let bare skin touch hot sur-
faces. Keep combustible materials, such as furni-
ture, pillows, bedding, papers, clothes, boxes,
etc., and curtains at least 3ft (.9 m) from the
front of the heater and keep them away from the
sides and rear.
3. CAUTION: Extreme caution is necessary when any
heater is used by or near children or invalids and
whenever the heater is left operating and unat-
tended.
4. Do not operate any heater after it malfunctions.
Disconnect power at service panel and have
heater inspected by qualified electrician for re-
pair before reusing.
5. Do not use outdoors.
6. WARNING: To disconnect heater,
turn controls to OFF, and turn
OFF power to heater circuit at
IMPORTANT INSTRUCTIONS
ELECTRIC SHOCK OR FIRE HAZARD
DANGER
!!
WARNING
! !
Read Carefully - These instructions are written in an effort to prevent potential difficulties that might arise during
installation. Studying the instructions first may save you considerable time and money later. Observing the following
procedures will keep installation time to a minimum. . Save these instructions for future use
1
Covers all W Series models
W Fan Force Electric
Space Heater
King Electrical Mfg. Co. 9131 10th Ave So. Seattle, WA 98108 206- -0400 www.king-electric.com 762
IMPORTANT INSTRUCTIONS
When using electrical heating appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
main disconnect panel.
7. WARNING: Do not insert or allow foreign objects
to enter any ventilation or exhaust opening as this
may cause an electric shock, fire, or damage to
the heater.
8. To prevent a possible of fire, do not block air in-
takes or exhaust in any manner.
9. A heater has hot and arching or sparking parts
inside. Do not use it in areas where gasoline,
paint, or flammable vapors or liquids are used or
stored.
10. WARNING: heater only as Use this described in this
manual. Any other use is not recommended theby
manufacturer and may cause fire, electric shock,
explosion property.or injury to people and or
!
SAVE THESE INSTRUCTIONS
Figure 1
!
!
!
Figure 2
!
ELECTRIC SHOCK OR FIRE HAZARD
! !
Figure 3
2
W INSTALLATION INSTRUCTIONS
CAUTION!
Turn OFF all electrical power
to install heater
Rating Label Location
Total Amps Minimum AWG. Wire
Size (Copper Circuit Breaker or
Fuse Size
0 thru 12 15 amp #14
12.1 thru 16 20 amp #12
16.1 thru 24 30 amp #10
Minimum Clearances for heater: Table 1
Front TOP BOTTOM SIDES
36 in 12 in 4 in 6 in
0.9 m 30.5 cm 10.2 cm 15.2 cm
Selecting A Location For Your Heater:
DO NOT install less than 6” (15cm) from vertical side
walls or open edge of door. This heater must have an
unrestricted airflow. DO NOT select a location where it
is likely to be blocked by furniture, curtains, etc. Be
sure the location selected allows sufficient space for the
heater as shown by Table 1. DO NOT locate this heater
in an area where combustible vapors, gases liquids, or
excessive lint, dust or moisture is present.
The wire and breaker sizing chart will give a general rule
of installation size. Consult an electrician if you are not
knowledgeable about wiring codes.
Wire and Breaker Sizing: Table 2
WIRING: Branch Circuit Connection
1. Connect heater only to the voltage, amperage and
frequency specified on the nameplate.
2. Wiring procedures and connections shall be in accor-
dance with all National and local codes having juris-
diction.
3. Set the bag containing the grille and packet with
two (2) grille screws aside.
4. Loosen mounting screw and remove fan heater as-
sembly.
5. A knockout of 1/2 inch conduit size (7/8 inch /
2.2cm) is provided in the back and side of the heater
for power to enter. Provide proper strain relief con-
nectors for your wire entering the wallbox.
6. Install wallbox a minimum of 6” from vertical side-
walls and 4” above floor. The front edge of wall
can MUST extend 1/2” beyond finished wall sur-
face.
7. Secure wallbox to the 2 x 4 studs using the two (2)
holes on the side of the wallbox. Secure to wall stud
on opposite side if required.
8. Connect supply wires, attach ground feed wire to
the green ground wire with wire nuts.
9. Reinstall heater assembly into wallbox with screw at
top of interior.
10. Install grille securely with screws provided in
packet. Do not over tighten.
11. Test unit by turning thermostat up past room tem-
perature. You will see a puff of smoke as the ele-
ments are energized and the fan turns on. This is a
normal burn off of manufacturing lubricants and will
dissipate in 5 minutes.
12. Heater will continue to run until the room tempera-
ture you set is reached and then turn itself off until
the temperature drops again.
CAUTION - High temperature. Risk of fire , keep electri-
cal cords, drapery, furnishings, and other combusti-
bles at least 3 feet (0.9 m) from the front of the
heater as well as away from the side and rear. To
reduce the risk of fire, do not store or use gasoline or
other flammable vapors and liquids in the vicinity of the
heater.
Figure 2
Wiring Diagram Figure 5
Zero clearance to insulation.
Figure 4
!
DANGER
Table 3
This heater is equipped with a thermal overload
Smart Limit Protection which disconnects ele-
ments and motor in the event normal operating
temperatures are exceeded. If thermal overload trips
due to abnormal operating temperatures, thermal over-
load shall remain open until manually reset by turning
the heater OFF for fifteen minutes. Inspect for any ob-
jects on or adjacent to the heater that may cause high
temperatures. After inspecting the heater, keep the
power to the heater off for 10 minutes to reset the SLP
thermal protector. If the SLP thermal protector shuts
the heater off again, immediately turn the heater OFF
at the circuit breaker and inspect the heater for possible
fan motor failure or dirt and lint on the heating ele-
ment. Repeat the starting procedure. DO NOT TAMPER
OR REMOVE THIS THIS DEVICE.
General information and Guidelines:
This heater must be properly installed before it is used.
DO NOT tamper with or change the operating of this
heater. Service Personnel refer to Maintenance & War-
ranty section for service of any type.
Operation:
1. This heater must be properly installed in accordance
OPERATING INSTRUCTIONS
W Series Heater
3
SAVE THESE INSTRUCTIONS
with the National Electrical Codes (NEC) & local
electrical codes before it is used.
2. After the electric heater has been completely in-
stalled, all thermostats should be turned to LOW or
NO HEAT. Turn ON breakers, wait 3 to 5 minutes and
check to see that the heaters are not operating. If
operating, disconnect power and check for improper
wiring. If none are operating then turn thermostats
to highest position and wait 3 to 5 minutes. Check to
see that all heaters are operating. Should any not be
operating, disconnect power and check wiring.
3. Allow entire system to operate steadily for 1/2 hour.
This should remove oily residue from manufacturing.
(Some smoking may occur).
4. Select the setting for comfort on all thermostats.
5. A safety limit control is provided to turn off the
heater automatically if it is blocked or otherwise
overheats due to an abnormal condition. DO NOT
bypass or remove this safety device from the electri-
cal circuit-see Warning Figure 3 on page 2. During
normal use, this safety control should not operate. If
you find that this control is operating, make sure the
heater is not being blocked. If it continues to cycle
the heater off, disconnect power to heater and have
it checked and repaired by a qualified electrician.
Troubleshooting Chart for Electric Heaters
SYMPTOM PROBLEM SOLUTION
Breaker Trips Short Circuit 1.
2. Overloaded Circuit
3. Improper Voltage
1.
Find source of short. Trace heater circuit and verify the heater is wire properly.
2.
Reduce wattage in circuit. Refer to circuit sizing table for maximum wattage.
3. Verify the heater voltage matches the supply voltage.
Heater not working 1. No Power
2. Loose Connections
3. Defective Limit
1. Turn Breaker ON, turn thermostat ON, check that the breaker is position
properly on panel bus-bar. A 2-Pole breaker must be connected to both bus-
bars (A&B phase) to produce 240V power.
2. Tighten wire connections.
3. -pass the limit to test. If heater works, replace the limit. By
Heater Smokes 1. Oil on Element
2. Needs Cleaning
1. It is normal for the element to burn off some light finishing oil used in the
manufacturing process when first energized. Open windows and allow room
to vent until it stops, usually within a few minutes.
2. Remove any dust or dirt accumulations.
Room Temperature
does not match
thermostat setting
1. Thermostat affected
by another heat
source.
2. Improper calibration
1. Sunlight or other heat sources can affect the thermostat. Move the thermo
stat to another location or remove the heat source.
2. Remove cover and adjust calibration screw.
Room Temperature
swings from too hot
to too cold
1. Defective or low
quality thermostat
1. Replace with a better quality thermostat. Anticipated thermostats are
fairly accurate; an electronic thermostat is best.
