INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
OWNERS GUIDE & INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH HEATER FOR HOME OWNER
KING ELECTRICAL MFG. COMPANY ⢠9131 10th Ave So. ⢠Seattle, WA 98108 ⢠Ph: 206.762.0400 ⢠Fax: 206.763.7738 ⢠www.king-electric.com
It is recommended to order your unit with or without the thermostat for your particular application. If your unit has ALWAYS
been ordered incorrectly please contact the factory and we can exchange it for the proper unit. Adding a built-in thermostat
after installation is complicated and could result in creating wiring errors and shorting out the unit.
Instructions for wall mount heater with built-in thermostat
It is to verify the electrical power supply is the same voltage as the heater you are installing. extremely important 208, 240,
277 and 120 Volt heaters are not interchangeable. Powering a 208, 240 or 277 Volt unit with 120 Volt supply wires will
reduce the heater's output by approximately 75%. Powering a 120 Volt unit with 208, 240 or 277 Volt supply wires will destroy
the heater and voids all warranties.
NOTICE must: For heaters without built-in thermostats, using remote or wall-mounted thermostats: the power be brought to
the heater îrst (not to the wall-mounted or remote thermostat). This is necessary to provide power for the fan to cool down the
element after the thermostat has opened. Use only a single pole line voltage wall thermostat or switch to control this heater.
CAUTION: Open the circuit breaker supplying the heater before attempting installation, maintenance, or repairs. Lock
or tag circuit breaker panel door. Failure to do so could result in serious electrical shock, burns, or possible death.
1. Remove heater contents from carton and check for shipping damage.
2. Remove grille by loosening the four mounting screws along the sides
of the front panel.
3. Detach interior assembly from the wall can by removing the four
screws along each side of the interior panel. Lift and tilt assembly
away from the top of the wall can. Free the bottom edge from the
metal lip inside the wall can. Place the interior assembly in a safe
location until the wall can is mounted.
4. Remove one knockout from the wall can and thread supply wires
through the hole. Use an approved cable connector to prevent wires
from chaîng. Connect groundwire to green pigtail.
5. Mount heater wall can on wall studs a minimum of 6" from side wall
and 4" from îoor, using the holes provided in the sides of the box.
The face of the box should be îush with the înished wall. Installation
of the interior and grille to the wallbox cover an approximate 5/8"
periphery along the outer area of the opening.
6. After wall can is secured interior assembly leads may be attached
to supply wires and interior secured to wall can. The LPW NOTE:
wall heater is equipped with two steel elements having a capacity of
2250 Watts each, for a combined capacity of 4500 Watts. The heater is factory-
wired at 4500 Watts. To adjust the heater for lower wattages remove the appropri
ate colored wire according to the illustration and wattage diagram provided on the
back side of this sheet. Be sure to insulate and secure the unused lead.
7. Reinstall interior assembly on wallbox using screws provided.
8. Mount grille to interior with screws provided.
9. Installation is now complete and the heater ready for use.
LPW2045T, LPWA2045T, LPW2445T, LPWA2445T, LPW2740T, LPWA2740T
240 VOLT MODELS with Disconnect Breaker and Remote User Switch
Maintenance & Warranty
The high quality and superior design of this unit will enable years of maintenance free performance. Once yearly
the heater should be checked for lint or dust accumulation but no further maintenance is required. The motor is
permanently lubricated and sealed. A 5-year warranty is provided on the Pic-A-Watt ÂŽ element and 1-year on all
materials, components and workmanship.
VISUAL ALARM
This heater includes a visual alarm to warn that
parts of the heater are getting excessively hot.
If the alarm îashes, immediately turn the heater
oî and inspect for any objects on or adjacent to
the heater that may cause high temperatures.
Do not operate the heater with the alarm
îashing.
LPW-As with disconnect.indd : 8/09

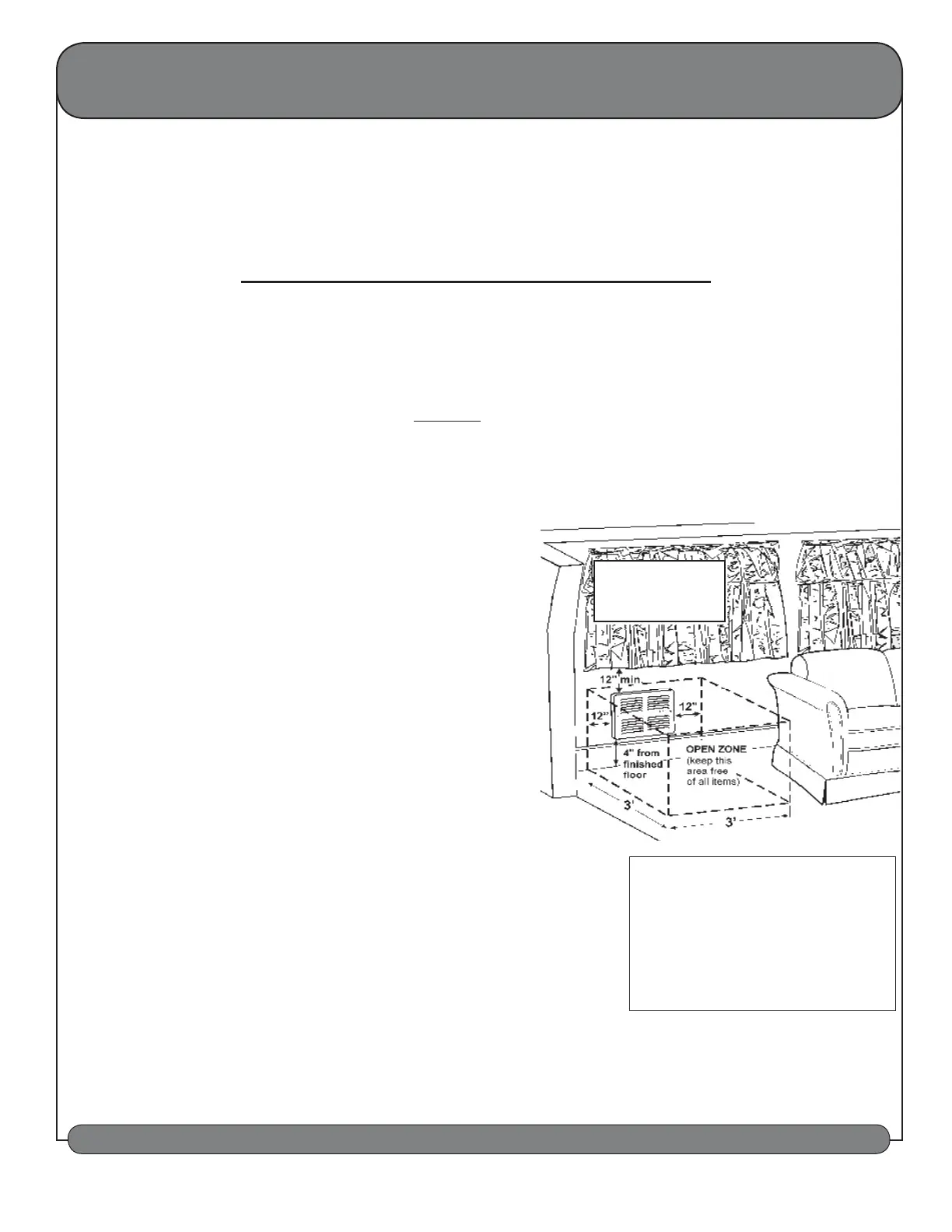

FAN-FORCED HEATERS:
Clearances for Safe
Operation
INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
OWNERS GUIDE & INSTALLATION INSTRUCTIONS SHOULD BE LEFT WITH HEATER FOR HOME OWNER
KING ELECTRICAL MFG. COMPANY ⢠9131 10th Ave So. ⢠Seattle, WA 98108 ⢠Ph: 206.762.0400 ⢠Fax: 206.763.7738 ⢠www.king-electric.com
21ž"
13"
½"
This heater includes a visual alarm to
warn that parts of the heater are getting
excessively hot. If the alarm îashes
immediately turn the heater oî and
inspect for any objects on or adjacent
to the heater that may cause high
temperatures. Do not operate the heater
with the alarm îashing.
Safety Light
LPW-As with disconnect.indd : 8/09
2250 ⢠2750 ⢠3000 ⢠3250 ⢠3750 ⢠4000 ⢠4500
WATTAGES AVAILABLE IN ONE UNIT
INSTALLATION INSTRUCTIONS
This heater is shipped from the factory
wired for maximum wattage of 4500
Watts. To reduce the wattage unplug
(disconnect) an insulated push on
terminal and wrap with electrical tape
to prevent the possibility of electrical
contact with other parts.
Field Wattage Selection
A - ORANGE Disconnects 1000 Watts
B - BLUE Disconnects 750 Watts
C - YELLOW Disconnects 500 Watts
D - BLACK Do Not Disconnect (Common)
E - RED Do Not Disconnect
END VIEW OF ELEMENT
SHOWING QUICK CONNECT TERMINALS
A E
DCommon
1000
E
E C
DCommon
1000
B
750 500
500
750
LPW2045T, LPWA2045T, LPW2445T,
LPWA2445T, LPW2740T, LPWA2740T
11½"
Insulated Push on
Terminal
A
BLUE
FAN
DELAY
1000 WATT
500 WATT
RED
YELLOW C
B
E
ORANGE
RED
RED E
E
BLACK #14
750 WATT
500 WATT
750 WATT
LIMIT
RED #14
BLACK #14
BLACK #16BLACK#16
1234
BLACK
ORANGE #14
RED #14
GRAY #16
PURPLE #16
FAN
Insulated Push on
Terminal
knob position .......L1-0, L2-0 OFF
knob position .......L1-2, L2-4 FAN
knob position HEAT......L1-1, L2-4, L2-3
Thermostat
1000 WATT
Rotary Switch
L1 L2
SAFETY
LIGHT
D
D
Pic-A-WattÂŽ
Metal Sheath Element
CONNECTIONS
2
3
1
FAN DELAY
1-3 N.C., 1-2 N.C.
1-2 Closes on Temp Rise
BLACK
Breaker
Disconnect
Terminal
Block
