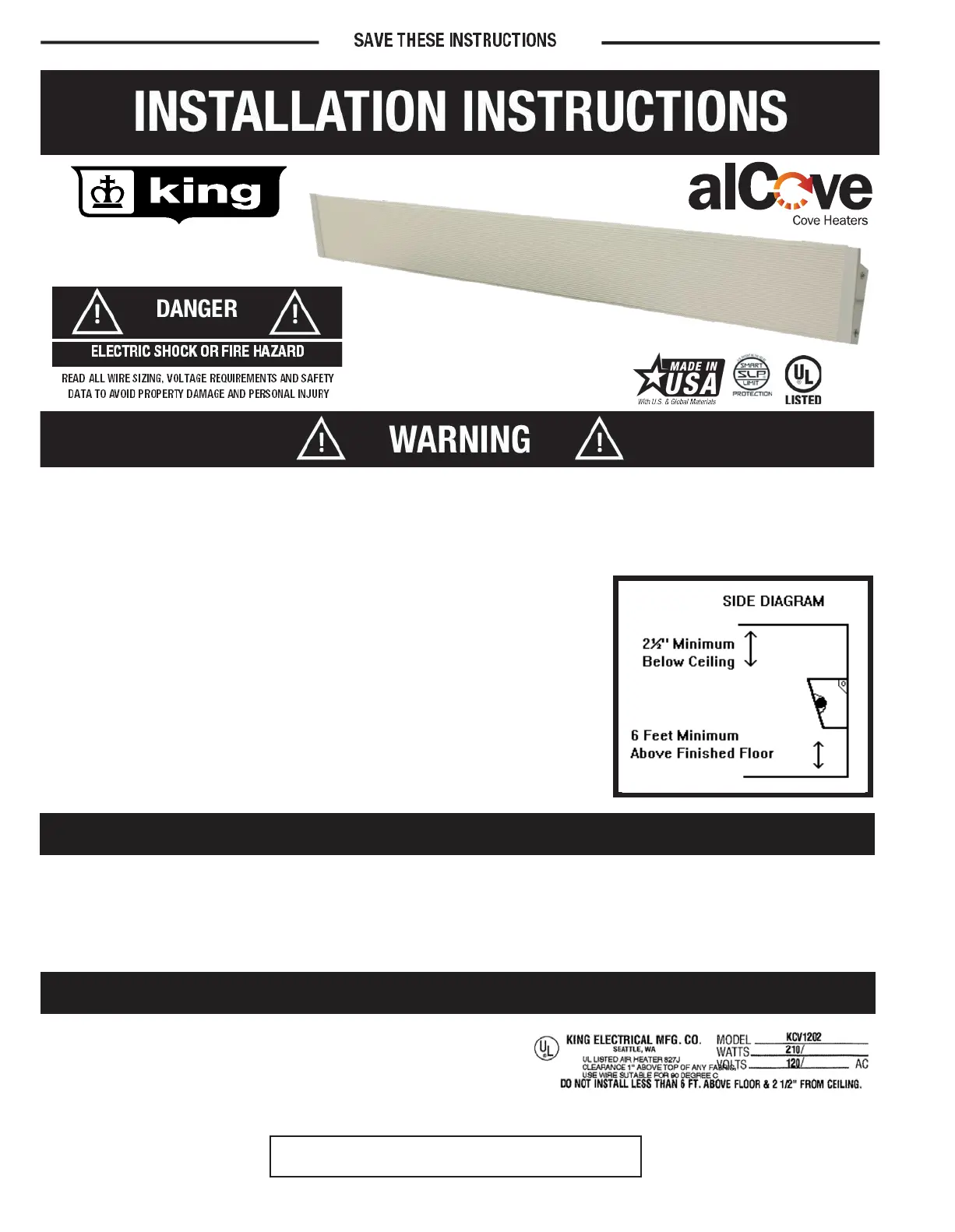

It is to verify the electrical power supply is the same voltage as the heater being installed.extremely important
240 and 120 Volt heaters are not interchangeable. Powering a 240 Volt unit with 120 Volt supply wires will
reduce heater output by approximately 75%. Powering a 120 Volt unit with 240 Volt supply wires will destroy the
heater and voids all guarantee and warranties.
CAUTION: Turn off power source supplying heater before attempting
any installation, maintenance or repairs. Lock or tag circuit breaker/fuse
panel door. Failure to do so could result in serious electrical shock, burns
or possible death.
WARNINGS: To insure proper operation of this heater it should be a minimum
of 6 feet above the floor and no closer than 2½” below drywall ceiling
(6” vinyl or drop ceilings). Draperies should clear the front and the top of this
heater by 6”. Draperies hung below the heater should have a 2½” clearance.
Do not block the heater in any manner. Never paint the heater.
MAINTENANCE & WARRANTY
KCV SERIES Cove
Heater
SAVE THESE INSTRUCTIONS
GENERAL INFORMATION
KING ELECTRICAL MFG. COMPANY • 9131 10TH AVENUE SOUTH • SEATTLE, WA 98108 • PH: 206.762.0400 • FAX: 206.763.7738 • www.king-electric.com
REV. 66447_11-23-20
Cove heaters are completely assembled and pre-wired. To prepare
the heater for installation, carefully check the voltage to be used is
the same as stated on the rating nameplate. Operating voltage can
not exceed 5% of nameplate voltage. Operating heater above listed
voltage ratings voids all gaurantees and warranties.
Following the guidlines herein listed will result in a maintenance-free heater. There are no moving parts or motors
to maintain. Periodic dusting of the front panel is all that is suggested.
The KCV Cove Heater carries a (2) warranty form date of installation. Please refer to the manufacturer’s warranty
statement for further information.
Diag. A
Fig. C
1. Remove heater from carton. Disassemble the aluminum heating
panel from the back support frame. Remove knock out in junction
box for electrical supply connection. See Figure A & B.
2. To install the back support frame on the wall, locate the studs in
the wall and use existing mounting holes or pre-drill 3/16” holes
as needed. Use appropriate fasteners to securely mount to wall.
See Figure B.
SAVE THESE INSTRUCTIONS
Following are some general guidelines:
•Do not recess this cove heater.
•Disconnect power at main panel.
•Make certain all wiring is in accordance with all
local codes and units are properly grounded.
•Voltage rating of heater should be the same as
supply load.
•Do not install the heater on vinyl wall coverings.
Fig. A
3. Temporarily hang the aluminum heating panel from the top lip
of both junction boxes. This will support the heater while the
electrical connections are made and allow one person to wire
the heater without having to hold the panel at the same time.
See Figure C.
4. Connect the supply cable grounding wire to the green wire pigtail
in wiring compartment.
5. Follow the desired wiring diagram, to connect the power supply to
the heater using approved wire nuts.
Instructions for left or right side wiring
6. Heater can be wired from either side - wire one side only.
Caution: Power wires should be connected on one side only.
In the opposite junction box, connect the white and black element wires together
using an approved wire nut. See Figures D and E.
Fig. B
24" TO 118"
KNOCK OUT IN BACK
MOUNTING HOLE
49
32
"
321
32
"
TOP VIEW
1"
BACK VIEW
TOP
BOTTOM
AFTER ATTACHING
WIRES, PUSH WIRES
INSIDE BOX AND
REPLACE END CAPS.
File #E41422
CAUTION
The heater should not be covered or blocked in any manner.
7. After wiring is complete, carefully press the electrical wires into the junction box, making sure not to pinch any wires
between the junction box and the heating panel.
8. Install the end caps: Push the bottom edge of the aluminum heating panel towards the back panel, while installing
the end caps and lightly tighten the 2 screws to secure it. Do Not Overtighten, as the aluminum heating panel will
expand and contract during heating, requiring it to move freely. See Figure F.
Fig. D
Fig. E
Fig. F
SAVE THESE INSTRUCTIONS
LEFT END
BLACK
ELEMENT
WIRE
LEFT END OF
WHITE OR
WHITE/BLACK
WIRE
LEFT
GREEN
GROUND
WIRE
RIGHT GREEN
GROUND WIRE
RIGHT END OF
WHITE OR
WHITE/BLACK
WIRE
RIGHT BLACK
ELEMENT WIRE
LEFT BLACK
SUPPLY WIRE
LEFT WHITE
SUPPLY WIRE
ELEMENT
WHITE LINE IN
BLACK LINE IN
GROUND IN
LINE IN ON LEFT JUNCTION BOX
WHITE WIRE
BLACK WIRE
LEFT END
BLACK
ELEMENT
WIRE
LEFT END OF
WHITE OR
WHITE/BLACK
WIRE
LEFT GREEN
GROUND WIRE
RIGHT BLACK
ELEMENT WIRE
RIGHT BLACK
SUPPLY WIRE
RIGHT END OF
WHITE OR
WHITE/BLACK
WIRE
RIGHT WHITE
SUPPLY WIRE
RIGHT GROUND
SUPPLY WIRE
RIGHT GREEN
GROUND WIRE
ELEMENT
WHITE LINE IN
BLACK LINE IN
GROUND IN
LINE IN ON RIGHT JUNCTION BOX
WHITE WIRE
BLACK WIRE
HEAT TRANSFER PLATE
SCREWS FOR
END CAP
END CAP
