SAVE THESE INSTRUCTION
INSTALLATION AND MAINTENANCE
DANGER !!
ELECTRIC SHOCK OR FIRE HAZARD
READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY
DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

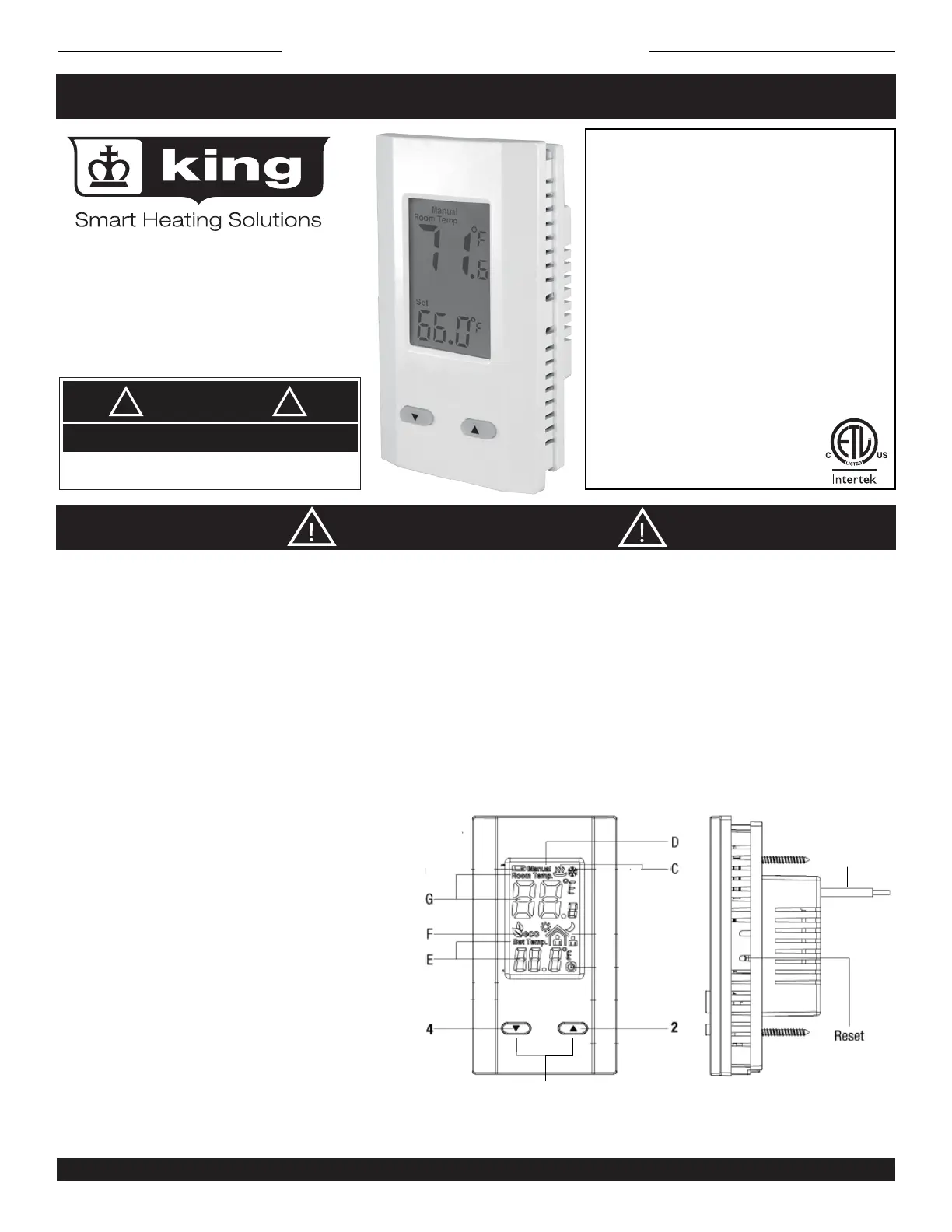

K701-1-DTSB
AUTONOMOUS
DUAL TIMED STAT
Specifications:
1 Pole 3 Wire
Power Supply: 120 VAC
Program Backup
Max Range: 1920 @ 120V (16A)
Manual Temperature Adjustment: 55-74°F (13-23°C)
Temperature Display Range: 32-122°F (0-50°C)
Differential: 1°F (.5°C)
Adjustable Display Offset: 1-18°F (1-5°C) Lower
Temperature Control Range: 40-74°F (4-23°C)
Tenant Temperature Range: 55-74°F (13-23°C)
Anti-Freeze Low setting: 40°F (4°C)
Set Back Timings: Minor, Hrs: 1,2,3,4,8,12,16
Major, Hrs:12,24,36,48,60
Setback Temperatures:
Minor, 66,62,58°F. (19,17,14°C)
Major, 55,52,40°F. (13,11,4°C)
WARNING
READ CAREFULLY - These instructions will help prevent difficulties that might arise during thermostat installation. Studying the instructions first may save
considerable time and money later. Observing the following procedures will keep installation time to a minimum. Save these instructions for future use.
2 ) Up Temperature Button
4 ) Down Temperature Button
C ) Heating ON LCD Indicator
D ) Manual Setting Icon
E ) Preset Temperature Display
F ) ECO Setback Indicator
(Illuminates When Operating
with Set Temp Under 62°F/17°C)
G ) Room Temperature Display
H ) Temperature Offset Display Compensation
Features of Front Display and Controls
Product Applications
K701-1-DTSB Autonomous Dual Timed Setback is designed to be used where an Automatic timed electric heat setback is needed and a second lower setback for
longer away times. This is typically used in College Dormitory’s, Motels, Temporary housing, anywhere the tenant is not finically responsible for the cost of
heating and has an active life pattern. This guarantees and reinforces good energy saving habits and places the burden on the Tenant for the higher heating
levels and their efforts to remain above a predefined reasonable and typically comfortable level.
Be safe and smart, electricity can cause severe injury or death.
If you are uncomfortable hire an electrician for the project
This Autonomous Dual Timed Setback is for small fan electric heater, baseboards, radiant ceiling, wall panel heaters, cove heaters, or any 120 Line voltage
resistance heating systems that do not have an electric motor over 1/3 hp. The thermostat will be warm to the touch on top. This is normal operation and also
provides air currents across the face of the thermostat that better help it sense room temperature.
KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com
1
FOR INDOOR USE ONLY
6” Leads
REV 7-27-17
H
Wiring Requires a Phillips Screwdriver
1. Disconnect power supply to prevent electrical shock or damage to the product.
2. Loosen screw on the bottom of plastic housing.
3. Run line voltage wiring from the main panel to the j Box location for the thermostat
and another set off to the Heater/s you are controlling.
4. Connect output terminals to heating system in accordance with instructions from the
240 volt electric heat system.
5. Make sure your wire nuts are very tight or they can melt. Mount Stat to the J box making sure
it is COMPLETELY RECESSED into the junction without pinching wires and flat to the wall without
gaps. NO WIRES SHOULD BE EXPOSED outside the metal or plastic junction box. Do not overtighten
the J Box mounting screws. Display or circuit boat could be damaged. Carefully replace cover
aligning the 3 pins that mate up to the front cover and screw the cover on with a phillips tip driver.
SAVE THESE INSTRUCTION
WIRING INSTRUCTIONS
K701-1-DTSB Wiring Diagram
KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com
REV 7-27-17
2
1-5/16”
5/32”
4-7/8”
2-1/16”
1-1/8”
2-11/16”
6” Leads x4
3-3/8”
1-11/16”
DO NOT USE
IN SHOWER AREAS
WHERE WATER CAN
SPLASH ON
THERMOSTAT
NOT OUTDOOR
RATED
Operation Instructions
1. The Autonomous Dual Timed Setback series thermostat default is programmed to
automatically set back to 66°F/19°C in 2 hrs. and 55°F/13°C in 48 hrs.
See Chart for other options.
Manual Temperature Adjustment Range: 55°-74°F (13-23°C)
1. Press the “Up” and or “Down” arrow key and LCD will show a flashing
temperature with “Set Temp” symbol.
2. Proceed by pressing the “Up” or “Down” arrow key to set the desired temperature.
Every time you press the “Up” or “Down” arrow key, the temperature will change
the temperature value by 1°F/1°C.
3. When you’ve completed setting the desire temperature, wait 3 seconds until
the LCD stops flashing and the thermostat will start operation and backlite will turn off.
When the room temperature reaches the desired setting, the thermostat will cycle
to maintain the set temperature for the time programmed.
Display Temperature Offset Compensation:
In unusual cases your Autonomous Dual Timed Setback may register “Room Temperature” higher than
what the actual temperature is. You can adjust the registering value by using Temperature Compensation value.
1. Press and hold the “Up” and “Down” arrow keys at same time for 5 seconds.
2. The initial value is 0°F/0°C. Press the “Up” or “Down” arrow key to adjust the value.
3. After adjustment value has been completed, do not press any key, wait for 10 seconds until the display
returns to normal operation.
NOTE: The TimerStat can only adjust the displayed temperature compensation downward by up to 18° F/10°C.
Reset Your Autonomous Dual Timed Setback:
In case your thermostat is not functioning correctly, (possibly due to a static charge) you can reset the unit back to the factory settings.
Locate the RESET button on the right side of the unit, lightly press the button with a pointy object and the unit will reset.
Thermostat Dimensions Reset
1 Pole 3 Wire
NO GROUND
REQUIRED
POWER SUPPLY
L1
NEUTRAL
WHITE
LOAD
RED
HEATER
LINE
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
Manual Temperature Adjustment Range:
55°-74°F (13-23°C)
KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: 206.763.7738 · www.king-electric.com
REV 7-27-17
3
