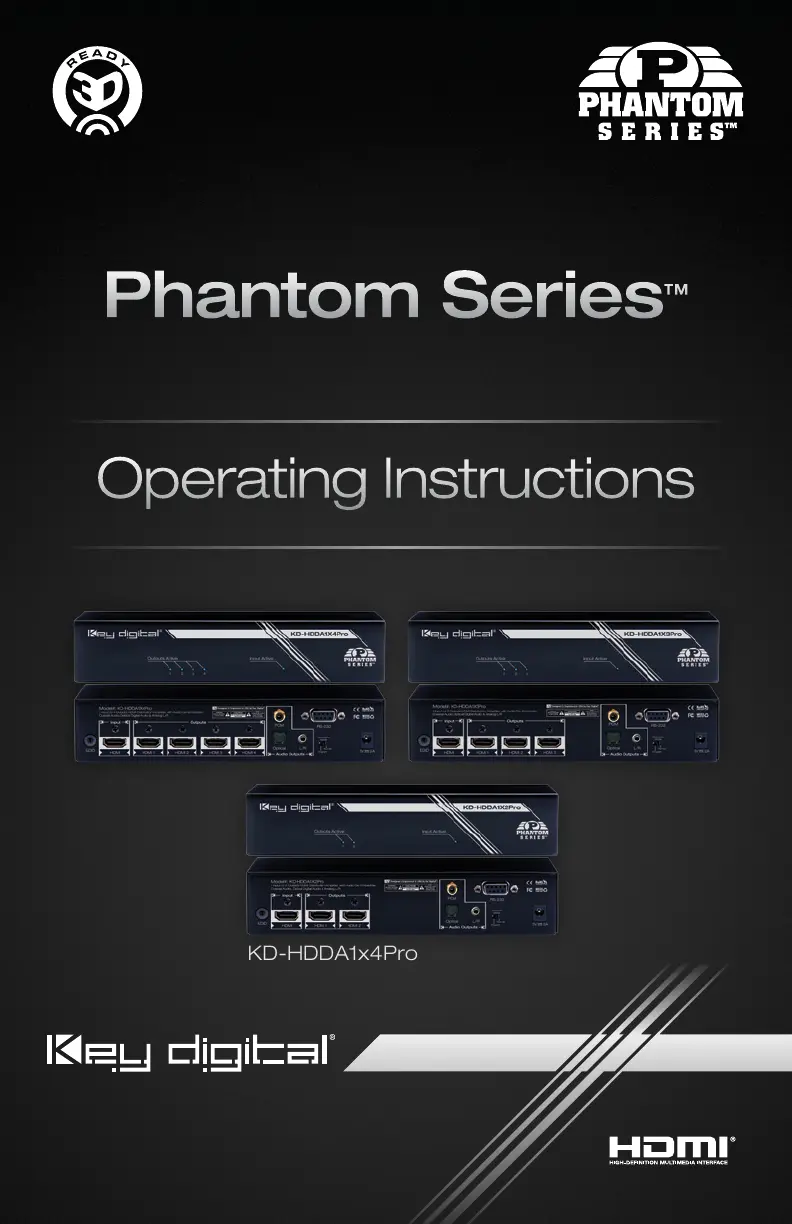

HDMI® Distribution Amplifiers with Audio De-Embedder,
Coaxial Audio, Optical Digital Audio & Analog L/R
The Experts in Digital Video Technology and Solutions™
KD-HDDA1x2Pro KD-HDDA1x3Pro
KD-HDDA1x4Pro
4
Always follow the instructions provided in this Operating Manual.
© 2013 Key Digital, Inc. All rights reserved.
Table of Contents
Introduction 1................................................................
Quick Setup Guide 2 ..........................................................
Installation and Operation 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DVI Applications for KD-HDDA Pro Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
EDID Control Settings 4 ........................................................
External Audio Outputs 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RS-232 Commands and Protocol 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical / Technical Specications ............................................ 6
Important Product Warnings: 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions: 7 ..........................................................
How to Contact Key Digital
®
................................................... 8
Warranty Information 8.........................................................
1
Introduction
Key Digital® Phantom Series™ HDMI/DVI Distribution Ampliers are designed and engineered
to offer the best in quality, performance, and reliability while providing a cost effective HDMI/
DVI distribution solution. The KD-HDDA1x2Pro; KD-HDDA1x3Pro; KD-HDDA1x4Pro HDMI
Distribution Ampliers provide single input to multiple output distribution and maintain
crystal-clear, pristine picture and sound quality. Phantom Series™ Distribution Ampliers are
a transparent solution for all digital video/audio distribution applications and support all HD
and SD video standards, including 1080p/60. KD-HDDA Pro Distribution Ampliers feature
status-monitoring LEDs and are capable of separating HDMI Audio.
About the KD-HDDA1x2Pro; KD-HDDA1x3Pro; KD-HDDA1x4Pro
Distribution of one HDMI input to multiple (2, 3, or 4) HDMI outputs
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) resolutions up to
1080p (60Hz & 50Hz)
»SD & HD: 480i, 480p, 720p, 1080i, 1080p
»VESA: From 640x480p up to 1920x1200p
EDID and HDCP Transparency between source and displays
Can be used to strip audio from the HDMI input and send it to external digital or analog audio
outputs
Supports signal rates up to 10.2 Gb per second
Supports HDMI and DVI-D
Compliant with all HDMI® versions and HDCP copyright protection
Input and Output status indicated by LED lights
Firmware upgradable
Rack mountable
Advanced HDMI® Features
3D – Capability to pass 3D stereoscopic signal formats
Accessories
External power supply: 5V 2A
HDMI Lacing Clips
Rack Ears
Operating Instructions
Warranty Card
