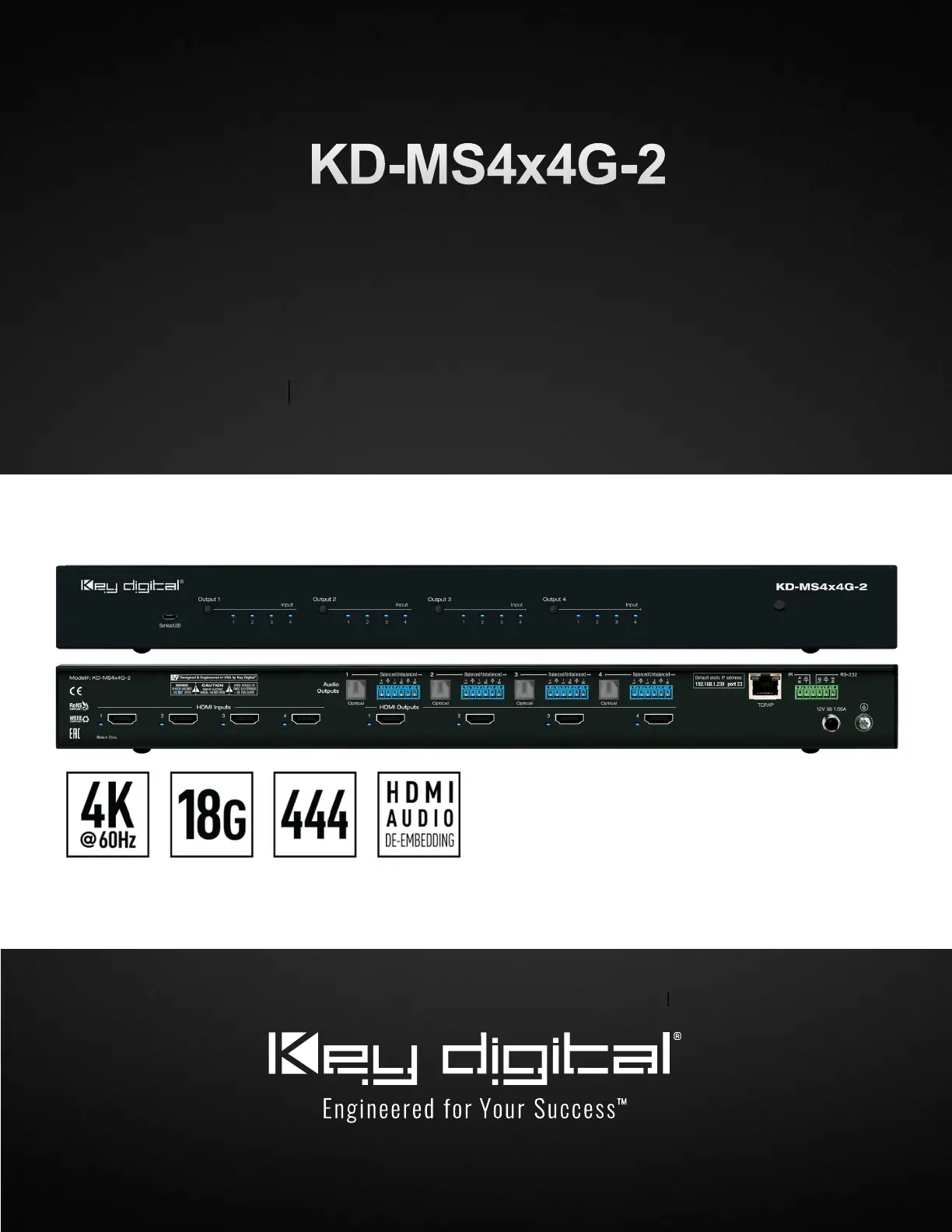

4x4 4K 18G HDMI Matrix Switch with Independent Audio
Routing, Digital Optical and Analog Balanced / Un-balanced
Audio De-Embedding, Web Control UI
521 East 3rd Street Mt. Vernon, NY 10553 ā¢ www.keydigital.com
Rev 1.0 Nov, 2022 ā
2
Table of Contents
About -MS4X4G-2 3 KD
Quick Setup Guide 4
Connect 4
Conīgure Using KDMS Pro 4
Control 6
Application Example 10
Connections, Buttons, and LEDs 10
TCP/IP and RS-232 Commands 13
Specifications 17
Warranty Information 18
Product Warnings & Safety Instructions 18
Operation Manual
Please visit www.keydigital.com for the latest product documentation,
firmware, control drivers and software downloads. Product features and
speciīcations are subject to change without notice
Always follow the instructions provided in this Operating Manual.
521 East 3rd Street Mt. Vernon, NY 10553 ā¢ www.keydigital.com
Rev 1.0 Nov, 2022 ā
3
About -MS4X4G-2KD
Key Digitalās KD- -2 is a 4K matrix switcher with support of 18Gbps signal bandwidth and HDCP 2.2 for MS4x4G
routing and distributing 4 HDMI source signals to 4 displays. KD MS4x4G- -2 features 4 analog
balanced/unbalanced and optical digital audio outputs which may be independently controlled to follow the
HDMI output selection or separately switched to accommodate a wide variety of usage applications in
professional AV systems integration. KD- -2 supports all SD, HD, VESA and Ultra HD/4K video MS4x4G
standards up to and including UHD/4K 18G and 1080p. All UHD/4K EDID handshake īles include HDR header
information.
Key Features
ā¢ 4 HDMI sources to 4 HDMI outputs HDMI Matrix Switching:
ā¢ Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps
bandwidth)
ā¢ Fully licensed and compatible with HDCP 2.2HDCP Licensing:
ā¢ -like images through a greater range of luminance levelsHDR10 and Dolby VisionĀ®: More life
ā¢ Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to
4096x2160p
ā¢ Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits Deep Color Support:
ā¢ 6 pin balanced / un- Audio De-Embed: balanced and digital optical outputs
ā¢ Output HDMI and Audio ports may Independent Audio and Video Matrix: route together or
independently
ā¢ -clocking / signal re-Full Buīer Systemā¢: Manages TMDS re generation, HDCP authentication to
source & display, and EDID Control handshake
ā¢ rary with 15 internal EDID conīgurations per input, in addition to native EDID data for EDID: Internal lib
any Output/Display
ā¢ TMDS re-clocking: Support for long HDMI connectivity using Key DigitalĀ® HDMI cables
ā¢ -channel and multi-channel surround formats up to DTS-Dolby DigitalĀ® & DTS ā¢Audio: Supports 2 HD
Master Audio , DTS:XĀ®, DolbyĀ® TrueHD, Dolby AtmosĀ® ā¢
ā¢ Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP ControlControl:
ā¢ Web UI: Control AV routing and other basic functions from any web browser
ā¢ Key DigitalĀ® app ready, Compass ControlĀ® Pro ready. Fully controllable by Control System Support:
all IR, RS-232, and TCP/IP supported control systems via open API.
ā¢ Scan & detect population for pre-built GUI and TCP/IP control Key DigitalĀ® App & KDMSĀ® Pro Ready:
via Key DigitalĀ® App and Key Digital Management Software setup ā¢Pro (KDMSā¢Pro) PC Software
Accessories
ā¢ - C Power supply, KD PS20W12V 12V/1.66A
( W) DC Power Jack, Screw In Type 20
ā¢ (2) Rack ears
ā¢ model KDRM IR Remote Control, SG
ā¢ (5 6-pin terminal block )
ā¢ USB Micro to USB A USB Setup Cable,
