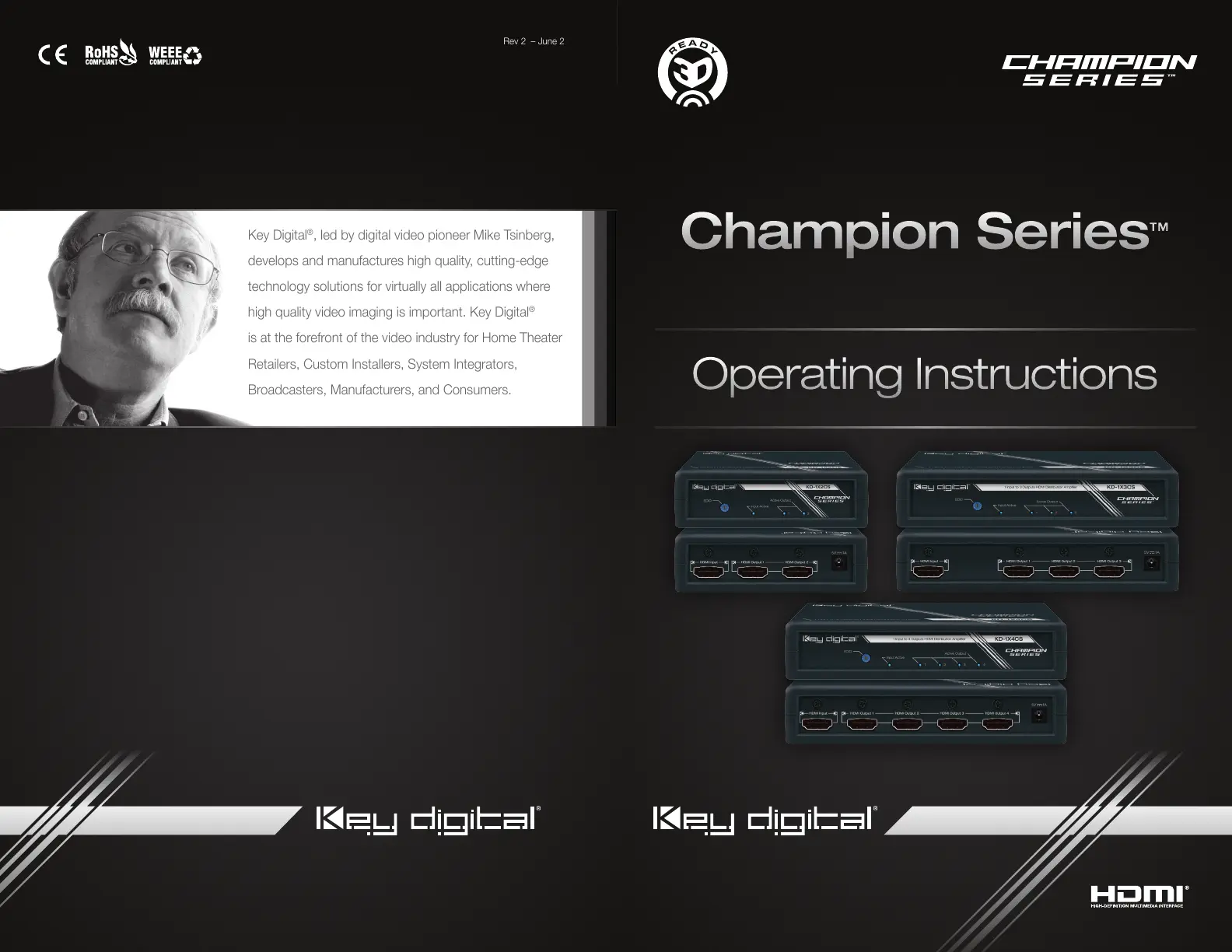

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Key Digital Champion KD-1X3CS (12 Seiten) in der Kategorie Splitter. Dieser Bedienungsanleitung war für 6 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet
Seite 1/12
HDMI
®
Distribution Amplifiers
The Experts in Digital Video Technology and Solutions™
Key Digital® Systems 521 East 3rd Street Mount Vernon, NY 10553 :: ::
Phone 914.667.9700 Fax 914.668.8666 Web www.keydigital.com : : :
Rev 2 – June 2013
KD-1X2CS KD-1X3CS
KD-1X4CS
Key Digital®, led by digital video pioneer Mike Tsinberg,
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
®
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
4 1
Introduction
Key Digital® Champion Series™ HDMI Distribution Ampliers are designed and engineered to
offer the best in quality, performance, and reliability while providing a cost effective HDMI/DVI
distribution solution. The KD-1X2CS, KD-1X3CS, KD-1X4CS HDMI Distribution Ampliers
provide single input to multiple output distribution and maintain crystal-clear, pristine picture
and sound quality. Champion Series™ Distribution Ampliers are a transparent solution for
all digital video/audio distribution applications and support all HD and SD video standards,
including 1080p/60. KD-1X2CS, KD-1X3CS, KD-1X4CS Distribution Ampliers feature
status-monitoring LEDs and support for advanced HDMI 3D feature.
About the KD-1X2CS, KD-1X3CS, KD-1X4CS
Distribution of one HDMI input to 2/3/4 HDMI outputs
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) resolutions up to
1080p (60Hz & 50Hz)
»SD & HD: 480i, 480p, 720p, 1080i, 1080p
»VESA / DVI: From 640x480p up to 1920x1080p
EDID Control featuring internal library settings or auto EDID selection of display
Supports signal rates up to 10.2 Gb per second
Supports HDMI and DVI
Compliant with HDCP copyright protection
Compliant with all HDMI
®
versions
Auto Sensing and Formatting for HDMI and DVI Output Devices connected
1 Key Technology authenticates topology of connected source and displays
Input and Output status indicated by LED lights
Default EDID for 1080i or 1080p systems (EDID Control
™
)
Supports lossless compressed digital audio:
»Dolby
®
TrueHD, Dolby
®
Digital Plus and DTS
™
-HD Master Audio
Advanced HDMI® Features
3D – Capability to pass 3D stereoscopic signal formats
Accessories
External power supply: 5V 1A
HDMI Lacing Clip
Operating Instructions
Warranty Card
Table of Contents
Introduction 1................................................................
Quick Setup Guide 2 ..........................................................
DVI Applications for KD-1X2CS, KD-1X3CS, KD-1X4CS 3..............................
Installation and Operation 3 .....................................................
EDID Control Settings 4 ........................................................
Mechanical / Technical Specications ............................................ 5
Terminology 6................................................................
Important Product Warnings & Safety Instructions 7...................................
How to Contact Key Digital
®
................................................... 8
Warranty Information 9.........................................................
Always follow the instructions provided in this Operating Manual.
© 2012 Key Digital, Inc. All rights reserved.
