Seite 1/8

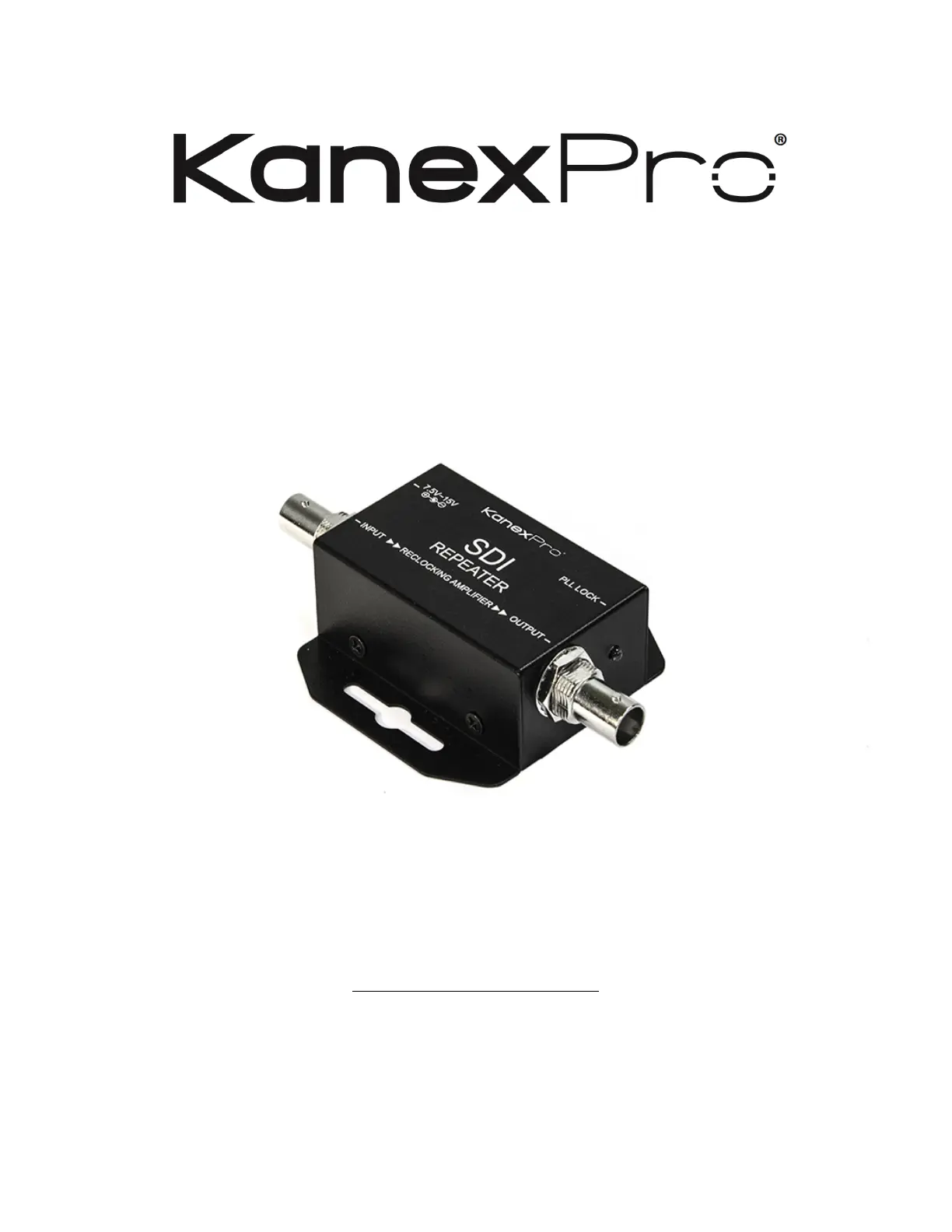

SDI-HDRPTPRO
HD-SDI Repeater with Signal Equalization & Re- clocking
User Manual
Version 1.2
KANEXPRO SDI-HDRPTPRO
2 | P a g e
Index
Introduction ............................................................................... 3!
Features .................................................................................. 3!
Package Includes 3....................................................................... !
Connection Diagram .................................................................... 4!
Front Panel ............................................................................... 5!
Rear Panel ............................................................................... 5!
Specifications ............................................................................ 6!
Update List ............................................................................... 7!
Warranty ..................................................................................... 7!
KANEXPRO SDI-HDRPTPRO
3 | P a g e
Introduction
The KanexPro 3G/SDI/HD-SDI Repeater is designed for extending AV signals at
longer runs up to 300 meters using single RG6 cable. It also embeds audio up to
7.1 channels passing ancillary data. Perfect for surveillance systems, rental &
staging facilities, post-production, TV studio, digital cinema, or other A/V
applications
Features
• Extend and repeat SDI signals up to 300 meters*
• – - Auto input detection for 3G/HD/SD SDI
• Supports full HD 1080p/60
• - - Built in signal equalizer & re clock function
• - Audio format support up to 16 channel@24 bit, 48KHz
• Compact & rugged housing
• Locking power supply & mounting ears
• Universal power supply for worldwide compatibility
• - Micro USB Port for firmware update
* 300 meters will support standard SDI resolutions when used with RG 59 (75 ohms cable) & up to 200 -
meters support for HD-SDI and 3G SDI signals when used with RG- -6 cable.
Package Includes
The SDI Rep ter package contains the following items: ea
! User Manual x 1
! DC Adapter x 1
