Seite 1/14

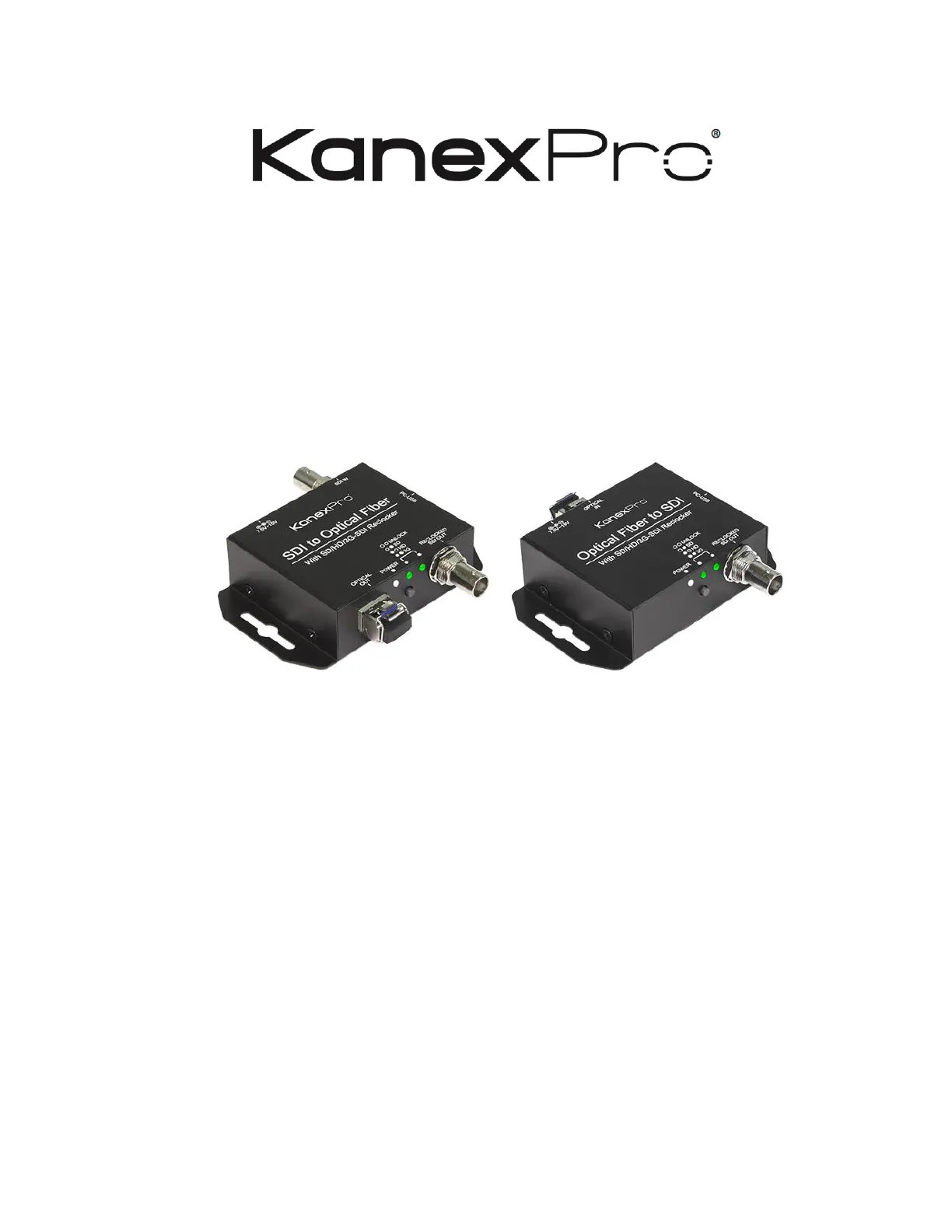

SDI-EXTFIBERPRO
Extend 3G/HD-SDI Signals on a Single Mode Optical Extender
User Manual
Version 1.0
KANEXPRO -EXTFIBERPRO SDI
2 | P a g e
Content
Features ............................................................................................................ 3
Fiber to SDI ....................................................................................................... 4
Front Panel ........................................................................................................ 4
Rear Panel ........................................................................................................ 5
Side Panel ......................................................................................................... 5
SDI to Fiber ....................................................................................................... 6
Front Panel ........................................................................................................ 6
Rear Panel ........................................................................................................ 6
SFP Connector .................................................................................................. 7
Button/LED Indicate 8..........................................................................................
Installation ......................................................................................................... 9
Package Contents ............................................................................................. 9
Specifications .................................................................................................. 10
Firmware Upload ............................................................................................. 11
Update List ...................................................................................................... 13
Warranty .......................................................................................................... 13
KANEXPRO -EXTFIBERPRO SDI
3 | P a g e
Introduction
The KanexPro Fiber Optic SDI Extender is a simple extender designed for
extending 3G SD, -SDI signals over fiber up to a distance of 6.2 miles (10 , HD
Kilometers). Supporting resolutions up to HD 1080p/60. The fiber extender uses
pluggable and interchangeable fiber SFP design with LC connector.
Features
ï‚· Convert and Extend one input to Fiber LC
ï‚· Ideal for long haul transmissions
ï‚· Built-in signal equalizer & re-clock function
ï‚· Auto-sensing for 3G/HD/SD-SDI signals
ï‚· SDI Supported HD formats:
ï‚· 720p/50 & 60
ï‚· 1080i/50 & 60
ï‚· 1080p/24, 25, 30, 50 & 60
ï‚· SDI video formats: 525i & 625i SD D1
ï‚· Audio format support up to 8-channel@24 bit, 48KHz
ï‚· Ultra-low power consumption
ï‚· Compact & rugged housing
ï‚· Locking power supply & mounting ears
ï‚· PC-USB port for firmware upgrade
