1
MX-HDBT8X818G

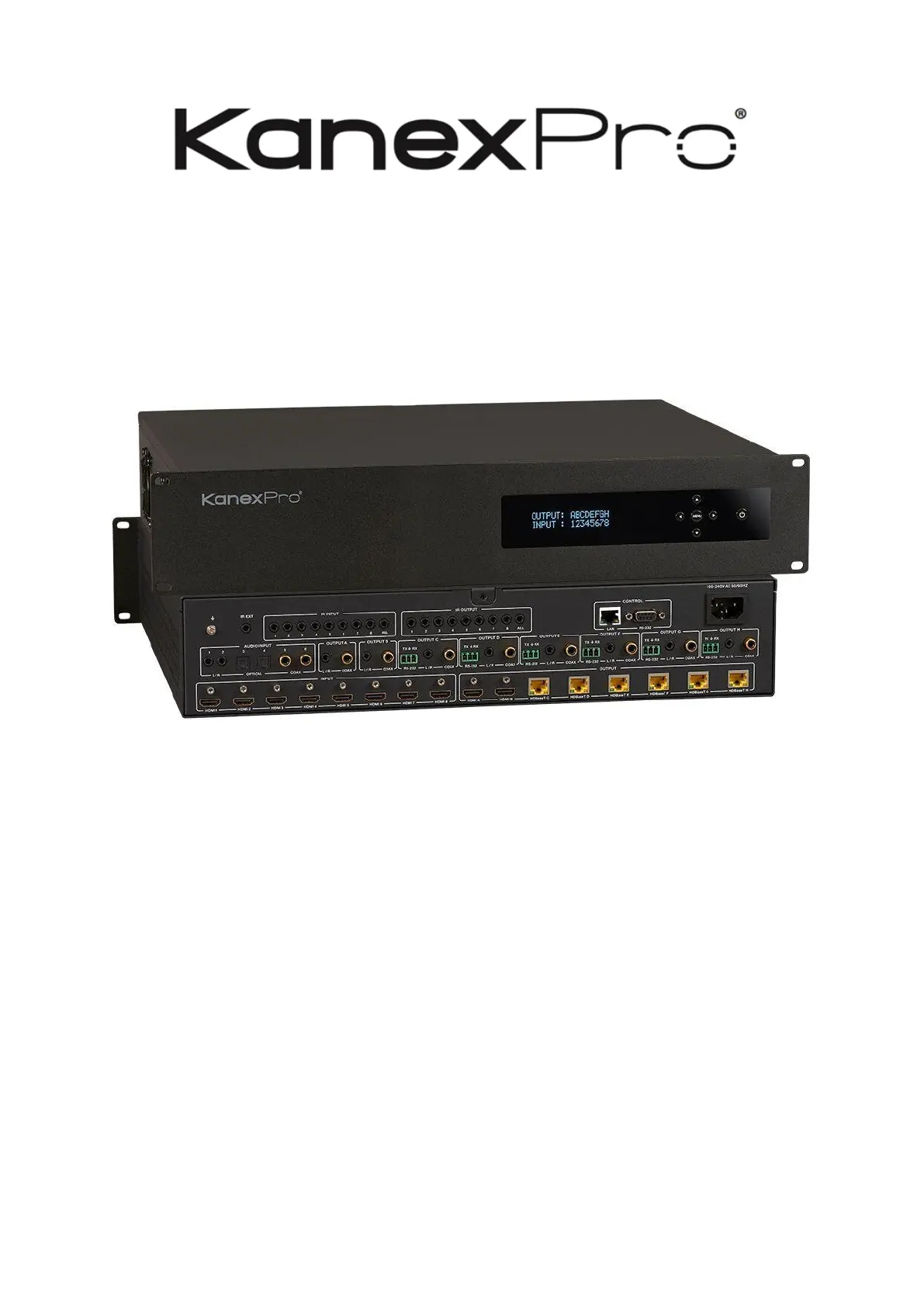

8 by 8 HDMI and HDBaseT Matrix Switcher with Audio Matrixing
All Rights Reserved
MPN# -HDBT8X818G MX
2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future
reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection
systems is highly recommended in order to protect and extend the life of your
equipment.
Table of Contents
1. Introduction ..................................................................................................................................... 3
2. Features ........................................................................................................................................... 3
3. Package Contents ............................................................................................................................ 4
4. Specifications ................................................................................................................................... 5
5. Operation Controls and Functions .................................................................................................. 6
5.1 Front Panel ............................................................................................................................. 6
5.2 Rear Panel .............................................................................................................................. 8
6. IR Remote ...................................................................................................................................... 10
7. IR Control System .......................................................................................................................... 12
8. IR Cable Pin Assignment ................................................................................................................ 15
9. HDBaseT Receiver .......................................................................................................................... 15
10. EDID Management ...................................................................................................................... 17
11. Audio Matrix ................................................................................................................................ 19
12. Web GUI User Guide.................................................................................................................... 21
13. ASCII control command ............................................................................................................... 31
14. Application Example .................................................................................................................... 37
15. FAQ ............................................................................................................................................... 38
3
1. Introduction
The 8 by 8 HDMI and HDBaseT Matrix Switcher supports transmission of video
(resolution up to 4K2K@60Hz YUV 4:4:4, 18Gbps, HDCP 2.2) and audio (multi-
channel digital / analog stereo) while providing flexible control via front panel button
(with OLED screen), IR remote, RS-232 or Web GUI. You can switch any of 8 sources
to 2 independent HDMI 2.0 outputs and 6 HDBaseT outputs. These HDBaseT ports
extend distance up to 330 feet / 100 meters and resolution up to 1080p@60Hz or
distance up to 295 feet / 90 meters and resolution up to 4K2K@60Hz YUV 4:4:4 via
single CAT6/6a/7 cable. All HDMI outputs support internal audio embed, you can
choose the internal embed audio by Web GUI.
The Matrix Switcher built-in an independent audio matrix and the audio matrix can
be choose audio input signal from 6 external audio sources, 8 HDMI inputs audio
or 8 ARC audio inputs, and audio volume / mute / delay function can be adjusted by
Web GUI. Moreover, the product supports two-way IR function (except 2 local HDMI
outputs), and the IR control follows HDMI video channel.
The product provides an intuitive set of front panels with OLED screen and supports
front panel button, IR remote, RS-232 or Web GUI control ways.
2. Features
☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
☆ Support 8 HDMI sources to 2 independent HDMI outputs and 6 HDBaseT
