KanexPro HAECOAX Bedienungsanleitung

KanexPro Audio/Video-Konverter HAECOAX

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für KanexPro HAECOAX (7 Seiten) in der Kategorie Audio/Video-Konverter. Dieser Bedienungsanleitung war für 13 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Download PDF
Seite 1/7

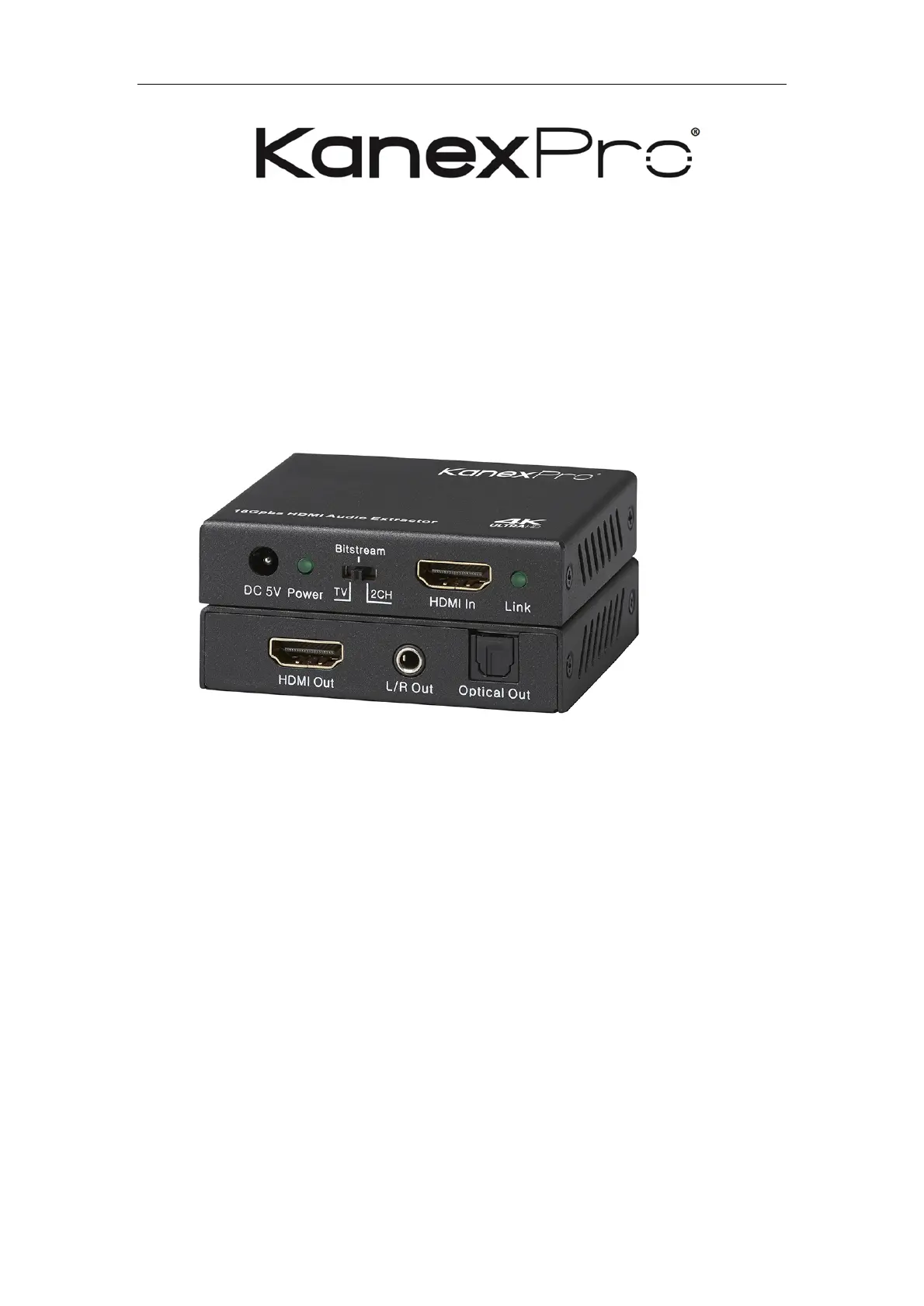

KANEXPRO HAECOAX3
1 7/
HAECOAX3
HAECOAX3
HAECOAX3
HAECOAX3 HAECOAX3
USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL USER MANUAL
18Gbps 4K HDMI® Audio Extractor
18Gbps 4K HDMI® Audio Extractor
18Gbps 4K HDMI® Audio Extractor
18Gbps 4K HDMI® Audio Extractor 18Gbps 4K HDMI® Audio Extractor
with Dolby Atmos®
with Dolby Atmos®
with Dolby Atmos®
with Dolby Atmos®with Dolby Atmos®
!
KANEXPRO HAECOAX3
2 7/
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes,
surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended
to protect and extend the life of your equipment.
Table of Contents
1.!Introduction ............................................................................................................................ 2!
2.!Features ................................................................................................................................... 3!
3.!Package Contents ............................................................................................................... 3!
4.!Specifications ........................................................................................................................ 3!
5.!Operation Controls and Functions .................................................................................. 5!
5.1!Front Panel ......................................................................................................................... 5!
5.2!Rear Panel .......................................................................................................................... 5!
6.!Connection Diagram .......................................................................................................... 6!
1. Introduction
The KanexPro HAECOAX3 is our 3rd gen. audio extractor designed with 18 Gbps of high
bandwidth and supporting the latest HDMI 2.0 specifications. This audio extractor will de-embed
KANEXPRO HAECOAX3
3 7/
HDMI audio streams from any HDMI based device to digital or analog stereo maintaining 4K/60
video resolutions with YUV 4:4:4 color space and pass-thru for 10 bit HDR (High Dynamic Range).
Audio formats include LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos
and DTS-HD Master audio with audio sampling rate up to 192kHz.
2. Features
1) 4K/60 HDMI Audio Extractor with Dolby Atmos®
2) Select your bit- stream audio by switching instantly
3) 18 Gbps bandwidth with latest HDMI 2.0 Specs
4) Supports HDMI® HBR (High Bit Rate) audio pass- through
5) Supports HDR 10(High Dynamic Range) pass- through for wide color gamut
6) Supports video resolutions up to 4K@24/30/50/60Hz (YUV4:4:4) & 1080p HD
7) De- -embeds audio to multi channel digital via TOSLINK / SPDIF or analog
8) HDCP 2.2 compliant
9) pass through CEC-
10) HDMI audio output: PCM 2, 5.1, 7.1, Dolby 5.1, DTS 5.1, D HD- -TrueHD & DTS
11) Supports uncompressed audio such as LPCM
12) Converts 2CH from 24-bit up to 192 kHz audio
13) Automatic input cable equalization
3. Package Contents
• 1 x HDMI 18Gbps Audio Extractor
• 1 x 5 1A V/ Power Adaptor
• 1 x User Manual
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.4
Video Bandwidth
18 Gbps
Video Resolutions
up to 4K2K@50/60Hz( 4:YUV 4:4),4K2K@30Hz,1080P@120Hz,
and 1080P 3D@60Hz
