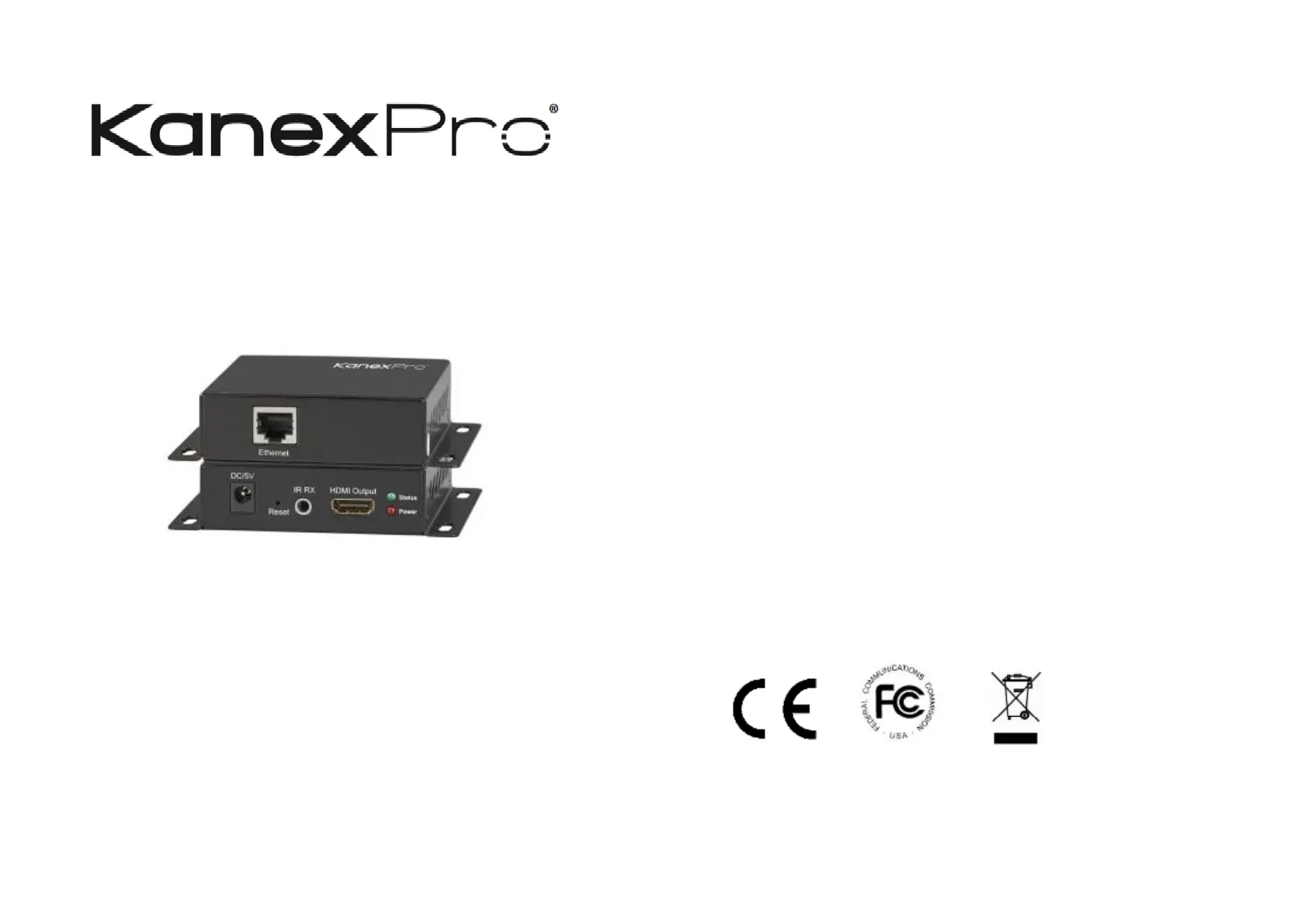

EXT-AVIP120M RX
USER MANUAL
L
HDMI® Video Over IP Decoder Kit up to 120m
All Rights Reserved
Version: EXT-AVIP120MRX_2017V1.2
Preface
Read this user manual carefully before using this product. Pictures displayed in this
manual are for reference only. Different models and specications are subject to
the actual product.
This manual is only for operational instruction, not for any maintenance usage. The
functions described in this version are updated till June . Any changes of 2016
functions and parameters since then will be informed separately. Please refer to
the dealers for the latest details.
All product function is valid till 2017-6-2.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment can generate, use, and radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits of a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever
measures may be necessary to correct the interference
Any changes or modications not expressly approved by the manufacture would
void the user’s authority to operate the equipment.
1
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
Follow basic safety precautions to reduce the risk of re, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent re or shock hazard, do not expose the unit to rain or moisture. Do not
install this product near wate r.
Do not place any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with ne ventilation to avoid damage caused by
overheating.
Keep the module away from liquids.
Spillage into the housing may result in re, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
Do not twist/pull by force the ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
cord to the device before cleaning.
Unplug the power cord when left unused for a long period.
Information on disposal for scrapped devices: Do not burn or mix with general
household waste; please treat the devices as normal electrical waste.
2
HDMI Extender over Ethernet
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating, or adjusting
this product. Please keep this manual for future reference.
NOTICE
Our company reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
KanexPro EXT-AVIP120M KanexPro EXT-AVIP120M
Table of Contents
1. Introduction .................................................................................................................. 5
1.1 Introduction to EXT-AVIP120MRX .................................................................... 5
1.2 Features ............................................................................................................ 5
1.3 Package List 5......................................................................................................
2. Panel Description ..................................................................................................... 6-7
3. System Connection ..................................................................................................... 8
3.1 Usage Precautions ............................................................................................ 8
3.2 System Diagram 8-........................................................................................... 10
3.3 Connection Procedure ............................................................................... 11-12
4. Specications .............................................................................................................13
5. Troubleshooting & Maintenance ................................................................................ 14
6. After-sales Service .....................................................................................................15
7. Warranty .................................................................................................................... 16
4
1. Introduction
1.1 Introduction to EXT-AVIP120M RX
The KanexPro NetworkAV 120M Receiver is a simple and cost-eective decoder
(receiver) which lets you extend full HD 1080p/60 HDMI signals from the encoder
remotely over IP up to 120 meters. The IP Decoder can be used as end to join
multitude of displays when connected on the IP network. This HDCP compliant
decoder can also be cascaded or daisy-chained to many layers by adding a 10G
Ethernet switches supporting TCP/IP protocols
1.2 Features
• AV over IP Decoder only
• Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
• Supports Point- -Point, Point- -Many and Many- -Many network to to to
congurations
• HDCP compliant
• Can be cascaded for many layers by adding 10G more Ethernet switches
• With wideband IR (38-56kHz) control to the source
• Support TCP/IP protocol
• Metal enclosure built with mounting ears
• 5 V DC power supplies included
1.3 Package List
• Receiver
• Power adapter DC 5V/1A
• -RX cable IR
• Operating Instructions
Notes:
:
:
:: If there are defective parts parts are missing, please contact your local or
dealer(s).
