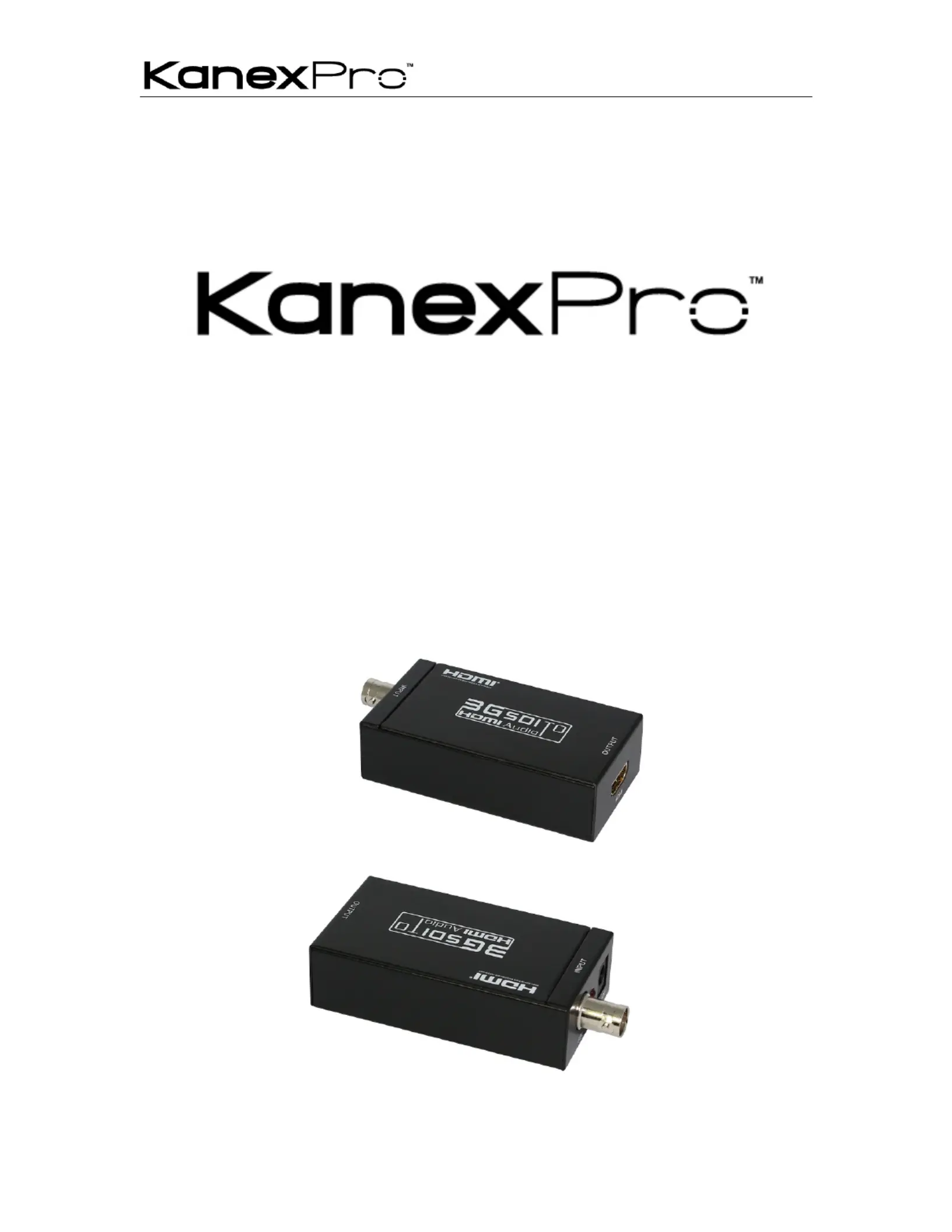

! ! !EXT-SDHDX
!
!
!
!
!
!
!
EXT SDHDX-
Mini SDI to HDMI Converter
! ! !EXT-SDHDX
!
!
!
!
!
!
!
!
!
!
!
Table of Contents
!
1. Introduction .................................................................................................................................. 1
1.1. Introduction to EXT SDHDX- ........................................................................................ 1
1.2. Features ...................................................................................................................... 1
1.3. Package Contents ....................................................................................................... 2
1.4. Specifications .............................................................................................................. 2
1.5. Operation controls and functions ................................................................................. 3
1.6. Application Example .................................................................................................... 3
2. Warranty ...................................................................................................................................... 4
!
!
!
!
!
!
!
!
! ! !EXT-SDHDX
!
!
1!
!
1. Introduction
1.1. -Introduction to EXT SDHDX
The KanexPro Mini SDI to HDMI converter is an inexpensive version for our SDI customers
looking to simply convert SDI signals to HDMI. It supports SDI, 3G- -SDI & HD SDI to an HD
display or any monitor equipped with an HDMI jack. It supports signal re-clocking and
equalization for longer SDI runs ideal for broadcasting and house of worship centers.
Perfect for broadcast monitoring to HDMI displays. It will save you a ton of money compared
to buying special monitors with the capability to purchase an even more specialized,
proprietary SDI cards.
Note: This only converts from SDI to HDMI and does not support 4K at this time.
1.2. Features
! Get the highest quality 3G-SDI conversion to HDMI
! - - Integrated Audio de embedder for 8 channel / 48KHz audio
! Supports multiple video resolutions: SDI 525i, 625i
! HD: 720p 24, 25,30,50 & 60 Hz.
! HD: 1080i 50 & 60 Hz.
! HD: 1080p 24, 25,30, 50 & 60 Hz.
! Data rates up to 2.97 Gbps
! Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10- bit
! SDI Input Cable Length Support - up to 300m
! HD mode length up to: 130m
! One way SDI output with re- clock function
! Supports cascading of multiple SDI's in application
! Automatically switches between SD, HD and 3 Gb/s SDI standards
! Compact in size, perfect for mobile broadcasting units and users
! Small rack mount ears included
Note: RG59 cable is required for SDI transmission; we recommend a 75-ohm high quality
coaxial cable.
!
