Standard room temperature controller with display

Art. No.: TR D .. 231 ..

Safety instructions

The unit may only be opened by an electrician

and installed according to the circuit

diagram on the unit or in these instructions.

Observe existing safety instructions.

To satisfy the requirements of protection class II,

corresponding installation measures are required.

This independently-mountable electronic device

is exclusively for controlling the temperature in

dry, enclosed rooms with normal surroundings.

This device conforms with EN 60730 and

functions according to operating mode 1C.

Damage to the device, re or other hazards may

arise if these instructions are not followed.

These instructions are a component part of the

product and must remain with the end customer.

Structure of the device

(2)

(3)

(1)

(4)

(5)

(6)

(7)

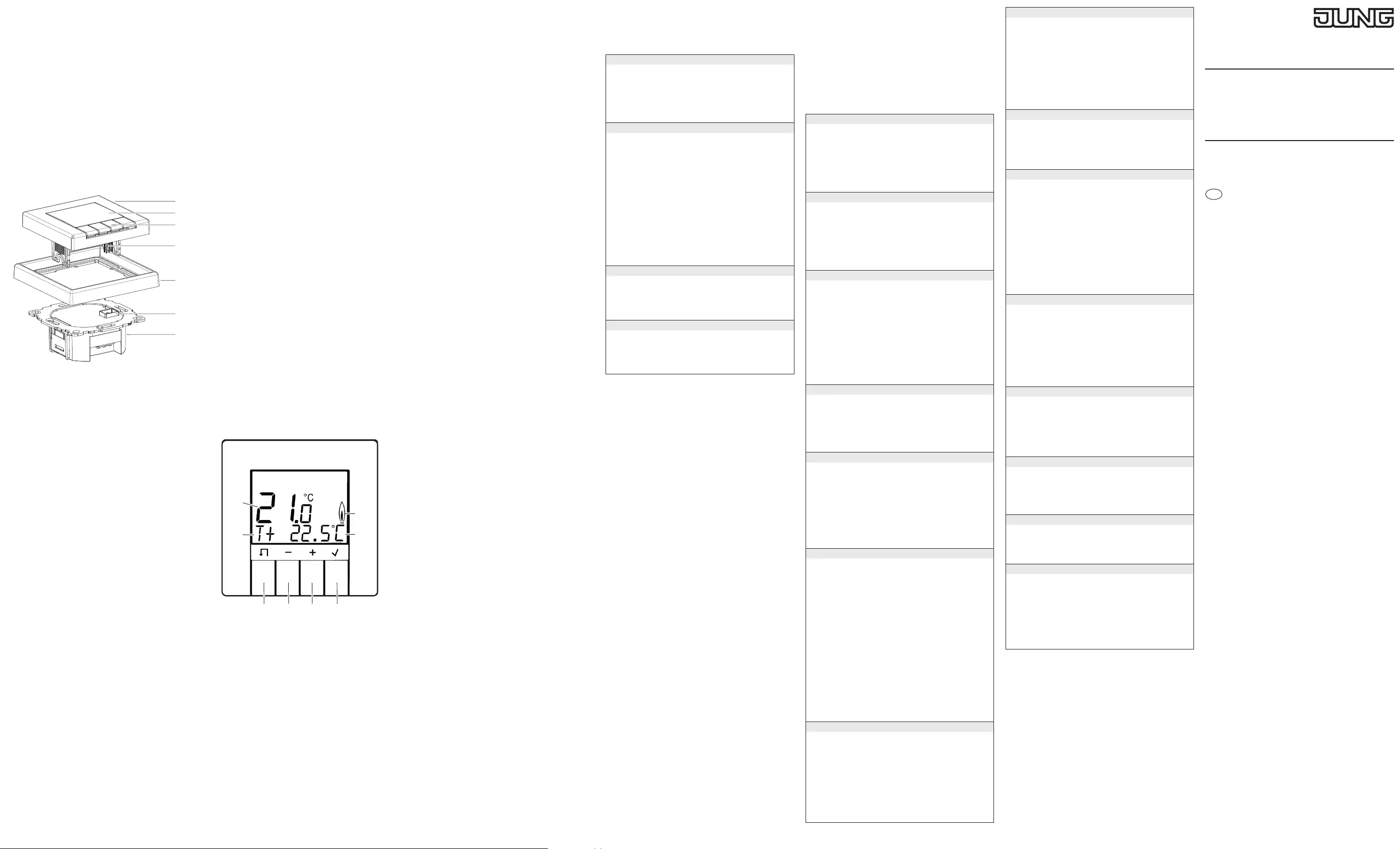

Fig. 1: Layout of the temperature controller

(1) Controls

(2) Display

(3) Control buttons

(4) Plug-in contacts

(5) Design frame (not including delivery)

(6) Socket for the plug-in contacts

(7) Use

Function

Correct use

– Measuring and controlling the room temperature

– Measuring and controlling the oor temperature

– Room temperature control via oor heating with

a limiting function (for example in conjunction

with tiled stoves)

– Can be used for "heating only" or "cooling only"

– Installable in a box in conformance with

DIN 49073

– Only for use in dry, enclosed rooms

Product characteristics

– Large display with backlighting

– Text display for self-explanatory operation

– Di󰀨erent user languages can be selected

– Internal temperature sensor

– An external remote sensor can be connected

– ECO input [clock] for the activation of a freely-

settable temperature, e.g. for night reduction

– Time limit for the manually-selected temperature

– Simply switch between 2 temperatures (comfort,

reduction)

– Short-time timer ("party function")

– Frost protection function

– Display of energy consumption for electric

heating systems

– Pulse width modulation (PWM) or two-point

control system

– Adjustable cycle time (PWM), hysteresis and

minimum on/o󰀨 time (two-point)

– Switch on delay, such as for burners (with two-

point control)

– Adaptation to valves normally open or closed

– Valve protection (as a room temperature

controller with and without a limiting function)

– Resetting separate from user and installer

settings

Description of functions

The temperature controller controls the room

or oor temperature according to the set target

temperature and is equipped with an internal sensor

for measuring the room temperature. In addition,

an external remote sensor can be connected,

for example to measure the oor temperature.

The temperature controller compares the measured

temperature with set values. If the temperature falls

below the current setting, the heating system is

turned on.

Two temperature values, T+ and T-, can be preset

(comfort and reduction temperature), between which

it is possible to switch at the touch of a button.

Optionally, an external switch (e.g. a timer) can

be used to control the temperature automatically

to another preset ECO value.

The depends on the type of heating control method

and is determined by the installer:

–Room temperature controller: The heating

is turned on when the room temperature

falls below the set target temperature

(measured with an internal sensor or external

remote sensor).

–Floor temperature controller: The underoor

heating is turned on when the oor temperature

falls below the set target temperature

(measured using an external remote sensor).

–Room temperature controller with a limiter:

(in conjunction with underoor heating):

The room temperature is measured

and regulated using the internal sensor.

An additional external remote sensor is

connected to measure the oor temperature,

and a target temperature range for the oor

is set. The room temperature control is

deactivated when the oor temperature is

outside of this range. If temperature falls below

this range, the heater is turned on, and if the

temperature is above this range, the heater

is turned o󰀨 independent of the current room

temperature.

Operation

(9)

(11)

(12)

(13)(14)(15)

(16)

(8)

(9)

(11)

(12)

(13)(14)(15)(16)

(8)

Fig. 2: Default display

(8) Function display (such as the mode)

(9) Large display (such as the current temperature)

(10) –

(11) Heating mode display

(12) Display (e.g. target temperature)

(13)  button (OK, switchover T+/T−/ECO)

(14)  button

(15)  button

(16)  button (menu)

Basic information

Four buttons below the display are used to operate

the temperature controller (Fig. 2, items (13) to (16)).

In the menu, you can activate operating modes

and make settings. If a button is not pressed for

more than three minutes, the unit automatically

switches back to the previous function and the basic

display (Fig. 2).

Operation when the controls are removed

The unit can also be operated when the controls are

removed. The current temperature is not displayed,

the "heating mode" display ashes, and the display

is not illuminated. If a button is not pressed for more

than three minutes, the display goes dark.

Display information on the current mode

 To go to the default display when the controls

are removed and the display is dark, press any

button.

■Press  in the default display.

Information on the current mode/setting is

displayed.

■Return to the default display by pressing

.

Selecting modes and setting menus

■Press  in the default display.

MENU briey appears in the function display (8).

A help text as a marquee appears at the bottom

edge of the display.

■Use the  /

 buttons to switch to the desired

mode/setting.

■Select the desired mode/setting by pressing

.

Another menu opens depending on the

mode/setting.

■Go back to the last display/setting by

pressing .

■Return to the default display by pressing



several times.

Manually adapting the target temperature

You can always adapt the target temperature in

modes CONTROL and TIMER.

■In the default display, press

or.

The current target temperature ashes.

■Set the desired temperature by pressing

 /

.

■Accept the displayed temperature by pressing



The device returns to the default display.

Turning o󰀨 the control

■In the default display, press the

 button for

10 seconds.

First "MENU" appears in the display.

After 10 seconds, the device switches to the

default display and "OFF" appears.

■Turn the controls back on by selecting a mode.

Main menu

Modes and setting menus (overview 1)

To follow is an overview of the modes and setting

menus within the main menu.

CONTROL

Control of the temperature to the value set here:

T+ = Comfort temperature

T− = Reduction temperature

ECO = When the ECO function is active, the preset

temperature or that set here.

T* = Temperature changed with  /



TIMER

Short-time timer to specify the room temperature

for a set number of hours ("Party function").

■Press  /

 to set the hours and conrm

with .

■Press

 /

 to set the temperature and

conrm with .

The display (12) shows the number of

remaining hours.

On exiting, that mode is continued which was

active before TIMER. TIMER continues when

ECO is activated and ECO is delayed accordingly.

Manual exiting of TIMER by selecting the

CONTROL mode.

USER SETTINGS

Open the menu for the user settings.

The display (9) shows the menu ID G1.

■To select the desired submenu, see "User

settings".

INSTALLER SETTINGS

Open the setting menu for the installer.

The display (8) shows the menu ID H1.

■To select the desired submenu, see "Installer

settings".

Overview 1: Modes and setting menus

Select the desired mode/setting menu

The device is in the default display.

■Press the button.

The help text "MENU..." appears at the bottom

edge of the display.

■Press the buttons  /

 until the desired menu

item (mode or setting menu) appears.

■ Conrm with .

The function is activated in modes CONTROL

and TIMER.

With the other menu items, the device jumps to

additional settings (see overview 1).

User settings

Overview 2

A marquee at the bottom of the display shows

information for an individual menu items identied

with G1 to G16.

 The menu item G3 is not available and,

depending on the set control procedure,

the menu items G11 and G12 are not available.

(The menu displays and set all values are in

UPPERCASE, and the settings are

bold

)

G1 T+ TEMP

Presetting of the comfort temperature:

– For H1 = ROOM or LIMITER:

OFF, 5.0 °C, 5.5 °C …

21.0 °C

… 30.0 °C

– For H1 = FLOOR:

OFF, 10.0 °C, 10.5 °C …

28.0 °C

… 40.0 °C

Press  /

 to set the temperature and conrm

with .

G2 T− TEMP

Presetting of the reduction temperature:

– For H1 = ROOM or LIMITER:

OFF, 5.0 °C, 5.5 °C …

18.0 °C

… 30.0 °C

– For H1 = FLOOR:

OFF, 10.0 °C, 10.5 °C …

18.0 °C

… 40.0 °C

Press  /

 to set the temperature and conrm

with .

G4 OFF HEATING PERMANENT

Turn o󰀨 the temperature control:

– YES = Control o󰀨

–

= Control on

Select YES/NO with  /

, conrm with .

If OFF HEATING PERMANENT = YES is selected,

the frost protection is active, provided that it has

been set by the installer, see also Installer settings

H6 - FROST PROTECTION ≠ OFF.

Display function (8): OFF

Turn on the control again: Select a function using

the menu, or hold  for 10 s.

G5 T* MAX LENGTH

The maximum validity period for T* can be set,

e.g. setting to 3 hrs: After 3 hrs, the previously

selected temperature (T+, T−, ECO) is used.

–

OFF

, 1 hrs, 2 hrs … 23 hrs

Select the number of hours with

 /

,

conrm with .

G6 KEY LOCK

Protect the controller against unauthorized use.

Use is not possible when access protection is

enabled.

– access protection onYES =

–

= no access protection

Select YES/NO with  /

, conrm with .

Remove access protection: Press any button,

and when CODE is displayed, set 93 with

 /



and conrm with .

G7 TEMP LIMIT MIN/MAX TEMP

Set the lower and upper temperature to be

controlled:

– LOWER TEMP LIMIT:

For room temperature controller

(H1 = ROOM or LIMITER):

5.0 °C

, 5.5 °C … 30.0 °C

For oor thermostat (H1 = FLOOR):

10.0 °C

, 10.5 °C … 40.0 °C

– UPPER TEMP LIMIT:

For room temperature controller

(H1 = ROOM or LIMITER):

5.0 °C, 5.5 °C …

30.0 °C

For oor thermostat (H1 = FLOOR):

10.0 °C, 10.5 °C …

40.0 °C

Set the temperatures with

 /

 and conrm with .

In CONTROL mode, the temperature range is

limited to the values set here.

G8 COSTS/HR OF ENERGY

Enter the estimated energy costs per hour for the

room in which the temperature is being controlled:

1, 2, ...

100

... 999 CENT/HR

 If the energy cost meter is to serve

as an operating hour meter, set the value

COST/HR to 100.

Set COST/HR with  /

, conrm with .

The determined consumption is displayed

under G9.

G9 ENERGY CONSUMPTION TO DATE

Display of the approximate energy consumption

in euros (or operating hours) per time period.

The current day is included up to the displayed time.

Calculation: Time heat turned on x COST/HR (G8).

EURO/2DAYS, EURO/WEEK, EURO/30DAYS,

EURO/YEAR.

Select the period for calculating the energy

consumption, display it with

 /

, go back to the

menu with .

Reset using INSTALLER SETTINGS (H9)

G10 DISPLAY TARGET TEMP

Setting for the target temperature to be shown in

the display instead of the current room temperature:

– Target temperatureYES =

–

= Room temperature

Select YES/NO with  /

, conrm with .

G11 ADJUST TEMP

 This menu item is not available when used as

a oor temperature controller.

Specify a correction value to be displayed and

regulated:

-5.0 °C, -4.9 °C …

0.0 °C

... 4.9 °C, 5.0 °C

 Useful adaptations are for example matching

calibrated thermometers, or adapting to

installation heights or locations that are

problematic.

Adjust the correction value with

 /

 and conrm

with .

G12 NUMBER FOR FLOOR TEMP

 This menu item is not available when used

as a room temperature controller with/without

a limiting function.

Activate the oor temperature display for

information (without the unit °C).

– YES = display the oor temperature

–

= display the room temperature

Select YES/NO with  /

, conrm with .

G13 BACKLIGHT

Set the display lighting:

–

SHORT

= short time after pressing the button

– OFF = always o󰀨

– PERMANENT (only when using a remote sensor)

Select SHORT/OFF or PERMANENT with  /

,

conrm with .

G14 LANGUAGE

Select the language for the texts shown in the

display: GERMAN, ENGLISH, DUTCH, FRENCH,

RUSSIAN, SPANISH, ITALIAN, POLISH, TURKISH

Select the LANGUAGE with  /

, conrm

with .

G15 INFO

Display controller type and controller version:

TR D ...

Display the controller version with

 / , go back

to menu with  or .

G16 RESET USER SETTINGS ONLY

Reset the user settings to the defaults.

 The counter ENERGY CONSUMTION TO

DATE is not reset. This is reset by the installer

in the menu H9.

– resetYES =

–

Select YES/NO with  /

, conrm with .

Overview 2: User settings

ALBRECHT JUNG GMBH & CO. KG

Volmestrasse 1

58579 Schalksmühle, Germany

Telephone: +49 (0)2355 8060

Fax: +49 (0)2355 806204

kundencenter@jung.de

www.jung.de

Service Centre

Kupferstr. 17-19

44532 Lünen

Germany

Temperature management

Operating and installation instructions

09/2018

0024073402

Open the settings menu and make settings

The display shows the menu code G1 in the display

(9) and, beneath that, the marquee T+ SET.

■Press  /

 to select the desired menu.

The menu ID and a help text appear at the

bottom edge of the display (8) and (12).

■ Conrm with .

The rst settable value ashes in the display.

■Set the desired value by pressing

 /

.

■ Conrm with .

The next settable value ashes in the display.

Once all the values are set, the display returns

to the higher level and displays the menu ID.

Start-up

 CAUTION!

The heating system will malfunction

if the controls are incorrectly set.

This can damage the heating system.

Only a technician may adjust the settings

of the heating system.

Set the heating mode when starting the controller.

■Press  in the default display.

MENU briey appears in the function display (8).

A help text as a marquee appears at the bottom

edge of the display.

■Press the  /

 buttons until INSTALLER

SETTINGS appears.

■ Select INSTALLER SETTINGS with

.

CODE is displayed, and code number 0 ashes.

■ Select code 7 with  /

, conrm with .

H1 and the marquee text HEATING TYPE are

displayed.

■Press .

ROOM

is the default. When switching the heating

mode, all the user and installer settings are reset to

the default.

■Press  /

 to set the desired heating mode

and conrm with .

The heating mode is set.

Additional settings are available under "Installer

settings".

Installer settings

Overview 3

A marquee at the bottom of the display shows

information for an individual menu items identied

with H1 to H11.

 Some menu items are not available under the

control modes set under H1.

The abbreviations for the relevant control mode for

each menu item are indicated in the table.

The abbreviations have the following meaning:

R = Room temperature controller

F = Floor temperature controller

L = Room temperature controller with a limiting

function

(The menu displays and set all values are in

UPPERCASE, and the )presettings are bold

H1 HEATING TYPE R F L

Selection of the control method depending on the

heating mode:

–

ROOM

= Room temperature controller with

the setting of whether or not a remote sensor is

connected:

EXTERNAL SENSOR = YES/

– FLOOR = Floor temperature controller

– LIMITER = Room temperature controller with

limiter

Select with  /

, conrm with .

H2 CONTROL MODE R F L

Select the control mode:

–

PWM

= Pulse width modulation with the cycle

time set in minutes:

, 15 ... 30.

 For fast heating systems, select a short cycle

time, for slow heating systems, select a long

cycle time. The minimum on/o time is 10% of

the cycle time.

– ON/OFF = Two-point control with setting option

of the hysteresis (

OFF

, 0.1 °C, 0.2 °C … 5.0 °C)

and the minimum switch-on/switch-o󰀨 time of the

relay in minutes (1, 2 …

... 30).

 If the hysteresis is not set, the relay switches

with the minimum on/o time even when the

temperature dierences are very small.

Select with  /

, conrm with .

H3 MIN/MAX FLOOR TEMP L

Setting the upper and lower limit for the oor

temperature:

– LOWER LIMIT FLOOR TEMP: The oor should

not be colder than the temperature set here

(

OFF

, 10.0 °C, 10.5 °C … 35.0 °C).

– UPPER LIMIT FLOOR TEMP: The oor should

not be warmer than the temperature set here

(OFF, 10.0 °C, 10.5 °C …

35.0

°C

... 40.0 °C,

OFF).

Set the temperatures with  /

 and conrm with

.

 To deactivate the upper or lower limit, set the

lower temperature limit < 10°C, or the upper

temperature limit > 40°C with  /

 . OFF is

displayed.

H4 HEATING OR COOLING R

Switching the controller between heating and

cooling mode:

–

HEATING

– COOLING

 Precondition for switching to cooling mode:

H2 - CONTROL = ON/OFF

 H4 = Heating: If there is an error, heating takes

place for 30 % of the time.

H4 = Cooling: If there is an error, the relay

is o.

 When switching to cooling mode, H6 - FROST

PROTECTION is automatically set to OFF,

and H7 - OPTIMUM START is set to NO.

 The switching times and temperatures of

heating mode are used.

Select with  /

, conrm with .

H5 VALVE PROTECTION R L

Protection of the valve from seizing after

long periods with no control. Every 24 hours,

calculated from the last switch-on of the voltage of

RESET (H11), the valve is opened for the time set

here in minutes: OFF, 1, 2,

… 10.

Set the opening time with

 /

 and conrm with .

H6 FROST PROTECTION R F L

Setting the frost protection temperature:

– For H1 = ROOM or LIMITER:

OFF,

5.0 °C

, 5.5 °C … 30.0 °C

– For H1 = FLOOR:

OFF,

10.0 °C

, 10.5 °C … 40.0 °C

Press  /

 to set the temperature and conrm

with .

If the temperature falls below the set frost protection

temperature, heating is turned on.

 To deactivate the frost protection with a button

select the OFF setting under the lowest

temperature.

 Frost protection mode is only possible when

the control is shut o; see user settings:

G4 - OFF HEATING PERMANENT = YES

H7 ECO SETTING R F L

Presetting of the ECO temperature:

– For H1 = ROOM or LIMITER:

OFF, 5.0 °C, 5.5 °C …

18.0 °C

… 30.0 °C

– For H1 = FLOOR:

OFF, 10.0 °C, 10.5 °C …

18.0 °C

… 40.0 °C

Press  /

 to set the temperature and conrm

with .

 The temperature set here is only used when

the ECO input is activated (see ...).

H8 VALVES NORMALLY OPEN R L

Reverse of the relay switching behaviour for using

actuators that are normally open:

– activatedYES =

–

= deactivated

Select YES/NO with  /

, conrm with .

H9 ENERGY COUNTER RESET R F L

Reset to zero the energy cost meter set under

G8/G9 (see user settings).

– resetYES =

–

Select YES/NO with  /

, conrm with .

H10 FLOOR TEMPERATURE DISPLAY L

Display of the current oor temperature for service

purposes.

H11 RESET ALL R F L

Reset to the defaults all of the settings made in the

menus for the installer and user.

– resetYES =

–

Select YES/NO with  /

, conrm with .

 For safety reasons settings among H1 and the

selected language will not be changed with a

RESET. .

Overview 3: Installer settings

Open the settings menu and make settings

The display shows the menu code H1 in the display

(8) and, beneath that, the marquee HEATING TYPE.

■Press  /  to select the desired menu.

The menu ID and a help text appear at the

bottom edge of the display (7) and (11).

■ Conrm with

.

The rst settable value ashes in the display.

■Set the desired value by pressing

 /

.

■ Conrm with

.

The second settable value ashes.

■Repeat the aforementioned steps until all the

values are set.

The display returns to higher-level and displays

the menu ID.

Appendix

Do not dispose of this product in household

waste. Dispose of the device in a facility

designated for electronics waste.

Consult the local recycling authorities.

This symbol conrms that the product is in

conformance with the relevant guidelines.

Technical data

Operating voltage: AC 230 V ~

Rated frequency: 50 Hz

Output: N/O contact relay, non-oating

Switching current: 10 mA ... 10 (4) A, 230 V~

Power consumption: ~ 1.2 W

Degree of protection: IP 30

Protection class: II (with corresponding installation)

Pollution category: 2

Ambient temperature:

- Operation: 0°C to 40 °C (without thawing)

- Storage: -20°C to 70°C (without thawing)

Temperature setting range (in increments of 0.5 °C):

- As a room temperature controller: 5°C ... 30 °C

- as a oor temperature controller: 10°C ... 40 °C

Temperature display: In increments of 0.1°C

Output signal: Pulse width modulation (PWM)

or two-point control ( on/o󰀨)

PWM cycle time: Adjustable (10 ... 30 min)

Hysteresis: Adjustable (with two-point control)

Minimum switching time: Adjustable (1 ... 30 min)

Rated impulse voltage: 4 kV

Temperature for the ball thrust test: 75 ± 2°C

Voltage and current for the EMC

emitted interference test: 230 V, 0.1 A

Software class: A

Accuracy: < 4 min/year

Reserve power: ~ 10 years (lithium cell)

Help in case of problems

Overviews 4 and 5 describe a few error messages

and problems as well as probable causes and

solutions.

Error message/problem

Possible cause

– Suggestions for troubleshooting

Display of device errors

Errors in the hardware conguration can be shown

on the display. In this case, ERR and an error type

are displayed as marquee text.

ERR CONFIGURATION

The controls and insert do not match.

– Only use matching components.

– Turn the power o󰀨 and on.

ERR COMMUNICATION

Communication problem between the controls and

insert.

– Remove the controls and put them back on.

– Turn the power o󰀨 and on.

ERR EXT SENSOR

External remote sensor broken/shorted/missing.

– Check whether the remote sensor is connected.

The limits of the display range are exceeded.

– Determine the cause and eliminate it.

Overview 4: Display of device faults

Produktspezifikationen

Marke:	JUNG
Kategorie:	Thermostat
Modell:	TRDLS-DISPWW

Brauchst du Hilfe?

Wenn Sie Hilfe mit JUNG TRDLS-DISPWW benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Thermostat JUNG

JUNG TRDCD231 Bedienungsanleitung

2 Oktober 2024

JUNG TRUDAL231 Bedienungsanleitung

30 September 2024

JUNG TRDLS-DISPWW Bedienungsanleitung

28 August 2024

JUNG TRDA523048WW Bedienungsanleitung

28 August 2024

JUNG TRA236 Bedienungsanleitung

25 August 2024

JUNG TR D 231 Bedienungsanleitung

24 August 2024

JUNG FTRME231 Bedienungsanleitung

17 August 2024

JUNG FTRES231 Bedienungsanleitung

10 August 2024

JUNG TR241 Bedienungsanleitung

10 August 2024

JUNG CD2177 KNX Bedienungsanleitung

8 August 2024

Bedienungsanleitung Thermostat

Neueste Bedienungsanleitung für -Kategorien-

Siemens RDG100T Bedienungsanleitung

16 Oktober 2024

Siemens N2264 Bedienungsanleitung

7 Oktober 2024

Honeywell Round on-off T87G1006 Bedienungsanleitung

5 Oktober 2024

Theben RAM 811 Top - 811 9 901 Bedienungsanleitung

5 Oktober 2024

Siemens DESIGO RXA Bedienungsanleitung

5 Oktober 2024

Drayton RTS10 Bedienungsanleitung

5 Oktober 2024

Honeywell Day Night Round T8700A Bedienungsanleitung

4 Oktober 2024

Busch-Jaeger 1097 U Bedienungsanleitung

3 Oktober 2024

Eberle RTR-E 3545 Bedienungsanleitung

2 Oktober 2024

Eberle RTR 9164 Bedienungsanleitung

2 Oktober 2024
