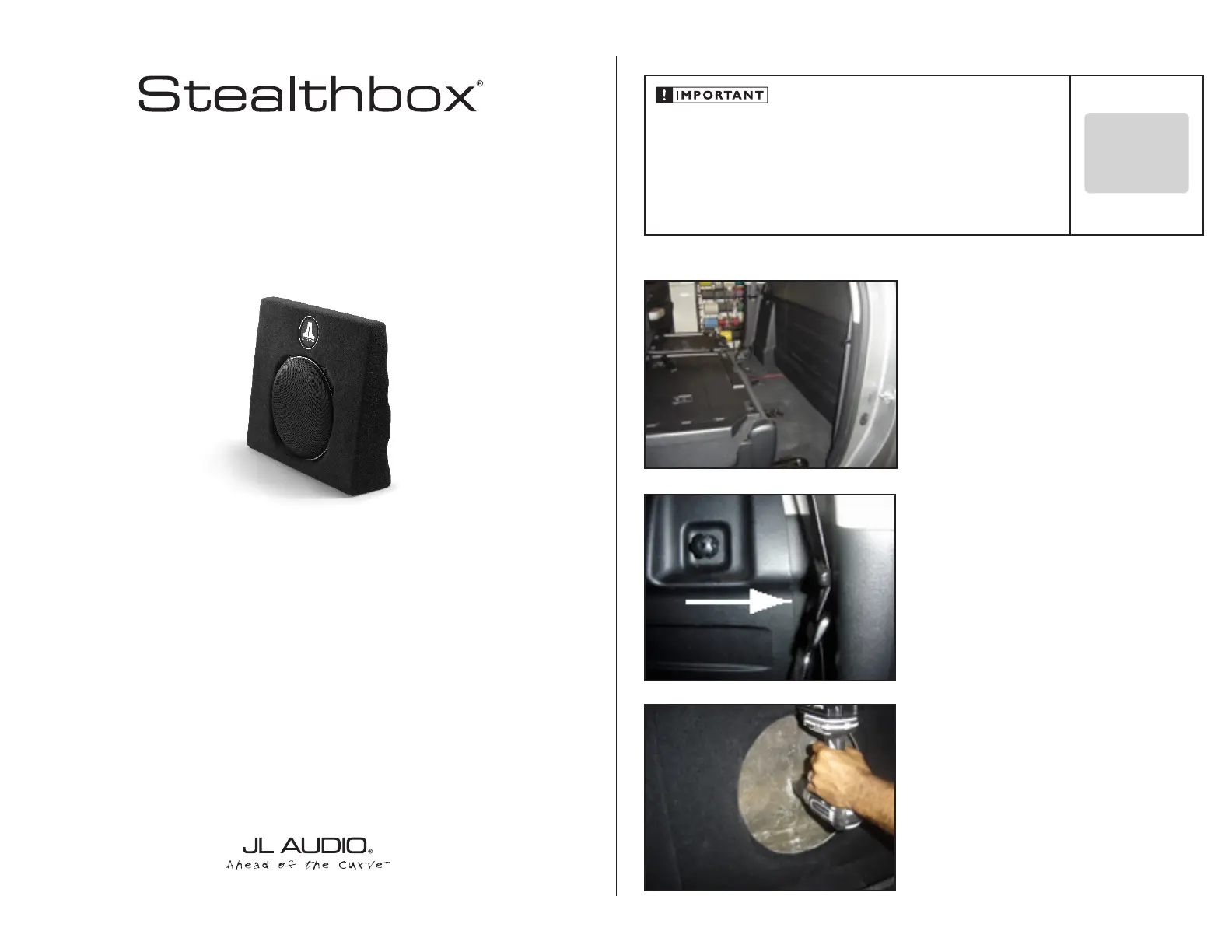

I N S T A L L A T I O N G U I D E
for the
SB-T-TUNDCMAX/13TW5v2
SKU#94410
2007 - 2013 Toyota Tundra CrewMax
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-specific
enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals
employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. Also, keep in mind
that your warranty coverage extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you prefer to
perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove anything stored behind the rear seats and fold both
seats forward. If the truck is equipped with the OEM
Subwoofer, it must be removed and the rear panel will
need to be cut or, replaced with the panel from Toyota for
a truck not equipped with a OEM subwoofer. Call Technical
support (954) 443-1100 for further details if needed.
Test Stealthbox® for proper operation.
Using a Phillips head screwdriver remove the woofer from
the enclosure. The grille does not need to be removed
from the woofer! The grilles were removed in later pictures
for this document but they do not need to be for this
installation.
Continued on Next Page
S T E P 2
Along the outside of the plastic panel that covers the back
of the cab on the drivers side, locate the seam between
the back and, side panels. Line up the first (or only)
enclosure with this seam.
If installing two enclosures, verify that there is adequate
room between the first enclosure and the elevated part
of the rear panel on the passengers side (as seen in the
photo for to fit the second enclosure.step (1))
SB-T-TUNDCMAX/13TW5v2 INSTR_SKU# 011266
INSTALLATION
D I F F I C U L T Y :
35
OUT
OF
ESTIMATED TIME:
23 HOURS
This manual applies to both single and dual Stealthbo installations.
S T E P 3
Using a 1/8" drill, use the hole in the enclosure centered
behind the woofer as a guide, to drill a hole through the
plastic (and only the plastic) that covers the back of the
cab.
*CAUTION*
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
transmission lines, electrical wiring, exhaust systems
or anything else that might cause a reduction in
your weekly pay. Always wear eye protection when
drilling.
Continued on Next Page
SB-T-TDCMAX/13TW5v2 INSTR_SKU# 011266
S T E P 5
Remove the enclosure and ensure that the rear window
of the truck is in the UP position. Using the hole that was
drilled in as a guide, drill a 1/8" hole through the steps 3,4
metal panel that is behind the interior plastic panel (make
sure to drill a hole for each Stealthbox® installed). Use cau-
tion to drill only through the metal panel.
Repeat this step if installing second Stealthbox®.
***Please follow safe drilling procedures***
S T E P 4
If installing two Stealthbox® enclosures, center the second
enclosure between the first and the raised portion of the rear
panel. Repeat Step 3 for the second enclosure.
***Please follow safe drilling procedures***
After the guide hole is drilled, enlarge the hole in
the Stealthbox® to 3/8", this hole will eventually mount
the enclosure.
Page 2 • JL Audio, Inc 2016
S T E P 7
Enlarge the 1/8" holes previously drilled step 3 and 4
in the plastic trim to 3/8".
S T E P 6 ( D E T A I L )
Remove the interior rear plastic trim panel. This panel is
held in with push-in plastic fasteners that will pull out
relatively easily when the panel itself is gently pulled
from around the edges.
S T E P 6 There are two anchors for cargo in the
upper corners of the rear plastic trim panel. These two
anchors need to be removed in order to remove the
trim panel. To remove these, pull on the outside of the
anchor top section it will pull out, allowing the anchor
itself to collapse and be pulled out.
S T E P 8
Unplug the power harness from the rear window motor.
S T E P 1 0
Now is an excellent opportunity to install some sound dead-
ening material to the inside of the back of the cab of the
truck. We also suggest covering the back of the metal panel
that was just removed in step 9 with a sound deadening
material.
S T E P 9
Remove metal rear cab panel (black panel) from the inside
of the truck by removing all interior bolts from perimeter.
Continued on Next Page
SB-T-TDCMAX/13TW5v2 INSTR_SKU# 011266
S T E P 1 1
Enlarge 1/8" hole drilled in through the metal panel step 5
to 3/8" as was done on the plastic panel. Repeat this step if
installing second Stealthbox®.
Page 3 • JL Audio, Inc 2016
S T E P 1 4
Reinstall rear interior metal panel, making sure the bolt(s) that
were installed in Step 13 are facing forward. Use caution so
that the cable that was unplugged in does not get Step 8
pinched between the removable panel and the back of the
cab. Plug the cable back in to where it was unplugged.
S T E P 1 3
Tighten this hardware down using either a deep-well socket
and a wrench (as shown) or two wrenches. You want to
make sure that this hardware won’t move, as this will be
how the Stealthbox® is secured to the truck.
S T E P 1 2
Install included hardware as shown in the picture at left and
the illustration below. Repeat this step if installing second
Stealthbox®.
S T E P 1 2 D E T A I L
S T E P 1 7
If installing two Stealthboxe, install the driver side
enclosure first. Align the enclosure so that the stud goes
through the previously enlarged guide hole Step 4.
Start the hardware on the stud using a large fender
washer close to the fiberglass, a split lock washer then
the nut (see . Be cautious not to overtighten the Step 18)
nut, it only needs to be snug.
S T E P 1 6
Re-install the two anchors that were removed in Step 6.
S T E P 1 5
Re-install the rear plastic trim panel. We found that lining up
the recently installed stud with the hole previously drilled in
the panel to the outside (drivers side) made alignment easier.
Ensure that all of the plastic plugs line up with their correct
receptacles and press them in place. Continue towards the
center of the truck. The rear panel can be installed in two
pieces which may make alignment easier. Make sure that the
second stud (for the second Stealthbox® if installed) and the
rest of the plugs line up.
