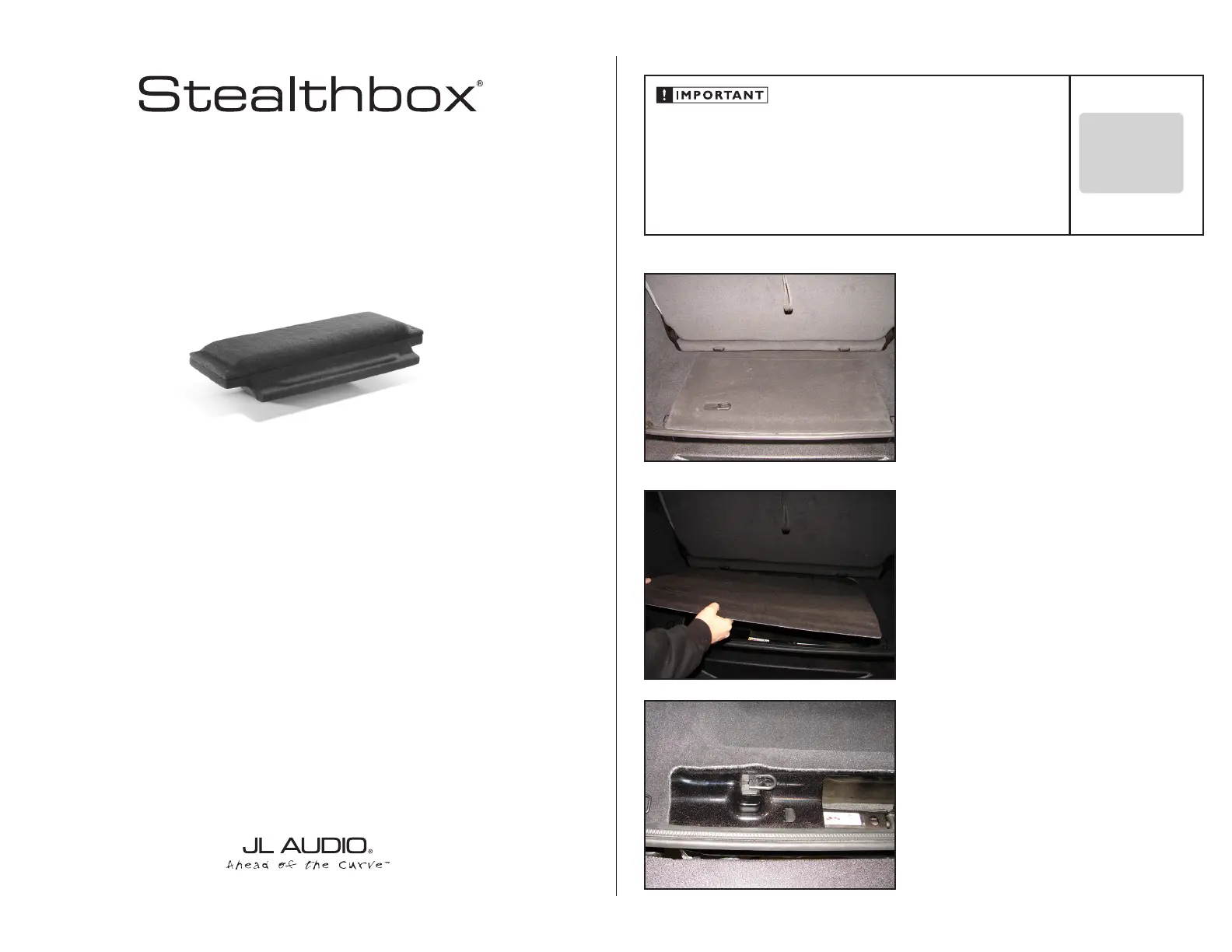

I N S T A L L A T I O N G U I D E
for the
SB-J-JK2DR/10W1v3
SKU# 94512 - 94513
2007 & Up Jeep Wrangler 2 Dr
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Empty out the cargo area so that you have a clean area to
work in.
Continued on Next Page
S T E P 2
Fold the rear seat forward, and remove the floor panel.
S T E P 3
Position the floor panel clip as pictured to allow it to fit in the
void in the bottom of the Stealthbox®.
SB-J-JK2DR/10W1v3 INSTR_SKU# 011322
IN STALLATION
D I F F I C U L T Y :
15
OUT
OF
ESTIMATED TIME:
1 HOUR
SB-J-JK2DR/10W1v3 INSTR_SKU# 011322
S T E P 7
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 6
Attach speaker wire to the terminal cup on the back of
the enclosure, and route the wire as necessary. Slide the
Stealthbox® into the vehicle, allowing the Brackets to slide
under the factory floor mounting points, and the enclosure
to drop into the well.
S T E P 5
Pictured is the Stealthbox® with the Brackets mounted.
S T E P 4
Apply a Velcro Strip to each Bracket as shown. Using a 1/4” -
20 x 1 Bolt, a 1/4” Lock Washer, and a 1/4” Flat Washer, attach
each Bracket to the Stealthbox® as shown, and firmly tighten.
Page 2 • JL Audio, Inc 2016
I N C L U D E D H A R D W A R E
(2) Bracket (2) 1/4” Lock Washer (2) Velcro Strip
(2) 1/4” Flat Washer (2) 1/4” - 20 x 1 Bolt
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W1v3-2
Nominal Impedance: 2 ohm
Continuous Power Handling: 300 watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends high quality amplifiers such as the JL Audio XD300/1v2. The diagram below shows the
recommended crossover settings for the XD300/1v2. If another amplifier is being used, please reference this
illustration and use similar settings on that amplifier.
All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.
C O N N E C T I O N S
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using an 8 AWG power kit such as the XD-PCS8-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Dash
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Sound Bar
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011322 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
