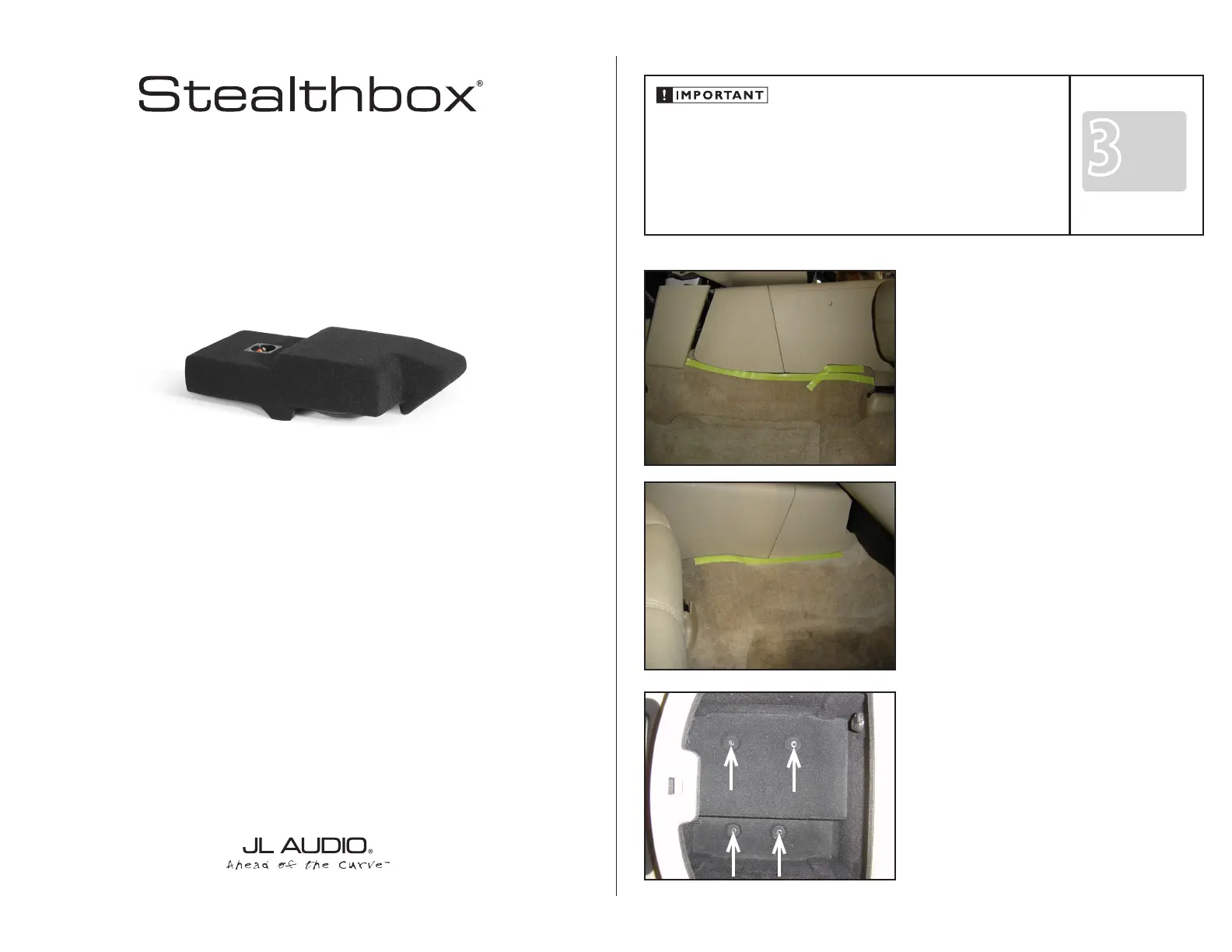

I N S T A L L A T I O N G U I D E
for the
SB-GM-TAHOCNSL/10W1v3
SKU# 94278
2007 - 2013 Chevrolet / GMC Full-Size SUV’s & Trucks
Suburban, Tahoe, Yukon/ XL, Yukon Denali/ XL Denali, Avalanche,
Silverado, & Sierra/Denali
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With
proper installation, your new vehicle-specific enclosed subwoofer system will deliver
years of listening pleasure.
We strongly recommend that you have your new Stealthbox ® installed by your
authorized JL Audio dealer. The installation professionals employed by your dealer have
the necessary tools and experience to disassemble and reassemble your vehicle properly.
Also, keep in mind that your warranty coverage extends to 1 year if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your
own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Using masking tape or similar, mark where the bottom
edge of the front center console meets the carpet on the
driver’s side.
Continued on Next Page
S T E P 2
Using masking tape or similar, mark where the bottom
edge of the front center console meets the carpet on the
passenger’s side.
S T E P 3
Open the storage lid of the center console. Remove the four
exposed screws.
SB-GM-TAHOSCNSL/10W1v3_INSTR_SKU#011220
IN STALLATI ON
D I F F I C U L T Y :
35
ESTIMATE D TIME:
23 HOURS
OUT
OF
Continued on Next Page
SB-GM-TAHOSCNSL/10W1v3_INSTR_SKU#011220
S T E P 7
*Read Step 7 & Step 8 before attempting the
removal of the rear face plate.*
Carefully pry up and back on the two black tabs on either
side of the console’s door hinge.
Extra care should be used in a effort to prevent
breaking these tabs.
S T E P 6
Pull the wiring harness off the tab.
S T E P 5
With the cup holders removed, look through the
opening and disconnect the exposed wiring harness plug.
S T E P 4
Remove the cup holders from center console by pulling
upwards.
Page 2 • JL Audio, Inc 2016
S T E P 9
Remove all plugs from the rear face plate.
S T E P 1 1
Remove the wiring harness that is secured to the driver’s side
of the center console.
S T E P 1 0
From the back side of the center console, fold down the cup
holders.
Remove two screws behind the cup holders as well as the
three screws securing the cup holder to the center console.
Remove the back panel from the center console.
S T E P 8
Pry the rear face to the rear of the vehicle.
Continued on Next Page
SB-GM-TAHOSCNSL/10W1v3_INSTR_SKU#011220
S T E P 1 5 A
With the center console out of the vehicle, cut off the tabs
that protrude down from the cup holder area.
S T E P 1 4
Remove the center console from the vehicle.
S T E P 1 3
Remove the pair of screws that are found on each side of the
center console.
If the seat(s) are powered, bring the seat(s) to their highest
height and all the back to access the front screws. Bring the
seats all the way forward to access the rear screws.
If the seat(s) are manual, bring the seat(s) all the way back
and access the screws from under the seats, as in the picture.
S T E P 1 2
Remove the wiring harness that is secured to the passenger
side of the center console.
Page 3 • JL Audio, Inc 2016
S T E P 1 6
Cut out a pair of 2-inch x 2-inch squares, out of the carpet.
Driver side to the center of the wax squares:
4-inches from the driver’s side tape line to the right.
7 1/4-inches from the rear of the hump (that runs the width
of the transmission hump) forward.
Passenger side to the center of the wax squares:
1 1/2-inches from the passenger’s tape line to the left.
7 1/4-inches from the rear of the hump (that runs the width
of the transmission hump) forward.
S T E P 1 8
Thread the supplied pair of socket cup set screws into the
bottom of the Stealthbox®, leaving 3/4-inches exposed.
S T E P 1 7
Place the supplied pair of wax squares onto the areas that
were cut out in STEP 16.
S T E P 1 5 B
The opening with the tabs cut off.
4-inches 1 1/2-inches
7
7
