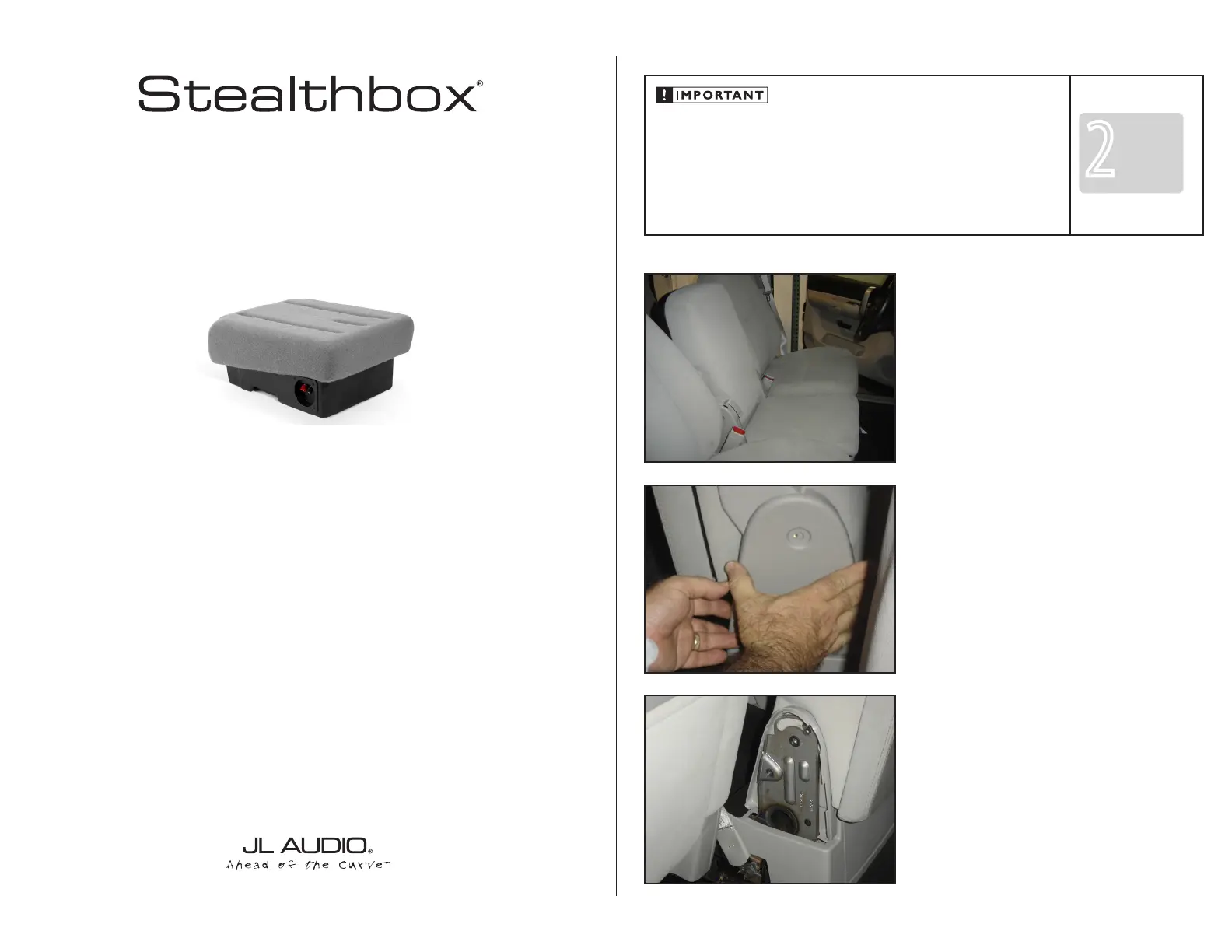

I N S T A L L A T I O N G U I D E
for the
SB-GM-SLVCTR2/10W3v3
SKU# 94350 - 94353
2007 - 2013 Silverado, Sierra, Avalanche, Suburban, Tahoe, Yukon & Yukon XL
with Front Row 40/20/40 Split Bench Seating
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove any contents from the front seat area.
Flip the center seat back / storage bin in the up position.
Continued on Next Page
S T E P 2
Move both front seats all the way forward.
From the passenger side of the vehicle, look to the side of
the center seat back / storage bin.
Remove the black plastic push clip.
Remove the plastic trim.
S T E P 3
From the driver’s side of the vehicle, look to the side of the
center seat back / storage bin.
Remove the bolt and plastic trim.
SB-GM-SLVCTR2/10W3v3_INSTR_SKU#011248
INSTALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
12 HOURS
Continued on Next Page
SB-GM-SLVCTR2/10W3v3_INSTR_SKU#011248
S T E P 7
Remove the plastic tray from vehicle.
S T E P 6
Grab a hold of the bottom cushion and pull forward.
Remove the bottom cushion from the vehicle.
S T E P 5
From the passenger’s side of the vehicle, look to the side of
the center seat back / storage bin.
Use an hex key to remove the black bolt that secures the
gray bracket to the center seat back / storage bin.
S T E P 4
From the driver’s side of the vehicle, look to the side of the
center seat back / storage bin.
Use an hex key to remove the black bolt that secures the
gray bracket to the center seat back / storage bin.
Page 2 • JL Audio, Inc 2016
S T E P 9
Remove the four front nuts that secure the seating to the
floor.
S T E P 1 1
Slide the rear of the Stealthbox® into the mounting area first,
then drop the front of the Stealthbox® into place.
S T E P 1 0
Run speaker wire from the amplifier location to the
Stealthbox® location.
S T E P 8
Remove the four rear bolts that secure the seating to the
floor.
SB-GM-SLVCTR2/10W3v3_INSTR_SKU#011248
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 4
Secure the bolts and nuts that were removed in
Steps 8 & 9.
Secure the plastic covers that were removed in Steps 2 & 3.
S T E P 1 3
We do not recommend the use of this center section to be
used as a seat. You can remove the seat belt latch as an extra
precaution.
S T E P 1 2
Place the supplied lock washer and then flat washer onto the
supplied bolt.
Tilt the seating back.
From under the center seat section, place the bolt assembly
through a factory hole and into the threaded insert of the
Stealthbox®. This hole can be viewed in STEP 7, circled.
Secure the bolt assembly to the Stealthbo, do not over
tighten.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice.JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011248 - 10.31.2018 • Printed in USA • ©2018 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y M I R A M A R , F L O R I D A 3 3 0 2 5 U S A
I N C L U D E D H A R D W A R E
(1) 3/8-inch -16 x 1-1/4-inch Hex Bolt
(1) 3/8-inch Lock Washer
(1) 3/8-inch Flat Washer
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W3v3-2
Nominal Impedance: 2 ohms
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox ®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6.5-inch / Front Doors
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 5.25-inch / Rear Door
Fits JL Audio Models: TR650-CSi, TR650-CXi, C2-650, C2-650x,
C3-650, C5-650, C5-650x & ZR650-CSi
