Stealthbox®
I N S T A L L A T I O N G U I D E
SB - GM - H U M R2/1 2 W 6 v 2 , J L AU D I O , In c 2 0 0 4 Sh e e t S K U # 0 1 1 1 8 2 Re v i s i o n 8 / 5 / 2 00 4 Pag e 1
for the
SB-GM-HUMRH2/12W6v2
(2003-Up Hummer H2)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.

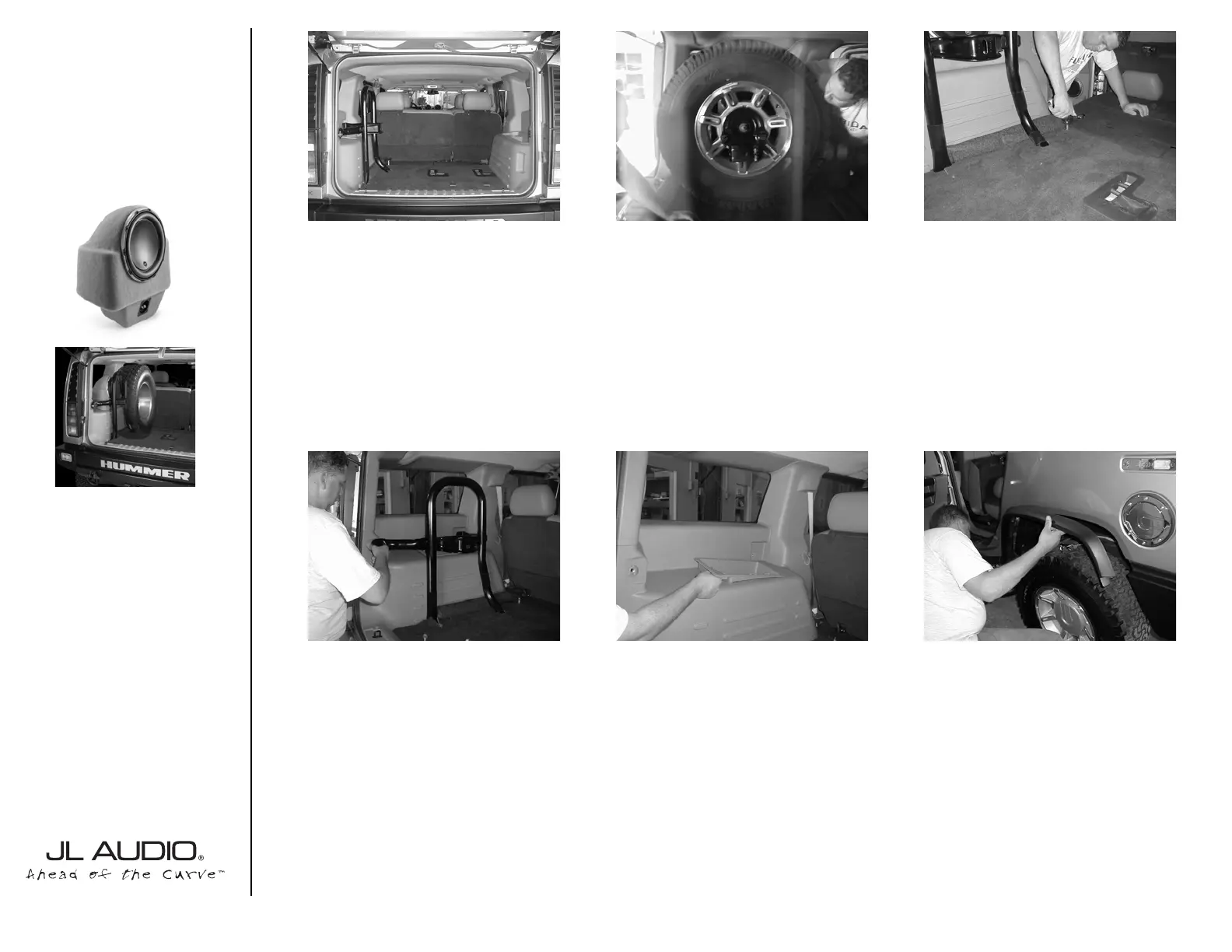

STEP 1:
Remove the third “jump” seat.
*STEPS 2-4 are for the vehicle that are
equip with the internal spare tire.*
STEP 2:
Remove the spare tire
STEP 3:
Remove the jack and jack tools.
STEP 4:
With an 8mm socket, remove the
four bolts that secure the spare tire rack.
STEP 5:
By pulling up, remove the driver’s
side rear storage bucket.
STEP 6:
With a 10mm socket, flat head
screw driver, Phillips® head screw driver and a
T-15 socket.
Remove the drivers side rear wheel well plas-
tic trim.
START
HERE
Continued on Next Page
w w w . j l a u d i o . c o m
➔ ➔
➔➔➔
STEP 7: With the plastic trim out of the way,
remove the plastic inner wheel well.
STEP 11: Thread the supplied pair of socket ca
set screws into the enclosure, leaving 1/2” exposed.
Place the enclosure into place and firmly press
down.
Cont.
From
Previous
Page
Continued on Next Page
STEP 8: Rest the plastic inner wheel well on the
rear tire. Keep the trim and all the mounting hard-
ware together.
STEP 12: *CAUTION*
Before drilling, make sure that you are not going to
be drilling into any gas lines, brake lines, transmission
lines, electrical wiring, transfer case(4x4 vehicles) or
anything else that might cause a reduction in your
weekly pay. Always wear eye protection when
drilling.
With the use of a 1/2” drill bit and drill. Drill out the
floor at the impression on the wax square.
STEP 13: Remove the wax square sheets from the
mounting area.
STEP 14: Run speaker wire to the enclosure loca-
tion.
Also check the woofer for proper operation.
STEP 9: (Inside the vehicle) Cut and remove
the factory jute(sound deadening), from the
removed storage area, from STEP 5.
STEP 10: Place the supplied pair of wax sheets
into place.
Remember to remove the rear paper backing, from
the wax sheets.
SB - GM - H U M R2/1 2 W 6 v 2 , J L AUDIO, I n c 2 0 0 4 Sh e e t S K U # 0 1 1 1 8 2 Re v i s i o n 8 / 5 / 2 00 4 Page 2
w w w . j l a u d i o . c o m
➔ ➔
➔➔➔
STEP 15: Back out the socket cup set screws, that
was threaded in from STEP 11, to expose 1-1/4”.
Connect the speaker wire to the terminal and place
the enclosure into position.
STEP 19: With the spare tire rack placed into
position. Loosely tighten the lower factory bolts to
the lower mounting feet.
Cont.
From
Previous
Page
Continued on Next Page
STEP 16: (Outside the vehicle) Place the sup-
plied hardware in order onto the exposed socket
cup screw. If more exposed threads are needed, back
out the socket cup set screws.
*Do not back out too much, you can cause a
conflict when mounting the plastic inner
wheel well, back into location.*
Fender washer, flat washer, lock washer and hex nut
onto each socket cup set screw.
Secure tightly.
STEP 20: Placed A supplied spacer, between each
upper mounting foot of the spare tire rack and the
side panel.
Loosely secure each upper mount assembly with a
supplied hex cap screw.
STEP 21: Align the spare tire rack, for proper
positioning.
STEP 22: With the spare tire rack properly posi-
tioned, it should not interfere with the enclosure.
STEP 17: Mount the plastic inner wheel well and
plastic trim from STEPS 6 & 7.
You didn’t leave too much of the socket cup set
screws exposed, did you?
*STEPS 18-24 are for only for the vehicles
that are equip with the internal spare tire.*
STEP 18: The spare tire rack needs to be modi-
fied for the proper spacing,This needs to be accom-
plished on both bottom mounting feet.
Measure 9/16” from the center of the factory
mounting hole, back. Mark and drill with the a 1/2”
drill bit or Uni-bit®.
SB - GM - H U M R2/1 2 W 6 v 2 , J L AU D I O , I n c 2 0 0 4 Sh e e t S K U # 0 1 1 1 8 2 Re v i s i o n 8 / 5 / 2 00 4
Page 3
w w w . j l a u d i o . c o m
