Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.

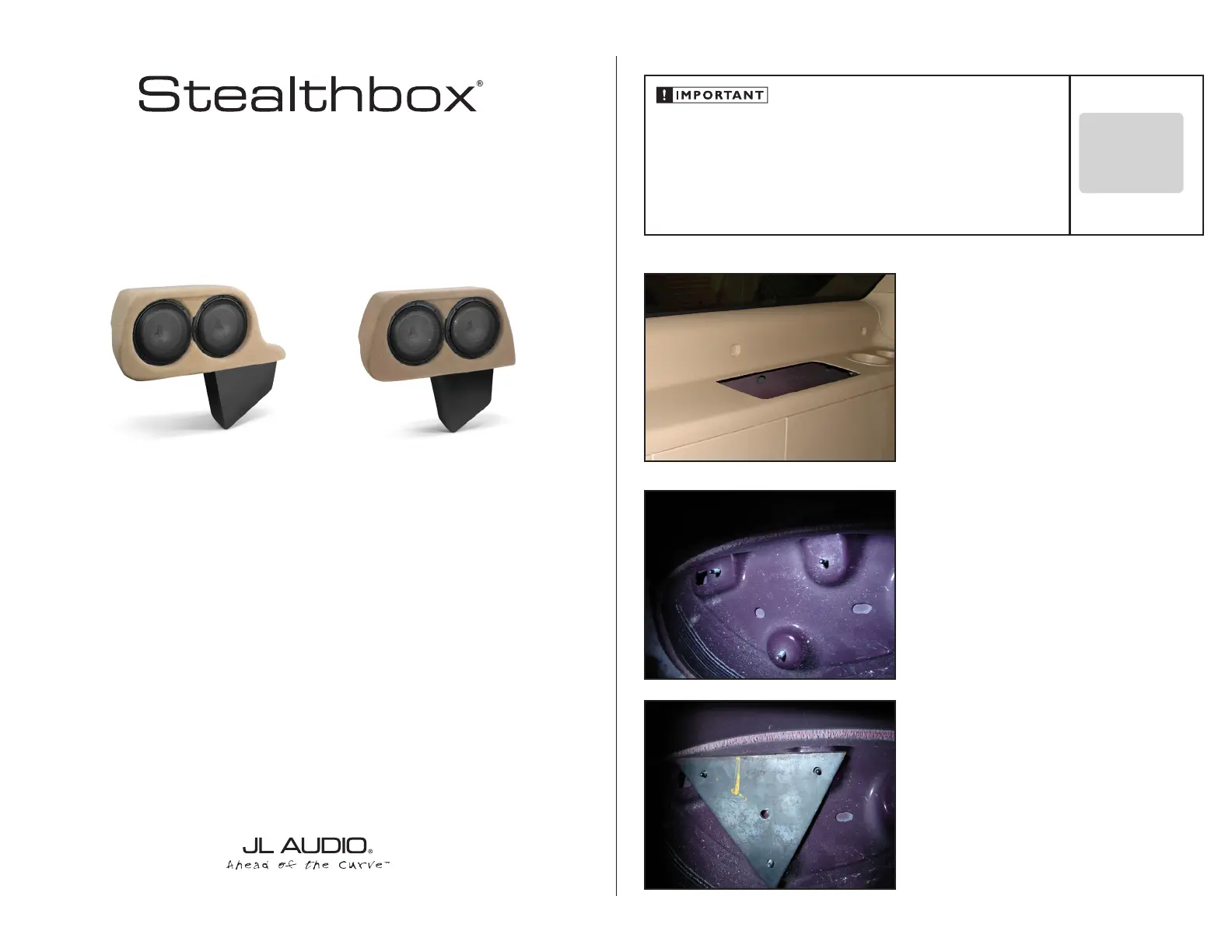

S T E P 1
These instructions are for both the short and long
wheelbase versions of this popular SUV.
Empty out the back of the vehicle so that you have a clean
area to work in.
Remove the pocket in the rear quarter interior trim panel on
the drivers side of the vehicle by pulling it up and out. The
wire to power the Stealthbox® needs to come from this open
area, now would be a good time to run that wire. Leave
enough extra to make it easy to make the connection to the
Stealthbox® before it is permanently mounted.
Continued on Next Page
S T E P 2
Looking down through the hole where the pocket had been,
notice the three studs installed at the factory. These studs
will be used to hold down the enclosure.
S T E P 3
The Triangular Plate will be positioned as shown with center
the hole closest to the stud pointing towards the center of
the vehicle..
SB-GM-ESC(ESV)/10W1v3 INSTR_SKU# 011303
INSTALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
2 HOURS
I N S T A L L A T I O N G U I D E
for the
SB-GM-ESCESV/10W1v3
SB-GM-ESC/10W1v3
SKU#94476-94479 & 94483-94486
2007-2013 Cadillac Escalade, Chevrolet Tahoe/Suburban, & GMC Yukon
OR
Continued on Next Page
SB-GM-ESC(ESV)/10W1v3 INSTR_SKU# 011303
S T E P 7
Remove the upper rear quarter window trim molding.
S T E P 6
Remove the two woofers from the Stealthbox® and, set it
into place, with the extension going into the previous pocket
location.
Inside the Stealthbox®, where the arrow points, use a small
marker to mark the interior panel where the hole in the
enclosure wall lies.
Remove the Stealthbox®
S T E P 5
Install the Triangular Plate as shown, tighten down the
fasteners that secure the Triangular Plate, leave only the large
Flat washer on top of the Hex nut, Split Lock Washer and
3/8-16 x 1-3/4” Hex Head Bolt. The remaining Flat Washer,
Split Lock Washer and Hex Nut will be installed inside the
enclosure.
S T E P 4
This is a side view of the Bracket shown in STEP 3 with the
included hardware shown for illustration purposes. Install
the 3/8-16 x 1-3/4” Hex Head Bolt through the Triangular
Plate as shown, tighten the Hex Nut that the arrow points
towards. The hardware shown to the left of the 3/8 x 2”
Fender Washer will be inside the Stealthbox® once the
installation is complete.
Page 2 • JL Audio, Inc 2014
S T E P 9
Drill the mark made in enlarge the hole to 1/2 inch. STEP 6,
****CAUTION****
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay.
Always wear eye protection when drilling!
S T E P 1 1
Bolt the bottom hole of the Custom Bracket to the rear
pillar through the hole where the wiring harness had been
secured (see STEP 8). Slide the supplied 3/8-16 Speed Nut
onto the Custom Bracket as shown, align the hole in the
Custom Bracket with the hole in the rear quarter trim panel.
S T E P 1 0
The 1/4” hardware will be installed in the order as shown as
the custom bracket is installed in the vehicle.
NOTE: The arrow points to the upper end of the bracket.
S T E P 8
The upper mount for the lift arm for the tailgate must be
disconnected as shown in order to remove the trim panel.
The wiring harness that runs along the rear pillar has a white
plastic plug (see arrow) that pushes through a hole in the
pillar to locate it. Pull the plug as this hole will be used to
secure the lower end of the Custom Bracket shown in
STEP 10.
SB-GM-ESC(ESV)/10W1v3 INSTR_SKU# 011303
S T E P 1 5
Install the mounting 3/8-16 x 1 3/4” Hex Head Bolt, Split Lock
Washer and Flat Washer through the enclosure wall into the
Speed Nut shown in STEP 11. Also install the Hex Nut, Split
Lock Washer and, Flat Washer on the stud that protrudes
into the bottom of the Stealthbox® from the Triangular
Plate installed in STEP 5. Re-install the woofers into the
Stealthbox®.
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®! Please refer to the Power
Recommendation section for an amplifier recommendation
and basic set-up help.
D E T A I L
One way to get the Hex Head Bolt and Flat Washer installed
from the inside of the rear pillar out is to tape them to a
wrench and then guide them through the recently drilled
hole. Once this hardware is in place, tighten all of the
hardware that secures the Custom Bracket in location. With
the Custom Bracket securely installed, replace the upper rear
quarter window trim molding that was removed in STEP 7.
Connect the speaker cables from the amplifier and set the
Stealthbox® in place.
S T E P 1 3
From inside the rear pillar, feed the 1/4-20 x 1” Hex Head Bolt
and 1/4” Flat Washer through the hole drilled in STEP 12 as
shown.
A suggestion on how to get the hardware through the hole
and held in place is shown below.
S T E P 1 2
With the bottom of the Custom Bracket bolted in and
aligned as described in drill a hole through the Step 11
pillar corresponding with the upper hole in the Custom
Bracket as shown.
****CAUTION****
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a
reduction in your weekly pay. Always wear eye
protection when drilling!
Page 3 • JL Audio, Inc 2014
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011303 08.10.2014 • Printed in USA • ©2010 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
1) Triangular Plate 1) Custom Bracket
4) 1/4” Flat Washer 3/8” Split Lock Washer3)
2) 1/4-20 x 1” Hex Head Bolt 1/4” Split Lock Washer2)
2) 3/8-16 x 1 3/4” Hex Head Bolt 3/8-16 Hex Nut2)
2) 1/4-20 Speed Nut 1/4-20 x 1” Hex Head Bolt2)
2) 3/8 x 1-1/4” Fender Washer 3/8 x 2” Fender Washer2)
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: (2) 10W1v3-4
Nominal Impedance: 4Ohms per woofer, 2Ohm final load
Continuous Power Handling: 600 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends high quality amplifiers such as the JL Audio HD900/5, 600/1v3, XD600/1 or JX 500/1. The
diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 600/1v3. If
another amplifier is being used, please reference this illustration and use similar settings on that amplifier.
All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.
C O N N E C T I O N S
Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XC-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CXi, C2-650x, C3-650, C5-650, C5-650x & ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Rear Door
Fits JL Audio Models: TR650-CXi, C2-650x, C3-650, C5-650, C5-650x & ZR650-CSi
