Stealthbox
I N S T A L L A T I O N G U I D E
SB - F -SU P D T Y/ 1 0 W Ø, J L AU D I O , I n c 2 0 0 3 Sh e e t S K U # 0 1 1 1 1 0 Revi s i o n 1 1 / 0 5 / 0 3Pag e 1
for the
SB-F-SUPRDTY/10WØ
(Fits ‘98-Up Standard, Super Cab &
Crew Cab with Front 40/20/40 Split
Bench Seat )
This Stealthbox is a product
which requires professional
installation skills and tools.
Please read this installation guide
thoroughly before beginning the
project. It will guide you step by
step through the installation. Several
of the steps in this process may
require two people to accomplish.
It is absolutely vital that the
enclosure be properly mounted to
the vehicle according to these
instructions. Failure to mount the
enclosure properly presents two
problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused
by the force exerted by the
woofer(s) and 2) A loose enclosure
presents a serious safety hazard in
the event of a collision or sudden
deceleration.
Please enjoy your JL Audi
Stealthbox™ responsibly.

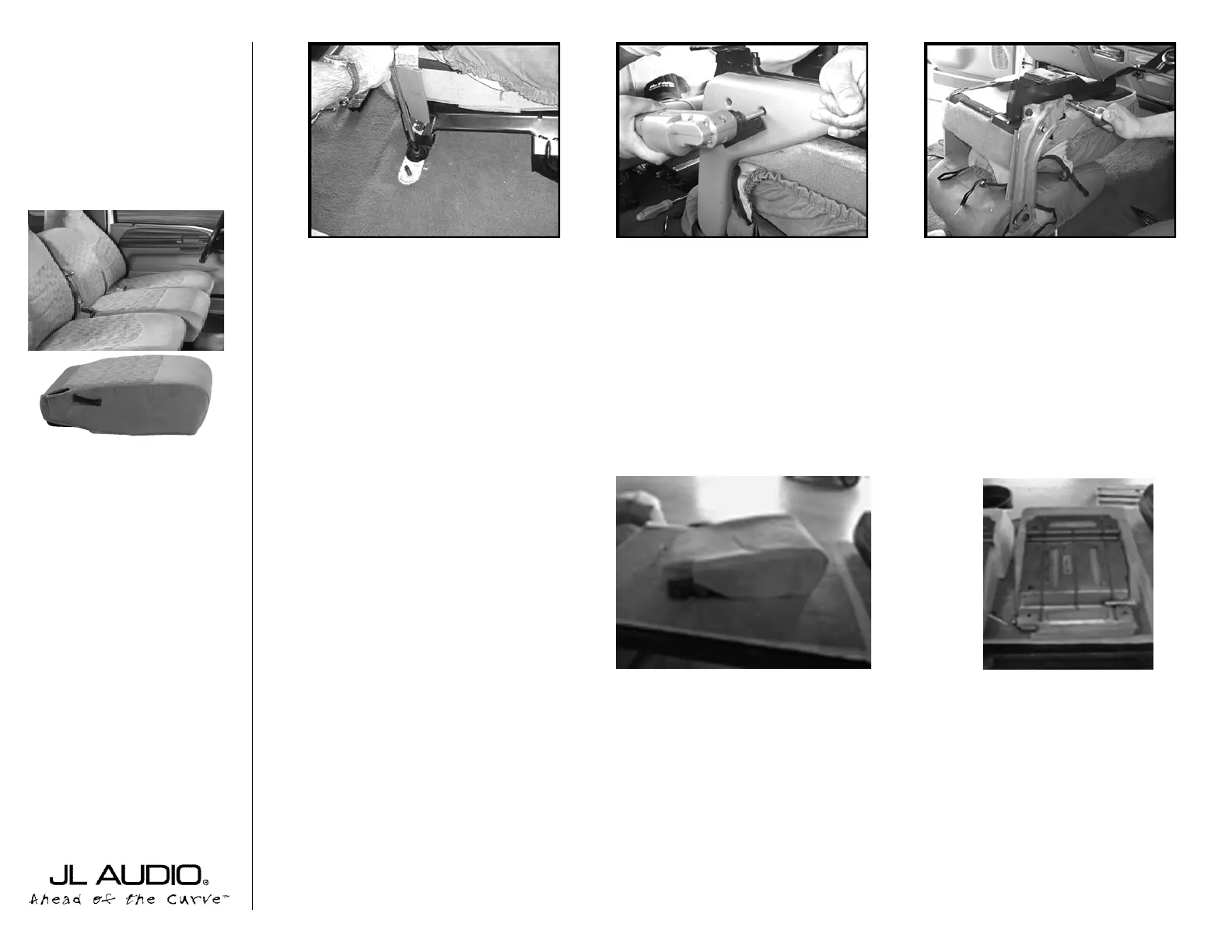

Step 1: Remove the 40/20/40 split front bench
seat from truck.
STEP 2:
Remove the side plastic panel from
armrest assembly.
STEP 3: Remove the floor seat brackets
from under the OEM center seat.
STEP 4:
Remove the center seat from the
armrest assembly, by removing the OEM bolts.
STEP 5: Once the seat is removed, peel off
the OEM center seat uphostry.
The OEM uphostery will be used to recover
the Stealthbox™, in later steps.
STEP 6:
There are two different cushions in
the 40/20/40 front bench seat.There are two
differnt instruction procedures for the differnt
style cushions.
This is the type 1 cushion.
START
HERE
Continued on Page 2
w w w . j l a u d i o . c o m
Look at the seating plate’s bottom
right corner.You will see a
moutning rod.
On the type 1 cushions, the
rod extends pass the side of the
plate.
➔ ➔
STEP 7: The drivers side of the Stealthbox
only has one threaded mounting insert.
*Important*
If you are working on a type 1 cushion, use
the supplied 3/4” spacer. If you are working on
a type 2 cushion, then use no spacer.
The spacers need to mount between the
Stealthbox™ and the armrest assembly.
Cont.
From
Page 1
Continued on Page 3
On the type 2 cushions, the rod
does not extends pass the side of
the plate.
STEP 9: Wrap the Stealthbox™ using the OEM
uphostry that was removed in STEP5.
To secure the OEM uphostry to the Stealthbox™, use
the supplied hook strips, apply one piece to each of the
front and rear flaps of the seat cover.The side flaps do
not need the strips.
Attach the loop strips to the Stealthbox™.
Make sure that hook and loops strips are lined up with
each other. If they are not lined up properly, the OEM
uphostry will not be secure to the Stealthbox™.
STEP 11: Attach the OEM floor seat brackets to
the Stealthbox™ using the factory bolts, that were
removed in STEP 3.
Be sure that the side OEM uphostry flaps are
tucked between the seat bracket and the
Stealthbox.
STEPS 9 & 10, require some patience.The
spacers and brackets must be aligned with
each other in addition to the aligning the bolt
holes.
STEP 8: The passenger’s side of the Stealthbox™
has a pair of threaded inserts. Use the supplied pair
of 7/8” spacers.
The spacers are going to mount between the
Stealthbox™ and the armrest assembly.
SB - F -SU P D T Y/ 1 0 W Ø, J L AU D I O, I n c 2 0 0 3 Sh e e t SK U # 0 1 1 1 1 0 Re v i s i o n 1 1 / 0 5 / 0 3Pag e 2
w w w . j l a u d i o . c o m
This is the type 2 cushion.
Notice that cushion type 2 has an upside down
pyramid shape towrds the front.
STEP 10: With the OEM uphostry
applied. Using the supplied 3/8” hex head
bolts, mount the armrest assembly to the
Stealthbox™.
*IMPORTANT*
Make sure that you are using the correct
supplied spacers on the correct side of the
Stealthbox™.The supplied bolts are to be
mounted through the spacers.
Specifications:
Enclosure Type: Acoustic Suspension (Sealed)
Driver Type: One JL AUDIO® 10WØ Subwoofer
Nominal Impedance: 4
Cont. Power Handling: 125 Watts
JL Audio recommends using a high quality amplifier such as the JLAudio® 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power the the Audio Stealthbox™.
Included Hardware:
(3) 3/8”-16x1x1/2” hex head bolts
(3) 3/8” split lock washer
(2) 3/4”x7/8”(L)x3/8”alum spacer
(1) 3/4”x3/4”(L)x3/8” alum spacer
(2) backing loop
(2) backing hook
10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111
The JL Audio 250/1 is a very versitile audio component. Please consult the owners manual for detailed information
about installing and tuning this amplifier.
➔ ➔
STEP 12: Run and attach speaker wire to the
Stealthbox™. Double check the woofer for proper
function.
STEP 13: Bolt the 40/20/40 split front bench seat
back into the truck using the OEM bolts, from
STEP 1.
Cont.
From
Page 3
SB - F -SU P D T Y/ 1 0 W Ø, J L AU D I O , I n c 2 0 0 3 Sh e e t S K U # 0 1 1 1 1 0 Re v i s i o n 1 1 / 0 5 / 0 3Pag e 3
w w w . j l a u d i o . c o m
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
XR570-CSi
TR570-CXi
Front Location Driver Size:
5”x7"
Applicable JL Audio® Products:
TR570-CXi, XR570-CSi or CXi
Rear Location Driver Size:
5”x7”
Applicable JL Audio® Products:
TR570-CXi, XR570-CXi
