I N S T A L L A T I O N G U I D E
for the
SB-F-EXPDEL/10W3v3
SKU# 94343
2007 - 2017 Ford Expedition EL (long wheel base)
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.

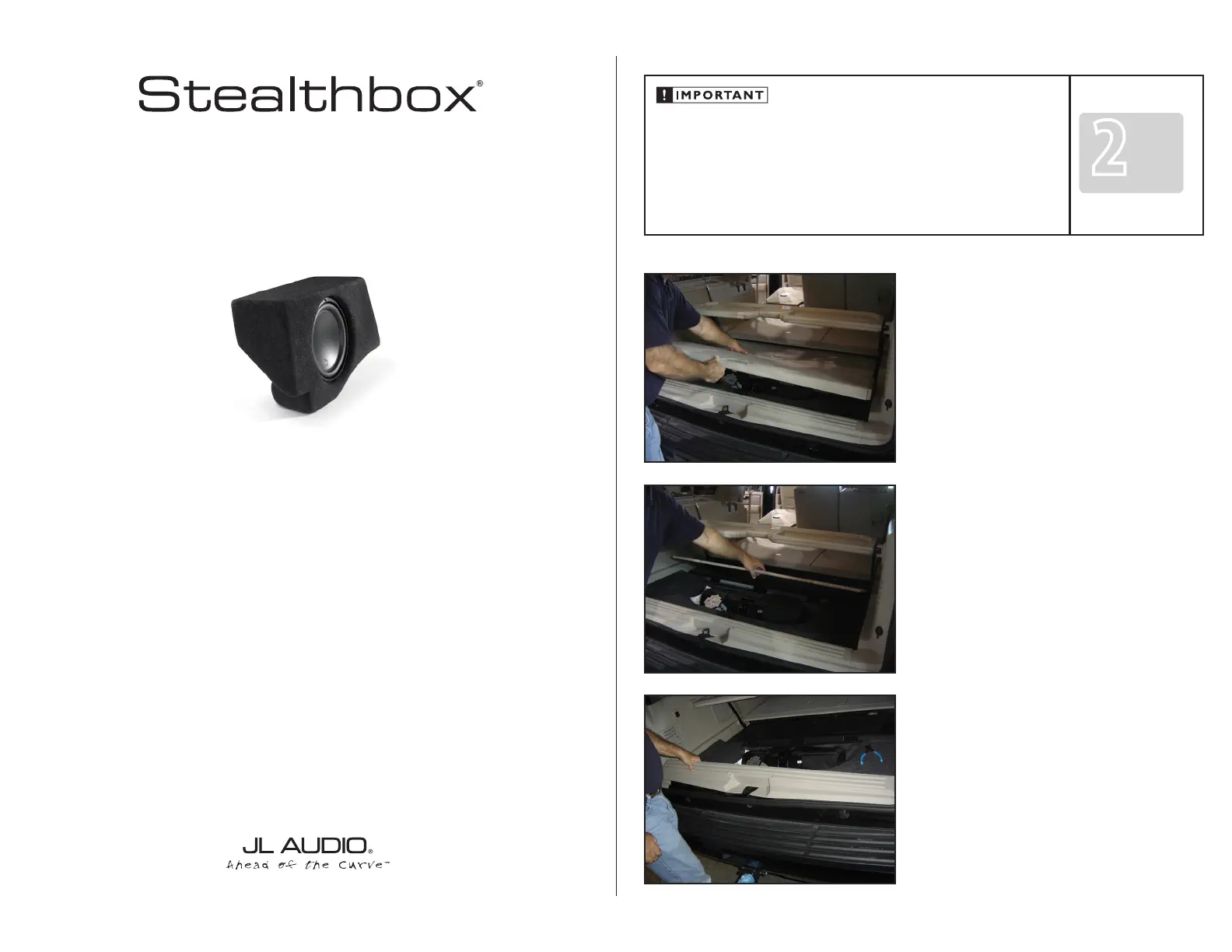

S T E P 1
Collapse the third row seating.
Bring the lift tray to the up positions.
Remove the rear most storage cover.
Continued on Next Page
S T E P 2
Remove the front storage cover
S T E P 3
Remove the tailgate’s lower sill plate.
SB-F-EXPDEL/10W3v3_INSTR_SKU#011237
INSTALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
12 HOURS
Continued on Next Page
SB-F-EXPDEL/10W3v3_INSTR_SKU#011237
S T E P 7
Pop out the seat belt trim panel from the side panel.
S T E P 6
Remove the access door from the driver’s side rear
cargo panel.
Unplug the power lift gate switch, from behind the side
panel.
S T E P 5
With an 8mm socket, remove the pair of bolts that secure
the lift tray to the floor.
Remove the lift tray from SUV.
S T E P 4
With an 8mm socket, remove the bolts that secure the
plastic storage bins to the floor.
Remove the plastic storage bins from SUV.
Page 2 • JL Audio, Inc 2017
S T E P 9
With a T-50 Torx socket, remove the bolt that secures the
driver’s side third row seat belt to the ceiling.
Remove the seat belt mount from the ceiling.
S T E P 1 1
With a T-50 Torx socket, remove the bolt that secures the
driver’s side second row seat belt to the C-pillar.
S T E P 1 0
With a T-50 Torx socket, remove the bolt that secures the
driver’s side second row seat belt to the floor.
S T E P 8
With a T-50 Torx socket, remove the bolt that secures the
driver’s side third row seat belt to the floor.
Continued on Next Page
SB-F-EXPDEL/10W3v3_INSTR_SKU#011237
S T E P 1 5
Remove the tailgate’s upper sill plate.
Remove the upper d-pillar plastic cover.
S T E P 1 4
Remove the driver’s rear door sill plate.
S T E P 1 3
Remove the upper C-pillar plastic cover.
S T E P 1 2
Pop out the circle cover that is located in the upper portion
of the C-pillar plastic cover.
With an 8mm socket, remove the bolt.
Page 3 • JL Audio, Inc 2017
S T E P 1 7
Pull the rear portion of the side panel from location. Feed the
third row seat belt through the opening of the side panel.
S T E P 1 9
Remove the side panel from the SUV.
S T E P 1 8
Pull the front portion of the side panel from location. Feed
the second row seat belt through the opening of the side
panel.
S T E P 1 6
With an 8mm socket, remove the bolt that secures the side
panel metal bracket to the floor.
