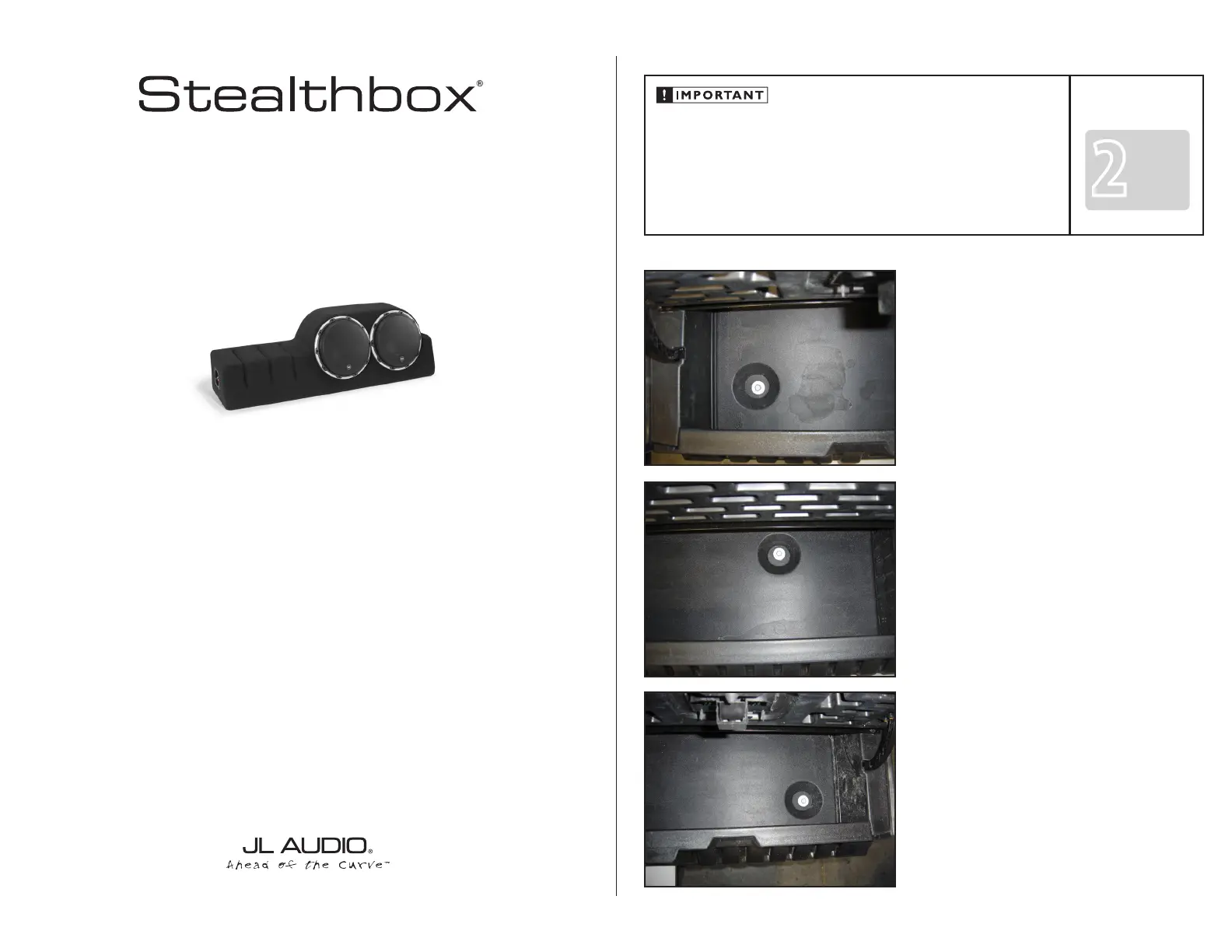

INSTALLATION
D I F F I C U L T Y :
I N S T A L L A T I O N G U I D E
for the
SB-D-MGACAB/10W6v3
2006 - Up Dodge Ram Mega Cab Trucks
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary
tools and experience to disassemble and reassemble your vehicle properly. Also, keep
in mind that your warranty coverage extends to two years if your system is installed
or approved by your authorized JL Audio dealer. If you prefer to perform your own
installation, please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove all contents from the rear seating area and fold
down the rear seating.
Open the storage unit that is located between the rear seat
and the rear wall. In this storage unit there is three bolts.
Remove the passenger side bolt.
Continued on Next Page
S T E P 2
Remove the middle bolt.
S T E P 3
Remove the driver’s side bolt.
Remove the storage unit out of the vehicle.
SB-D-MGACAB/10W6v3_INSTR_SKU# 011217
25
OUT
OF
S T E P 9
Place the Stealthbox® upside down on the folded rear seats.
Back out both socket cup set screws to expose 1-1/5".
With an 1/2" drill bit and drill. Drill through the floor at the
wax squares, using the impressions of the socket cup set
screw as a guide.
Once both holes have been drilled, remove both
wax sqaures.
S T E P 1 1
From under the vehicle, place the supplied fender washers, flat
washers, lock washers and then hex nuts onto each protruding
socket cup set screw and secure. Adjust the amount of
exposed thread on each cup set screw if necessary.
Note: For added protection, it is recommended that
you apply a bead of silicone between the vehicle
and the fender washer. After the bolt assembly is
tightly secured, it is also recommended that vehicle
under-coating material is applied to the exposed
assembly.
S T E P 1 0
Place the Stealthbox® into place. Carefully guiding the socket
cup set screws through the drilled holes.
Run speaker wire from the amplifier location to the enclosure
and attach to the terminal.
Check the woofers for proper operation.
Continued on Next Page
SB-D-MGACAB/10W6v3_INSTR_SKU# 011217
S T E P 7
Thread in the two supplied socket cup set screws to the
bottom of the Stealthbox®. Leaving about 1/4" exposed.
S T E P 6
The 31-3/4" measurement is starting from the middle of the
first wax square to the left, as seen in S T E P 5 & 6 .
Remove the paper backing from the second supplied wax
square. Apply this second wax square 31-3/4" to the left of
the first wax square.
S T E P 5
As in the picture, measure for the exact placement of the
wax square.
Remove the paper backing from one of the supplied wax
squares. Apply the wax square onto the flooring behind the
rear seating on the driver's side.
S T E P 4
Remove the driver’s and passenger’s side folding
floor extensions.
S T E P 8
Position the enclosure and press firmly down. This is to leave
an impression onto the wax squares.
Page 2 JL Audio, Inc 2014
4-inches
9-1/4-inches
9-1/4-inches
31-3/4-inches
31-3/4-inches
SB-D-MGACAB/10W6v3_INSTR_SKU# 011217
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 4
Use scissors to clean up the carpet’s edge.
Mount the folding floor extensions.
S T E P 1 3
The passenger’s side folding floor extension will only need to
be cut on the rear corner, drivers side.
If the folding floor extensions are to be retained, they will
need to be permanently modified, follow STEPS 12-14.
If they are not to be retained,
C O N G R A T U L A T I O N S
You have completed the installation for this model!
S T E P 1 2
The driver's side folding floor extension will need to be cut
across the entire rear section. As in the picture, use the metal
framing as a cutting guide.
Page 3 JL Audio, Inc 2014
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU#011217-8-20-2014 Printed in USA • ©2005 JL Audio, Inc. U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y M I R A M A R , F L O R I D A 3 3 0 2 5 U S A
I N C L U D E D H A R D W A R E
(2) 3/8-inch - 16 x 2-1/2-inch Socket Cup Screw 3/8-inch Hex Nut(2)
(2) 3/8-inch x 2-inch Fender Washer
(2) 3/8-inch USS Flat Washer
(2) 3/8-inch Split Lock Washer
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: Two 10W6v3-D4
Nominal Impedance: 4 ohms mono
Continuous Power Handling: 1200 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio HD750/1, HD1200/1& 1200/1V3
The diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 1200/1V3
when being used to power your Stealthbox ®.
The JL Audio 1200/1V3 is a very versatile audio component. Please consult the owners manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6 x 9 / Front Doors
Fits JL Audio Models: TR690-TXi & C2690tx
Rear Speaker Size / Location: 5.25-inch / Rear Door
Fits JL Audio Models: TR525-CXi, C2525x & C3525
1-1/2-inches
3-inches
