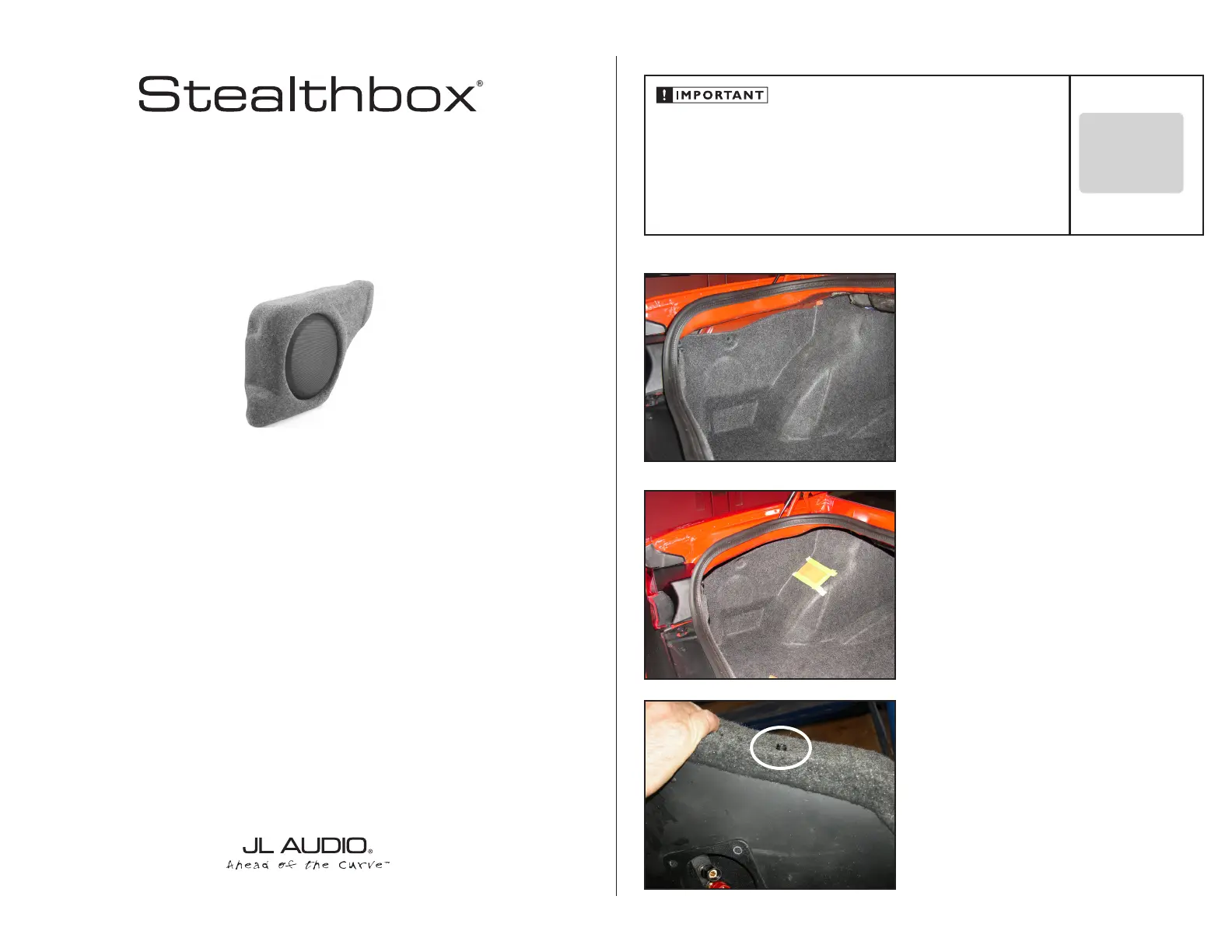

I N S T A L L A T I O N G U I D E
for the
SB-D-CLGR/12W3V3
SKU#94453
2009 & Up Dodge Challenger
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Clean the trunk out so that you have a good environment to
work in.
Continued on Next Page
S T E P 2
Place the 3” x 3” wax square as shown.
S T E P 3
Thread the included 3/8-16 x 2 1/4” Allen Head Set Screw
into the enclosure with the Allen socket facing out and
approximately 1/4” exposed as shown.
Set the enclosure in place, and press on the enclosure so
that the exposed Allen Head Set Screw marks the 3” x 3” Wax
Square.
SB-D-CLGR/12W3v3 INSTR_SKU# 011294
INS TALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
1 HOUR
D E T A I L
The hardware discussed in STEP 6 is detailed here. Re-install
the inner fender liner removed in put all of the stuff STEP 5,
you took out of the trunk in back in.STEP 1
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 6
Using an Allen Wrench, back the 3/8-16 x 2 1/4” Allen Head
Set Screw out of the Stealthbox® as shown, far enough so
that the 3/8 x 1 1/4” Fender Washer, 3/8” Split Lock Washer
and, 3/8-16 Hex Nut can be installed as shown in the DETAIL
below. You may want to hold the Allen Head Set Screw
using the Allen Wrench while tightening this hardware.
S T E P 5
Pull down the rear fender liner so that you have access to the
hole drilled in STEP 4.
Place the Stealthbox® into position, making sure that the
speaker cable is properly attached to the enclosure and that
the 3/8-16 x 2 1/4” Allen Head Set Screw comes through the
hole Drilled in STEP 4.
S T E P 4
Drill a 1/2” hole through the impression made in the 3” x 3”
Wax Square in towards the rear wheel.
*CAUTION*
Before drilling, always make sure that you are not
going to be drilling into any gas lines, brake lines,
tires, transmission lines, electrical wiring, exhaust
systems or anything else that might cause a reduction
in your weekly pay. Always wear eye protection when
drilling.
Page 2 • JL Audio, Inc 2015
SB-D-CLGR/12W3v3 INSTR_SKU# 011294
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011294 01.12.2016 • Printed in USA • ©2010 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479
#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
1) 3/8-16 x 2-1/4” Allen Head Set Screw 1) 3/8” Split Lock Washer
1) 3/8” x 1-1/4” Fender Washer 1) 3/8 -1 6 Hex Nut
1) 3” x 3” Wax Square 1) 3/8” Flat Washer
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 12W3v3-2
Nominal Impedance: 2 Ohms
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox ®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 3 1/2”- Dash / 6”x 9”- Front Doors
Fits JL Audio Models: TR350-CXi, C2-350x - Dash / TR690-TXi, C2-690tx - Doors
Rear Speaker Size / Location: 6 1/2”- Rear Deck
Fits JL Audio Models: TR650CXi, TR650CSi, C2-650x, C2-650, C3-650, C5-650x, C5-650, ZR650CSi
