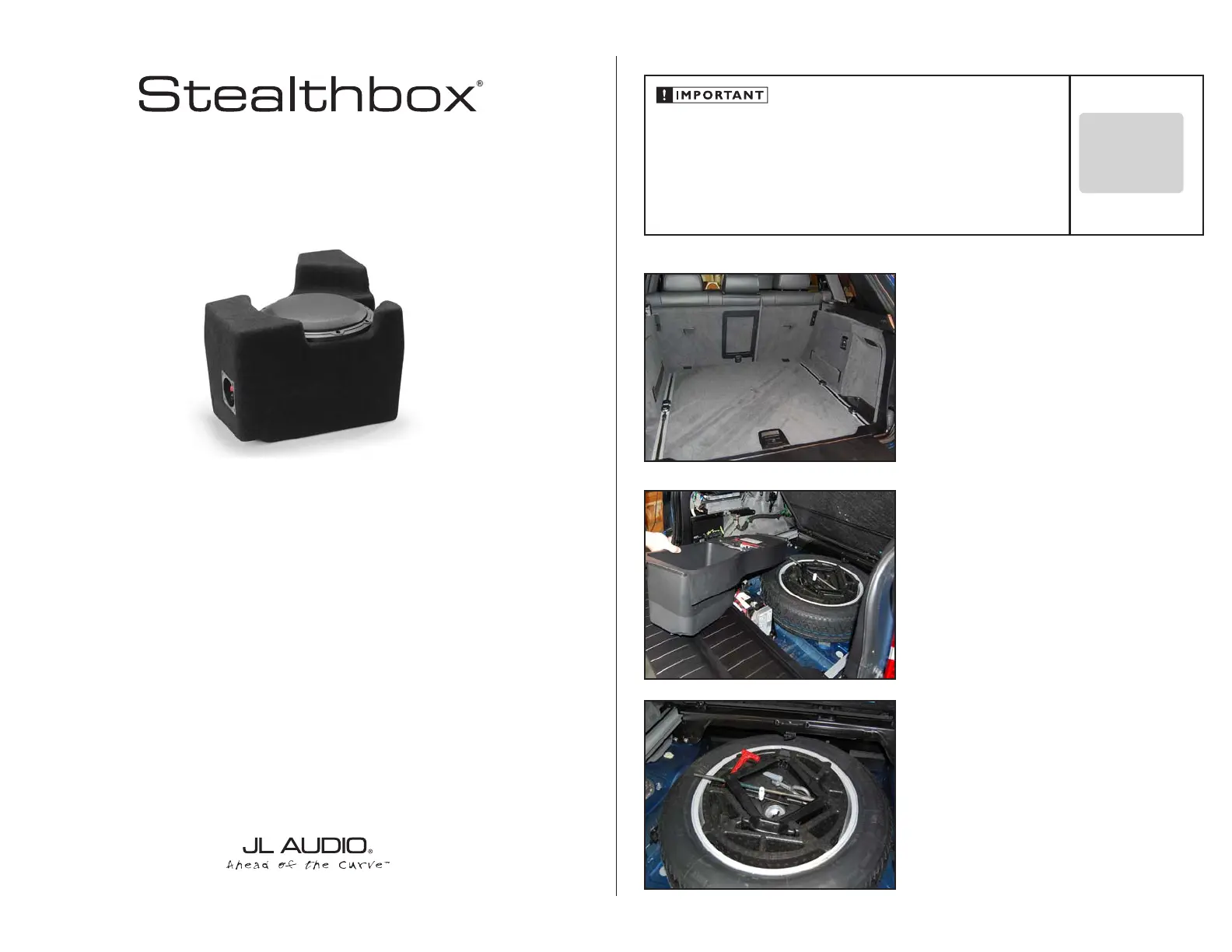

I N S T A L L A T I O N G U I D E
for the
SB-B-X5E70/10W3v3
SKU# 94517
2007 -Up BMW X5
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new
vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The
installation professionals employed by your dealer have the necessary tools and experience to disassemble and
reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is
installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read
this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Empty out the cargo area so that you have a clean area to
work in.
Continued on Next Page
S T E P 2
Remove the three screws on the battery cover, and remove
the cover. Remove the screws holding in the storage tray,
and remove the tray.
S T E P 3
The tools can be relocated to the foam tray inside the spare
tire.
SB-B-X5E70/10W3v3 INSTR_SKU# 011324
INSTALLATION
D I F F I C U L T Y :
25
OUT
OF
ESTIMATED TIME:
1 HOUR
Continued on Next Page
SB-B-X5E70/10W3v3 INSTR_SKU# 011324
S T E P 7
Remove the speed clip from the location indicated by the
left arrow, and relocate it to the location indicated by the
right arrow, as shown.
S T E P 6
Using a 1” hole saw, drill a hole at the intersection, and slide
a U-Nut through the driled hole, aligning it with the factory
hole, as shown.
S T E P 5
Note: are only necessary on vehicles not Steps 5-6
equipped with the factory bracket shown in Step 4.
Locate the two holes in the floor, and mark their
perpindicular intersection, as shown.
S T E P 4
Remove the nut from the factory bracket, as shown. Retain
the nut for use in Step 10.
If this factory bracket isn’t present, substitute Steps 5-6.
Page 2 • JL Audio, Inc 2011
S T E P 9
Using a pair of 1/4” - 20 x 1” Bolts, 1/4” Lock Washers, and 1/4”
Flat Washers, attach the Side Bracket to the Stealthbox® as
shown, and hand tighten.
S T E P 8
Pictured is the included hardware, along with the factory nut
removed from Step 4.
S T E P 1 0
Attach speaker cable to the Stealtbhox®, and place the
enclosure into position, aligning the hole in the Side Bracket
with the factory bolt, as shown. Secure the Side Bracket to
the floor using the factory nut removed in Step 4.
On vehicles not equipped with the factory bracket and bolt,
secure the Side Bracket to the U-Nut installed in Step 6
using a ****.
S T E P 1 1
Slide the Stealthbox® as far back toward the rear of the
vehicle as possilbe. Using an open-ended wrench, tighten
the two 1/4” - 20 x 1” to secure the Side Bracket to the
Stealthbox®.
Continued on Next Page
SB-B-X5E70/10W3v3 INSTR_SKU# 011324
Page 3 • JL Audio, Inc 2011
S T E P 1 4
Cut the Foam Tape into three 4” strips, affix them to the new
Battery Cover, and trim away the excess, as shown.
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 5
Secure the Battery Cover using the three #8 x 1” Screws.
S T E P 1 3
Secure the Top Bracket to the Stealtbox® and to the rail using
a pair of 1/4” - 20 x 1” Bolts, 1/4” Lock Washers, and 1/4” Flat
Washers.
S T E P 1 2
Slide a U-Nut over the factory hole in the rail, as shown.
