Seite 1/73

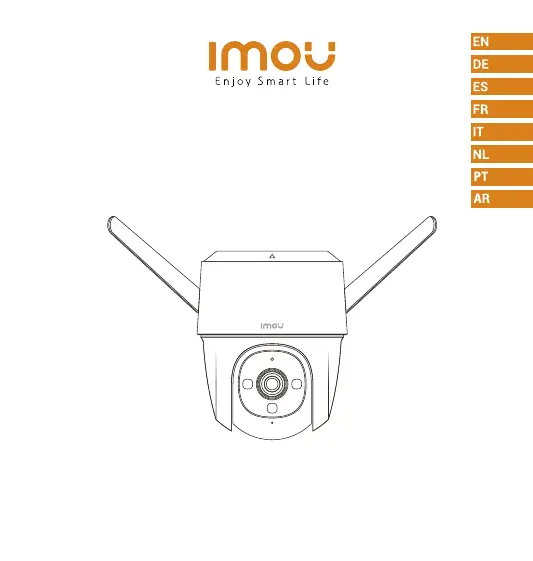

Quick Start Guide
www.imoulife.com
Cruiser
Welcome
Thank you for choosing IMOU.
We are devoted to providing you easy smart home products.
If you have problems using the product, please contact
our service team before returning your product.
Our service mail: service.global@imoulife.com
Frequently asked questions can be found at
imoulife.com/support/help
Note:
Package content
Camera introduction
Mounting
Template ×1
Camera ×1 Quick Start Guide ×1 1Screw Package ×Power Ad pter a ×1
Waterproof
Connector ×1
Mounting Bracket ×1
Lens
IR
LED Indicator
Spotlight
Reset Button
Micro SD Card Slot
Ethernet Port
Power
Wi-Fi Antenna
Disconnect the camera from the power before installation or taking out its SD card.
Infrared LED
Microphone
Tips
i
To ensure the best possible wireless performance, please make sure there are no obstacles and
electromagnetic interference between the camera and router.
Windows
Imo Lifu e
1
Download the APP
Note:
Make sure that the mounting surface is strong enough to hold at least three
times the weight of the camera and the bracket.
Setup
WIFI Name
Password
Next
Setup
Done
2
3
Installing Camera
Ceiling Mount
Camera
Mounting Screw
Mounting Bracket
Mounting Template
(U-shaped)
Wall Anchor
Mounting Surface
1
2
3
Add device to the APP
1
2
3
4
Thread the hoop through the mounting holes on the bracket, then attach the
bracket to the pole.
Align on the top of the camera with on the bracket, then t the two parts
together.
Rotate the camera counterclockwise until it is locked. Make sure align with .
Power on the camera and then adjust its angle properly.
Camera
1
3
2
Pole Mount
Mounting Bracket
Hoop
Note:
1. Make sure that the pole is strong enough to hold at least three times the
weight of the camera and the bracket.
2. The hoops are not provided. Please prepare them in advance.
+60
-30
DC
12V1A
Rotate the camera counterclockwise until it is locked. Make sure align with .
Power on the camera and then adjust its angle properly.
5
6
Troubleshooting
How to connect the
camera to another Wi-Fi
network?
• Check the LED indicator status. If the light is not in green, press and
hold the reset button for 10 s to reset the camera.
• If you have activated the cloud storage and installed a micro SD card, \
the recordings will be both saved to the card and cloud. If the cloud
storage is deactivated, the recordings are saved to the SD card. Videos
recorded during live view or playback is saved on your phone.
Check the indicator status:
• Solid green: Check whether the router can connect to the Internet. If
the network is connected, restart the camera.
• Flashing red: Reset the camera, and then congure the camera again.
• Solid red: The camera is faulty.
• If the camera is online, select to Device Details > Network Cong
change the Wi-Fi connection on the app.
• If the camera is oine, reset the camera, and then congure the
camera again.
• Check if the distance between the camera and the router, and that
between the camera and the smart phone is both within 5 m (16.4 ft)
during the connection.
• Check the Wi-Fi conguration of the router: Select the channel to auto,
and the mode to 11bgn mixed.
• When the micro SD card is full, the system will overwrite the previous
recorded videos. Save the important information in time.
The device cannot boot
up or work as expected?
Connection takes too long?
When the micro SD card
is full, how is the recorded
video saved?
Where are the recorded
videos saved?
The device is oine?
Question Answer
Kurzanleitung
www.imoulife.com
Cruiser
Packungsinhalt
Einführung in die Kamera
Montageschablone ×1
Kamera ×1 Kurzanleitung ×1 Schrauben und
be ×1
Netzteil ×1
Wasserdichter
Anschluss ×1
Montagehalterung ×1
Objektiv
IR
LED-Anzeige
Scheinwerfer
Infrarot-LED
Mikrofon
cksetztaste
MicroSD-
Kartensteckplatz
Ethernet-
Anschluss
Wi-Fi Antenne
Trennen Sie die Kamera von der Stromversorgung, bevor Sie die SD-Karte
einsetzen oder herausnehmen.
Hinweis:
Netzteil
1. Halten Sie die Rücksetz-/Kopplungstaste 10 Sekunden lang gedrückt, um
die Kamera zurückzusetzen.
2. Drücken Sie zweimal die Reset-Taste, um den Hotspot der Kamera zu
aktivieren.
Hinweis:
Informationen zur Bedeutung der LED-Signale entnehmen Sie bitte der
folgenden Tabelle.
LED-Anzeigestatus
Gerätestatus
Kopplung fehlgeschlagen
Bereit zur Netzwerkkonguration
Gerät/LED ausgeschaltet
Gerät fährt nach Rücksetzung hoch
Aus
Rot leuchtend
Rot blinkend
Grün blinkend
Grün leuchtend
Abwechselnd grün und rot blinkend
Ordnungsgemäßer Betrieb
Firmware wird aktualisiert
Bereit zum Koppeln
Gerät fährt hoch
Gerätestörung
Netzwerkverbindung fehlgeschlagen
Lautsprecher


Produktspezifikationen
